King Tech 1200N Automatic Roller Door Opener with 4 Remotes, 22m²

The King Tech 1200N Automatic Roller Door Opener is a quiet, powerful garage motor built for roller doors up to 22 m² or 120 kg. With soft start and soft stop motion, an automatic safety reverse system and a whisper-quiet 24 V DC motor, it delivers smooth, reliable operation day and night.

Key Features

• 1200 N lifting force handles heavy roller doors up to 22 m²
• Whisper-quiet drive for early mornings and late nights
• Soft start and soft stop protect the motor and door hardware

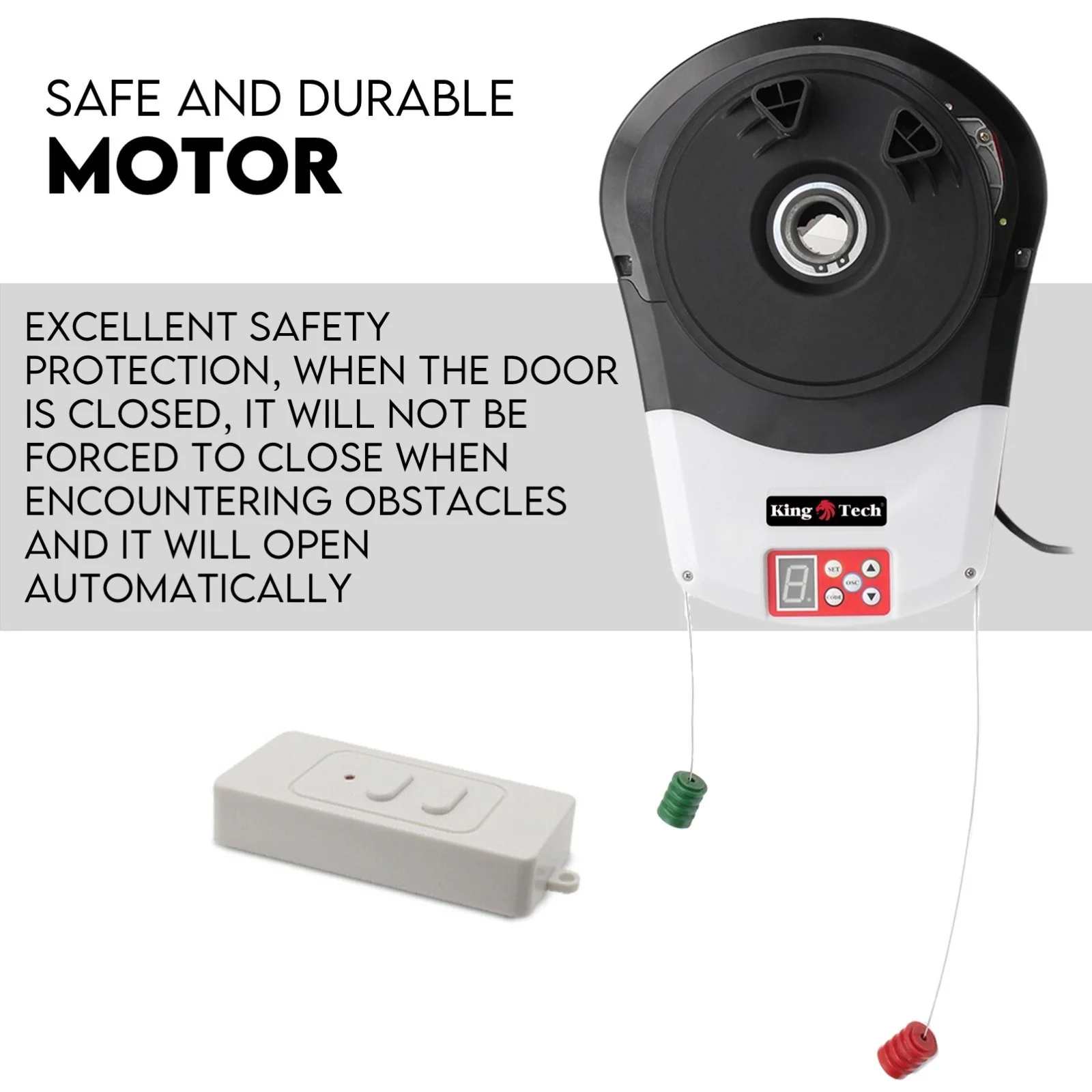

• Automatic safety reverse stops and retracts on obstruction
• LED courtesy light illuminates the entry for added safety

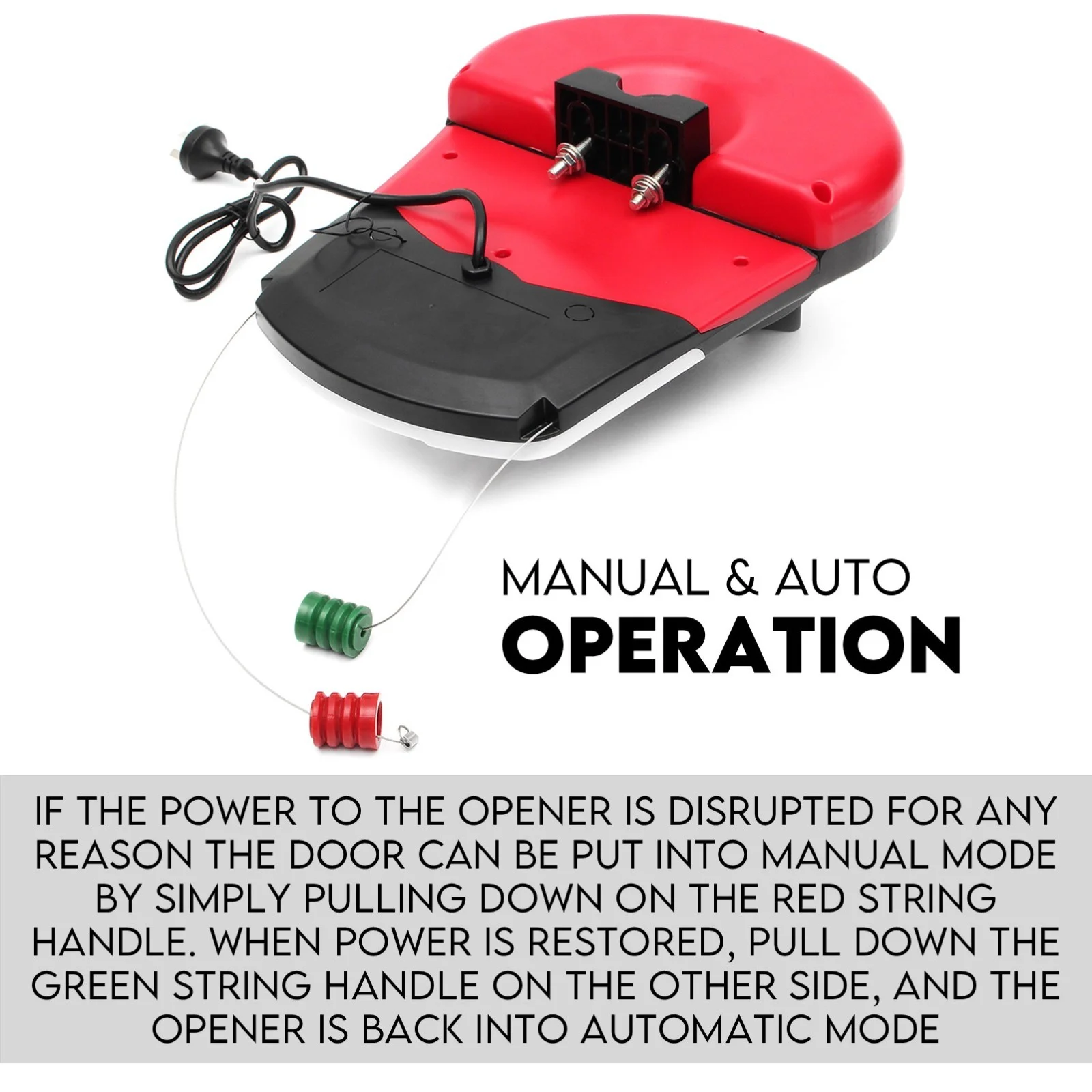

• Manual release handle allows operation during power loss
• Left or right side mounting for flexible installation
• Electronic power stabiliser keeps performance consistent

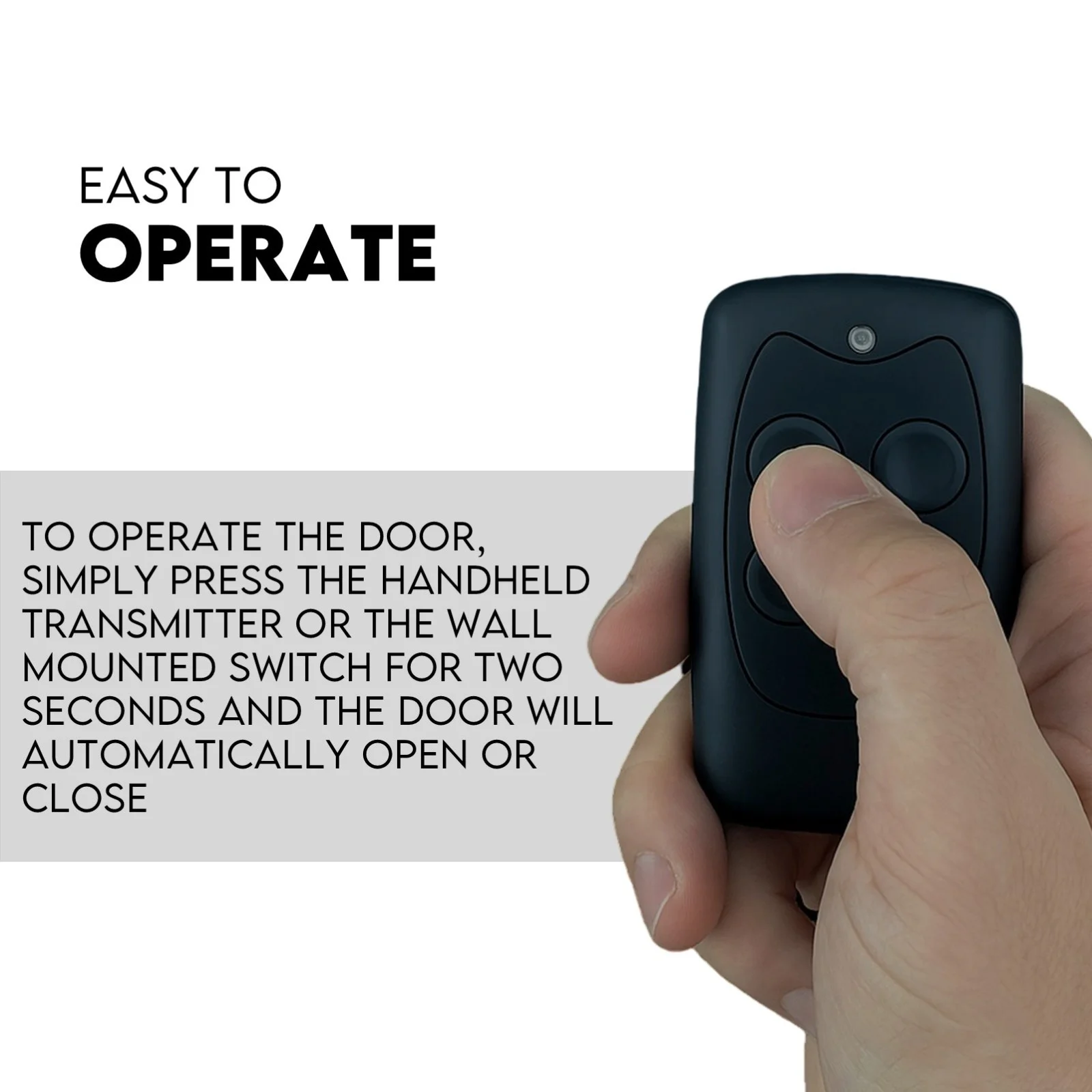

• Four remote controls plus a wireless wall button included
• Long-range 50 m remote reach for convenient access
• Durable 24 V DC motor runs cool and lasts longer
• Low-vibration design, permanently lubricated and built tough

Specifications

• Maximum lifting force: 1200 N
• Input power: 240 V AC, 50–60 Hz
• Motor voltage and type: 24 V DC
• Maximum door area: up to 22 m²
• Maximum door height: up to 6 m
• Maximum door weight: 120 kg
• Control range: up to 50 m
• Unit weight: 6 kg
• Mounting position: left or right side
• Remote power supply: A27 12 V battery
• Weight balancing bars not included

What's in the Box

• 4 × remote controls
• 1 × wireless wall button
• 1 × user manual

Installation Clearances

Minimum clearances for your garage setup:

• Distance between the edge of the door curtain and the inside of the bracket: at least 85 mm
• Distance between the edge of the door curtain and the outside of the bracket: at least 135 mm

Recommended side clearances for an optimal installation:

• Distance between the edge of the door curtain and the inside of the bracket: more than 110 mm
• Distance between the edge of the door curtain and the outside of the bracket: more than 160 mm
