Della Francesca 100cm Frameless Diamond Shower Screen with Nickel U-Brackets, SS Hinges & Square Knob Handle

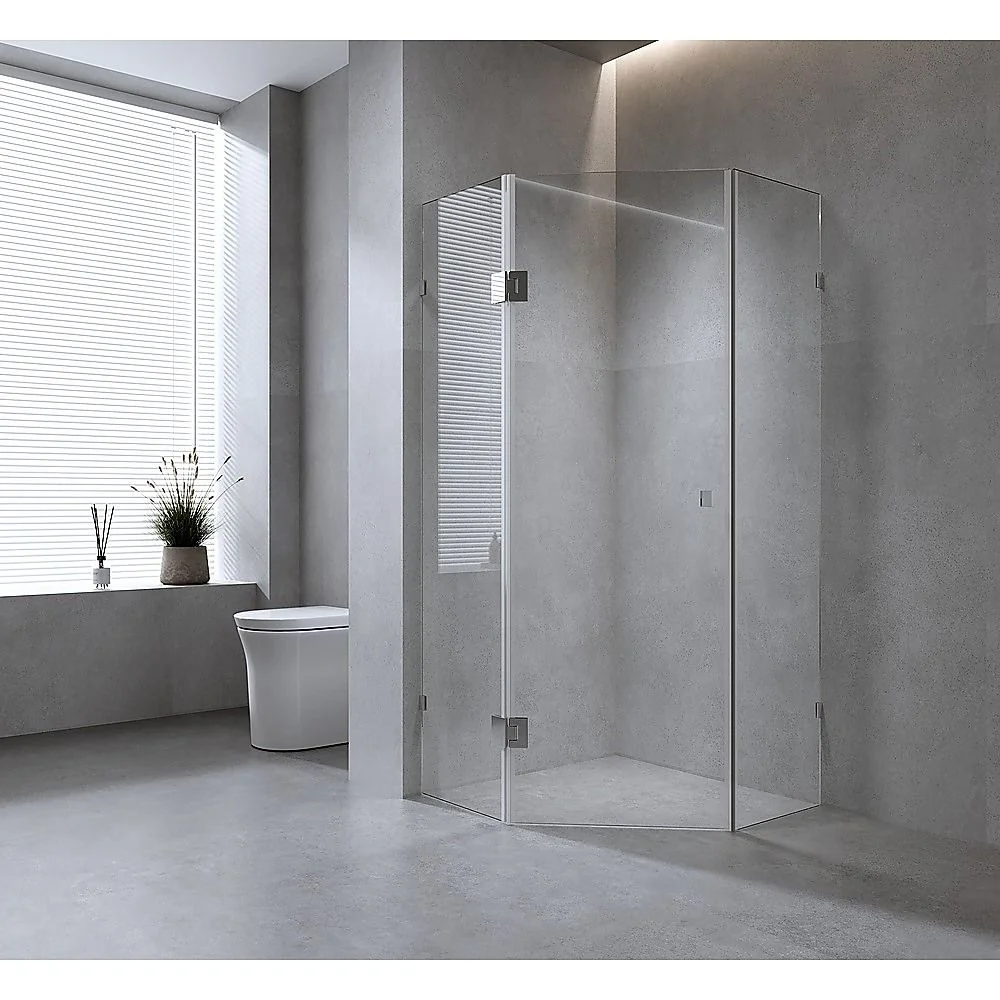

The Della Francesca 100cm Frameless Diamond Shower Screen brings a striking diamond corner configuration to your bathroom, complete with stainless steel hinges, a brass square knob handle and brushed nickel U-brackets. Its frameless design and tempered safety glass deliver a sleek, modern look while keeping your shower space open and easy to maintain.

Key Features

• Diamond corner configuration creates visual interest while maximising usable shower space
• Frameless design eliminates hard-to-clean channels and corners
• Tempered safety glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25° position and centre within 25°
• Solid brass square knob handle with a smooth brushed nickel finish, resistant to rust and corrosion
• Handle includes plastic gaskets for added protection of the shower door
• Glass-to-wall or floor U-brackets with concealed fixing design for a clean, streamlined finish
• U-brackets require no glass drilling, secured by two compression/friction screws
• Slimline 2mm rear wall on brackets minimises the gap between wall and glass for a neater silicone joint

Specifications

• Size: 100cm
• Colour: Nickel
• Bracket type: U-Brackets
• Handle type: Square Knob
• Glass thickness: 10mm

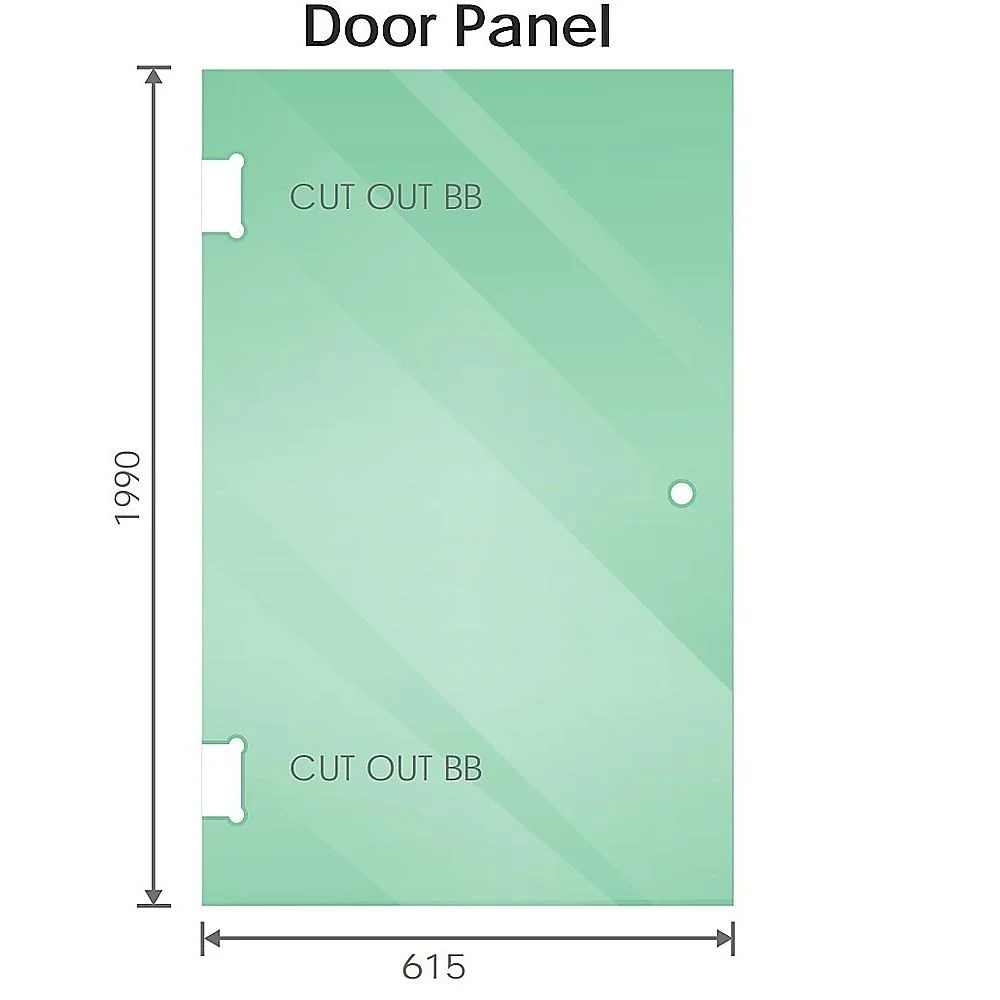

• Door panel: 615 x 1990mm

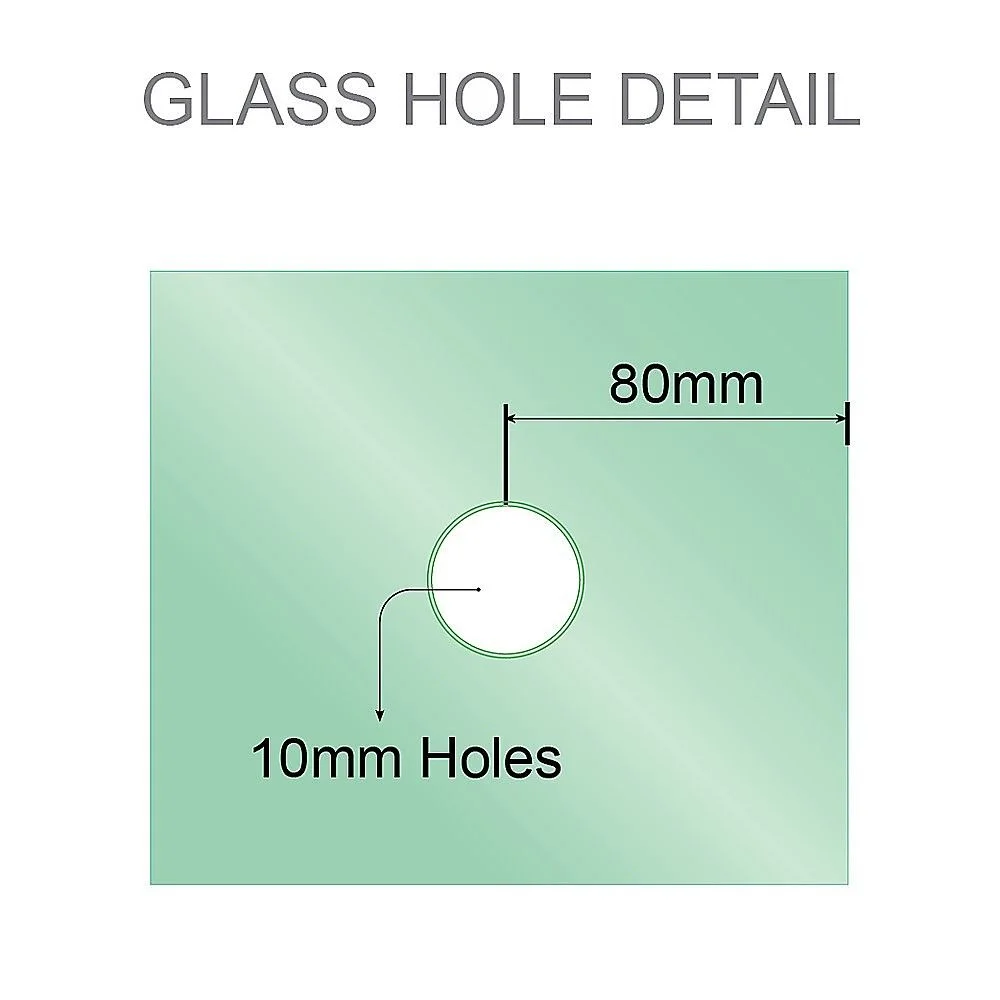

• Door handle hole: 10mm

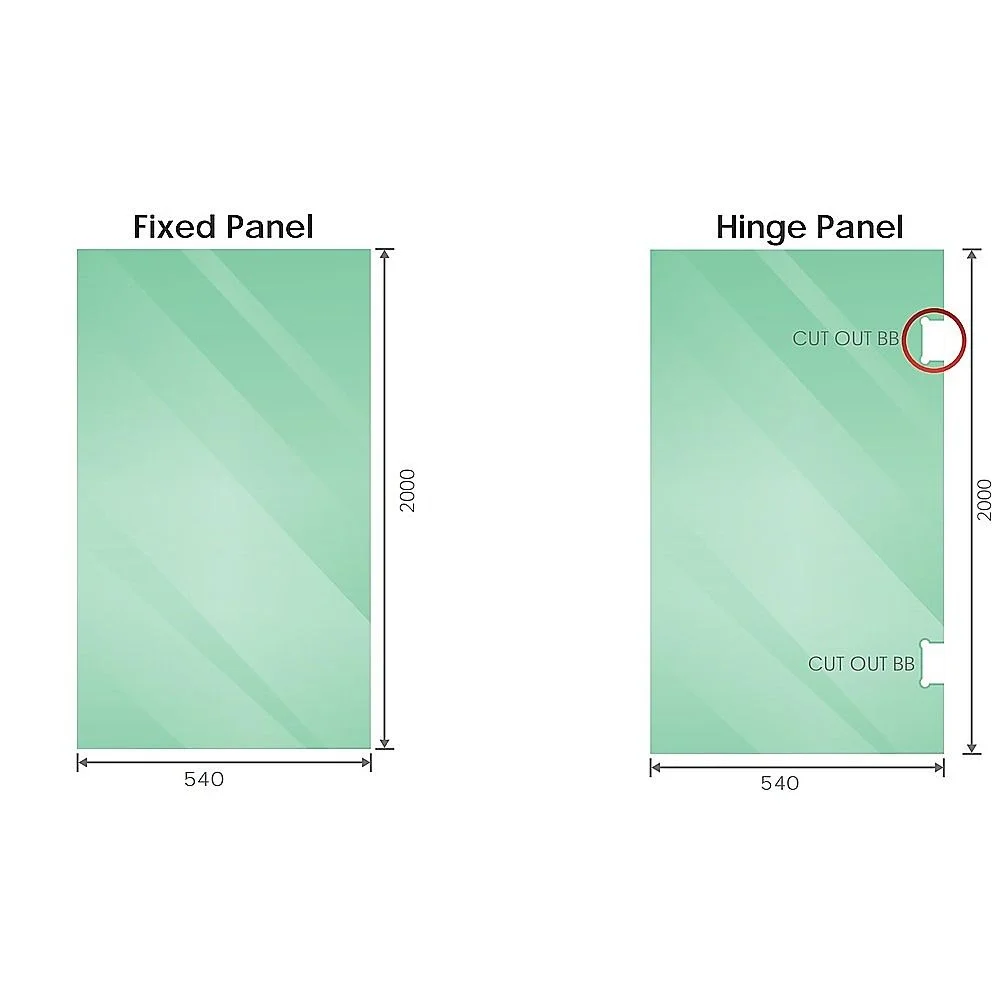

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

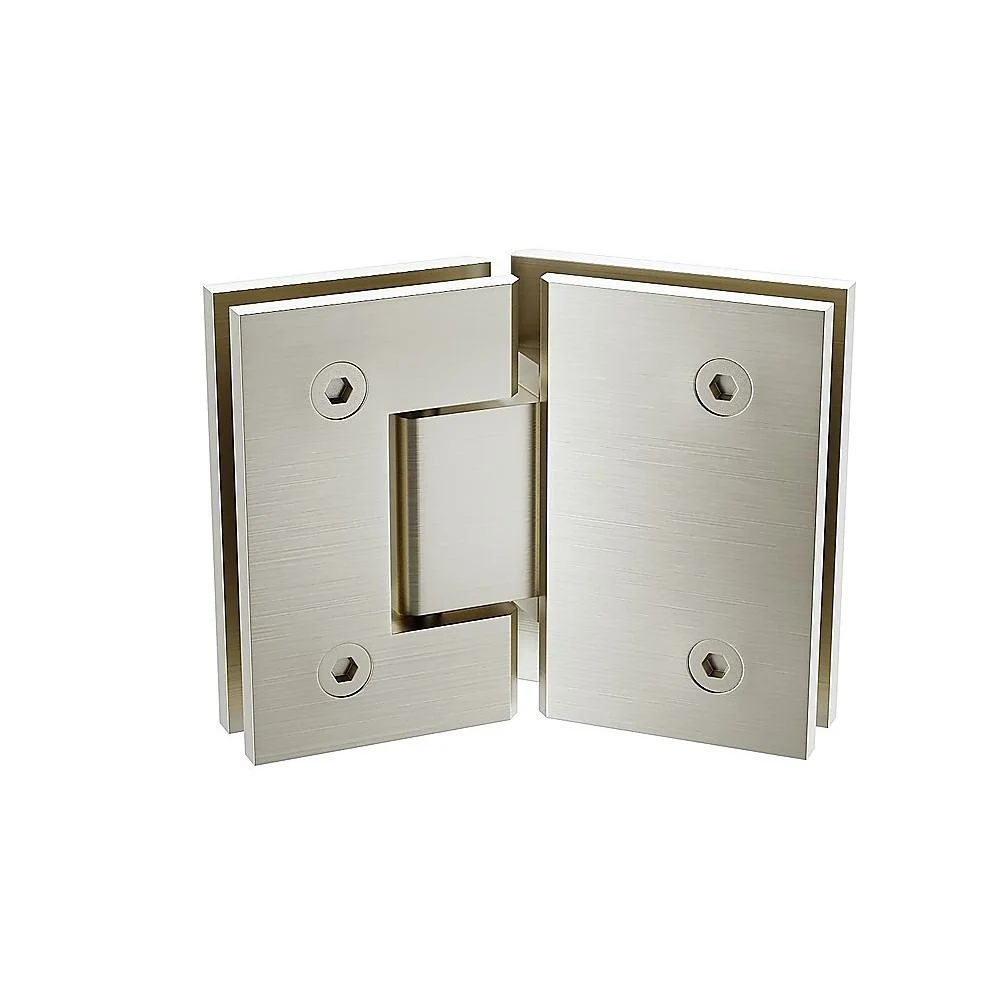

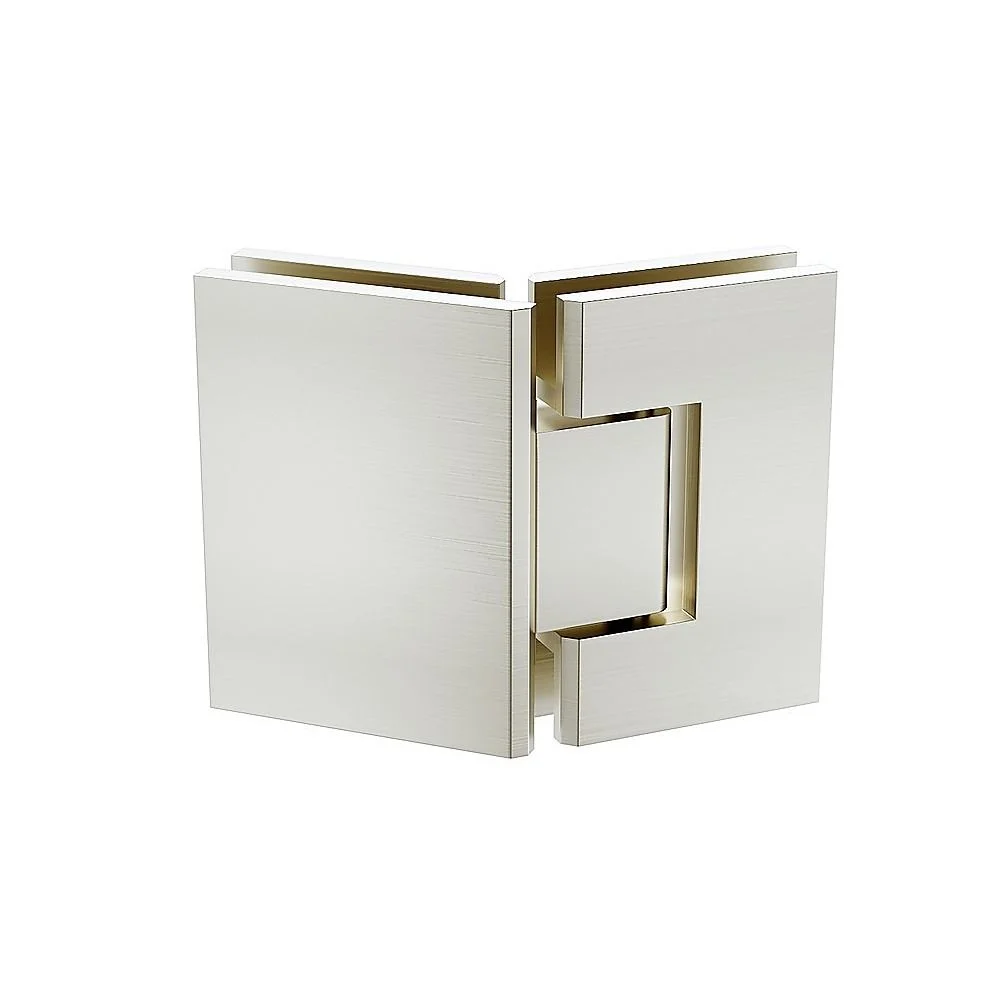

• Hinge: 135° glass-to-glass, stainless steel, brushed nickel, for 10mm glass, maximum weight 45kg

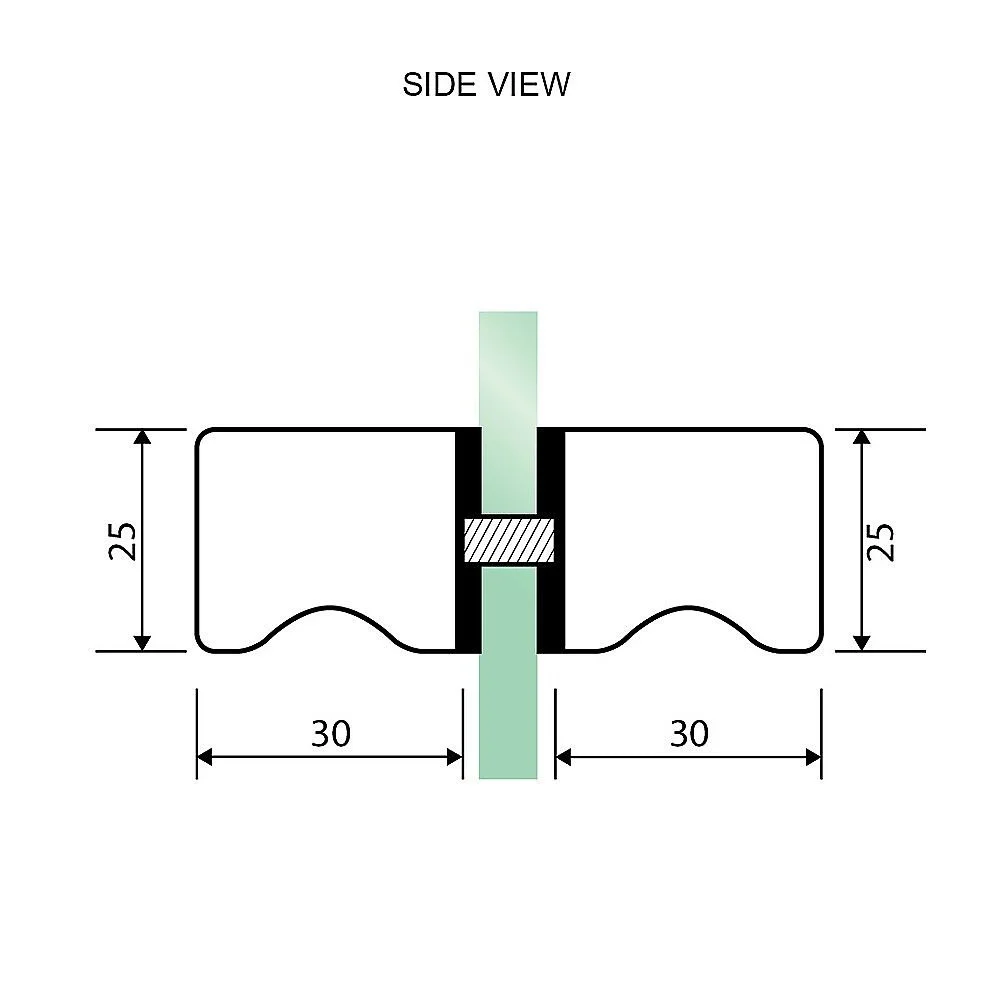

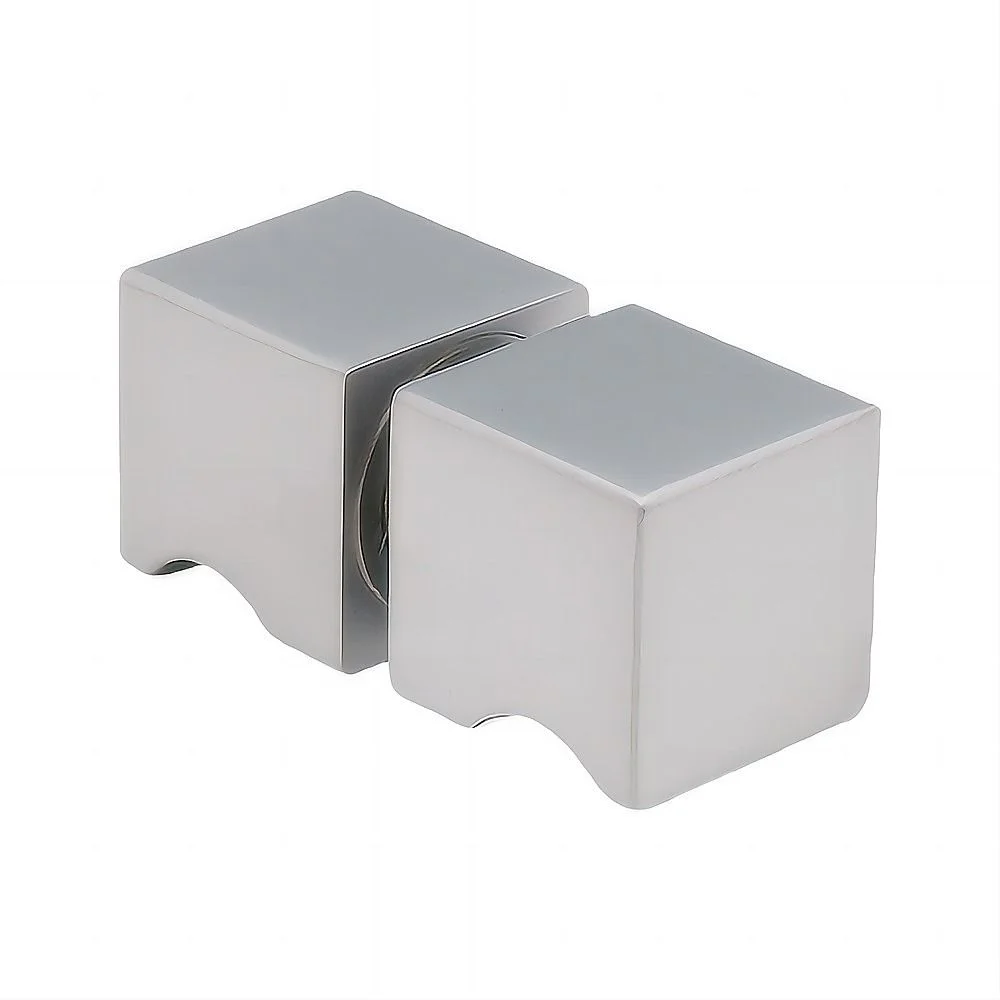

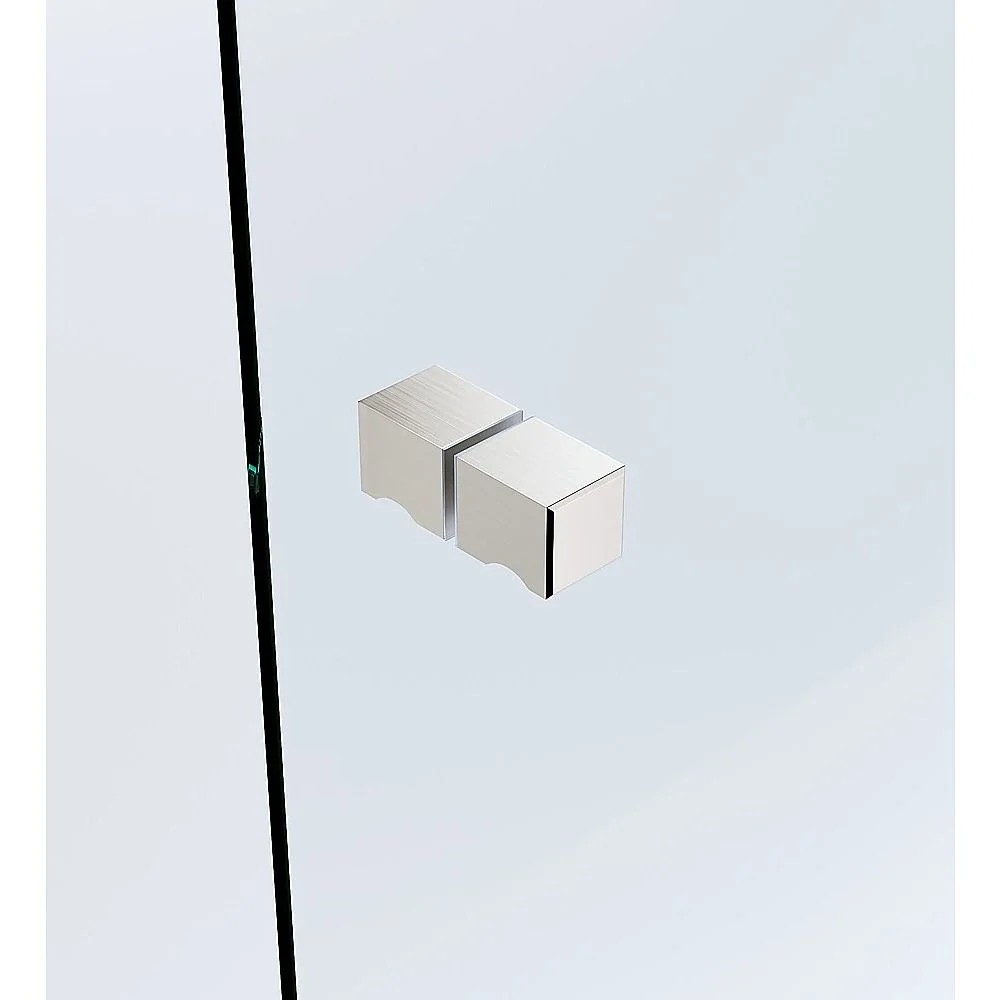

• Handle: 25mm square knob, solid brass, brushed nickel, suits 6mm, 8mm, 10mm and 12mm thick glass

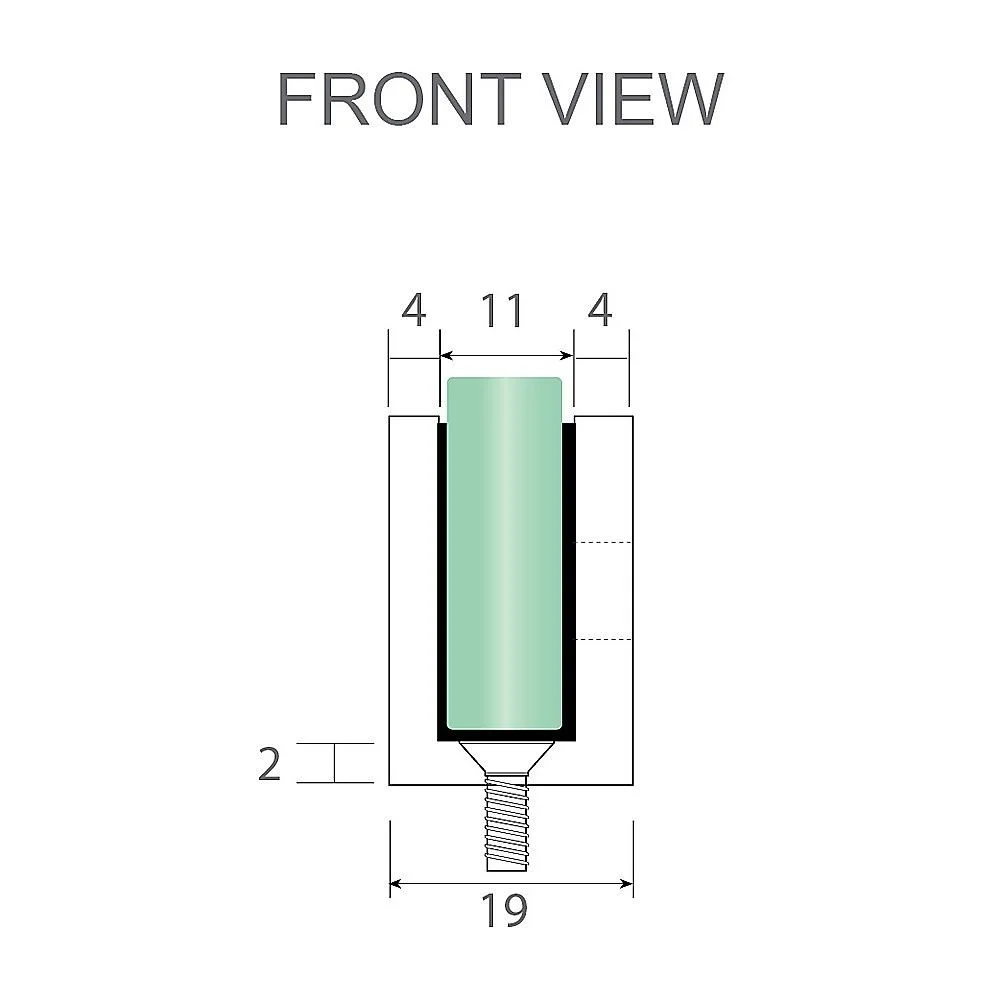

• U-bracket: solid brass, brushed nickel, suitable for 10mm glass, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed panel (540 x 2000mm)
• 1 x 540mm clear glass hinged panel (540 x 2000mm)
• 1 x 135° glass-to-glass stainless steel square shower hinge in brushed nickel
• 1 x 25mm brass square shower door handle in brushed nickel
• 4 x 10mm glass-to-wall/floor U-brackets in brushed nickel

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories and colours specified above are included.
