Della Francesca 100cm Frameless Diamond Shower Screen White U-Brackets

The Della Francesca 100cm frameless diamond shower screen brings a distinctive diamond corner configuration to your bathroom, creating an elegant centrepiece while maximising usable shower space. Crafted from 10mm tempered safety glass with matte white hardware, it delivers a sleek, modern look that suits any style.

Key Features

• Diamond corner configuration adds architectural flair while optimising shower space
• Frameless design eliminates hard-to-clean channels and corners
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from a 25-degree position and swing 67.5 degrees in both directions

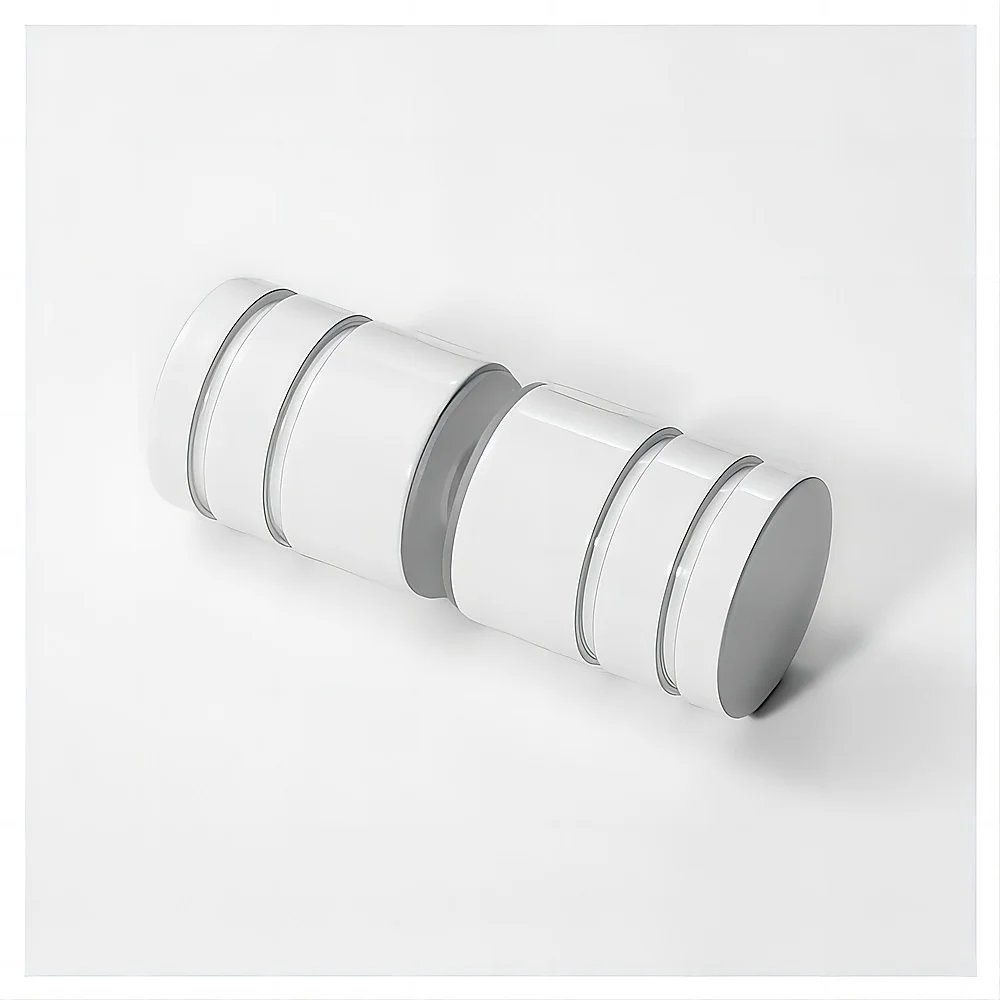

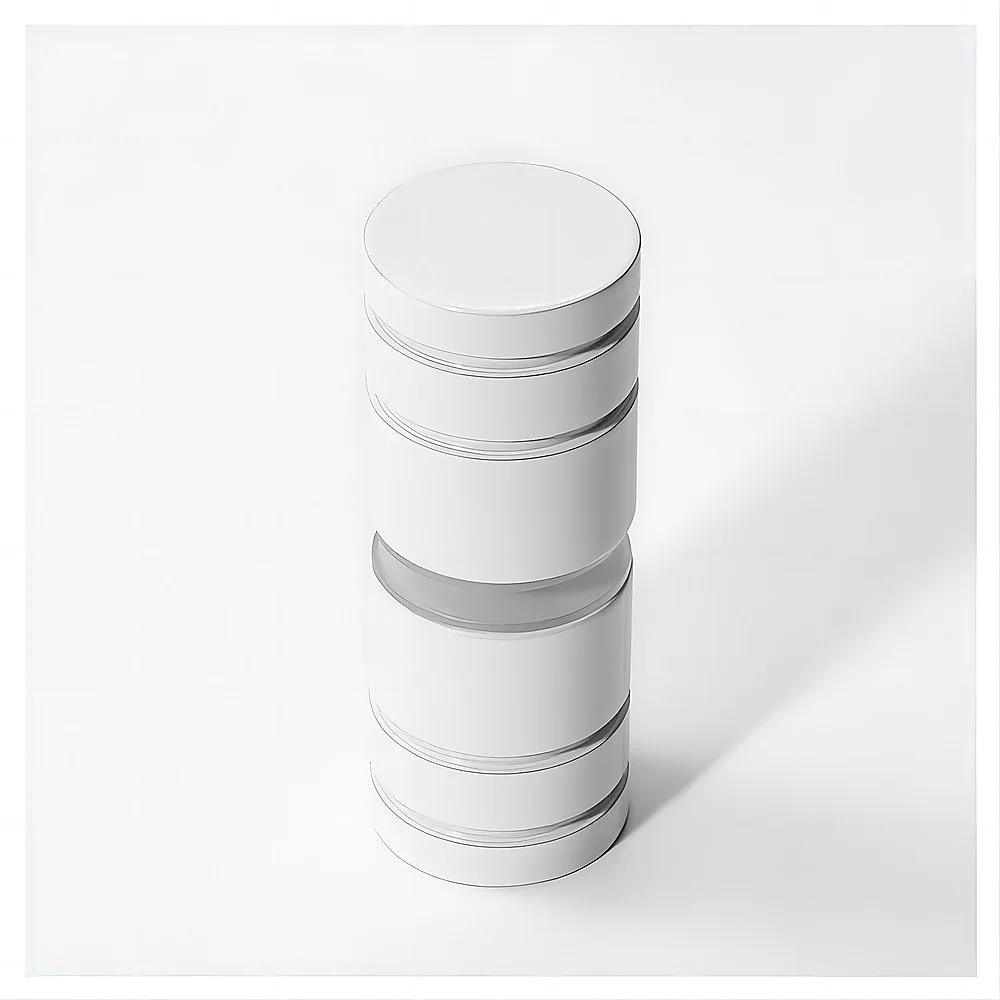

• Solid brass round knob handle with a smooth, rust- and corrosion-resistant finish

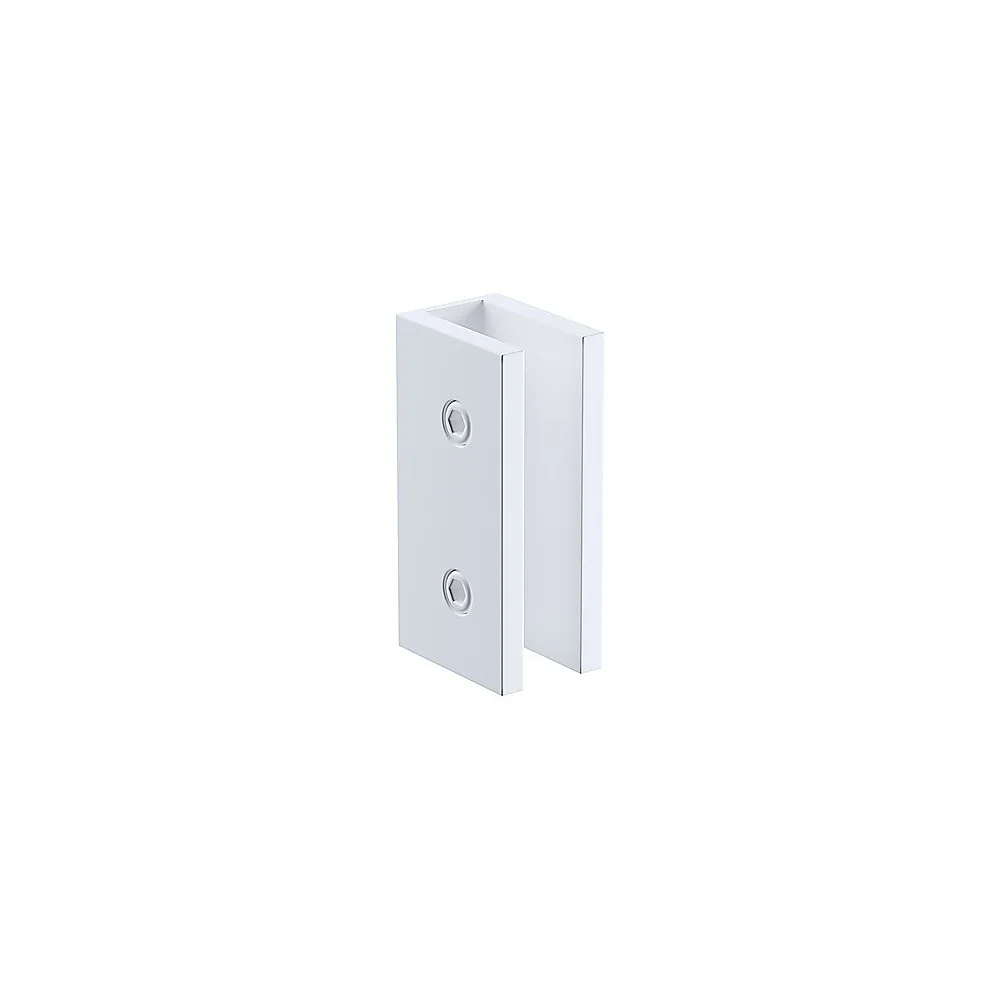

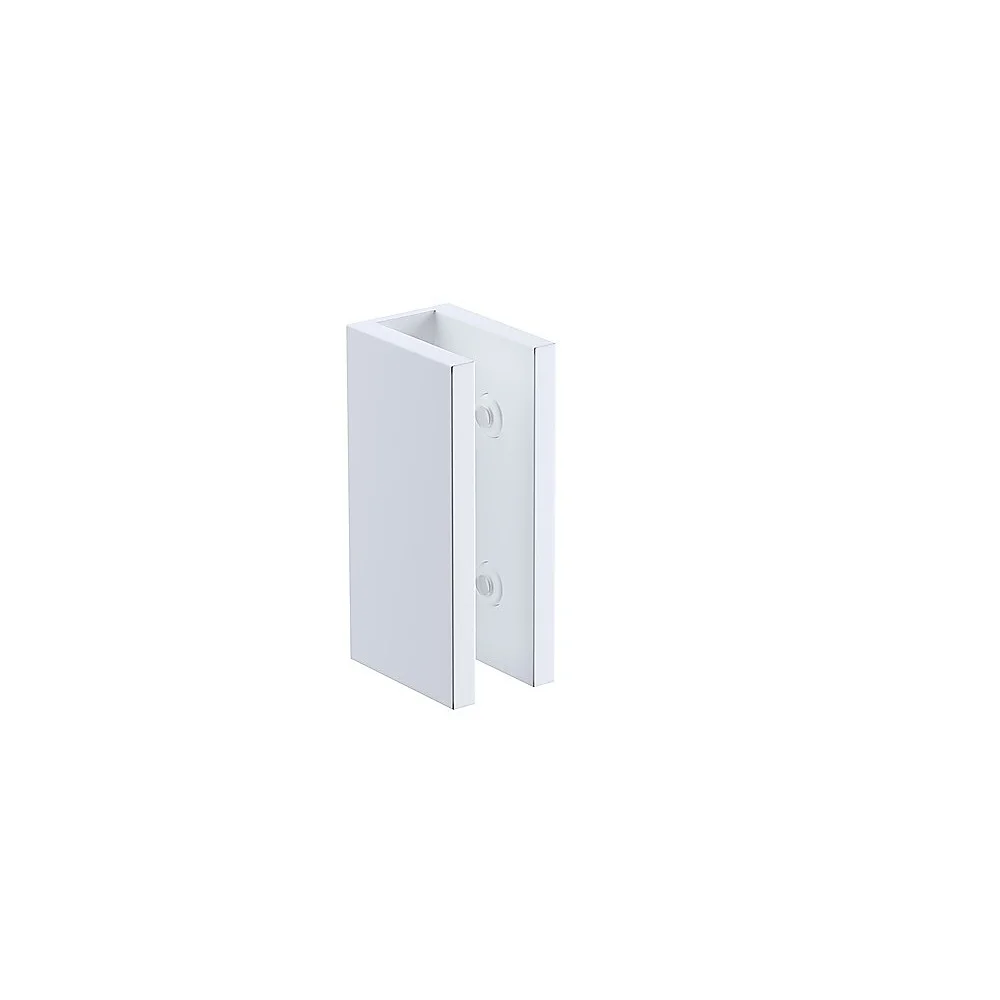

• Glass-to-wall or floor U-brackets with concealed fixing for a clean, streamlined finish
• U-brackets require no glass drilling, secured by two compression/friction screws
• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint

Specifications

• Size: 100cm
• Colour: White
• Bracket type: U-brackets
• Handle type: Round knob
• Glass: 10mm AS-NZS2208 standard tempered glass
• Door panel: 615 x 1990mm

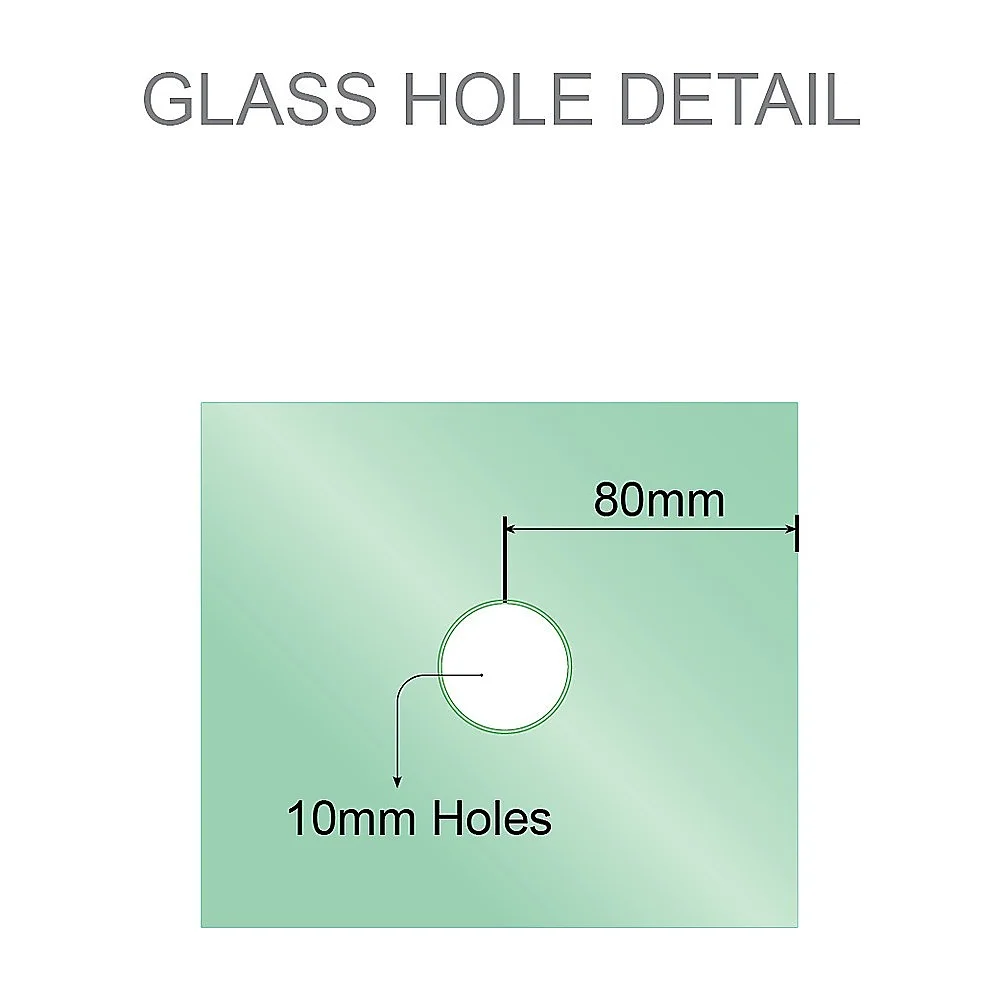

• Door handle hole: 10mm
• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

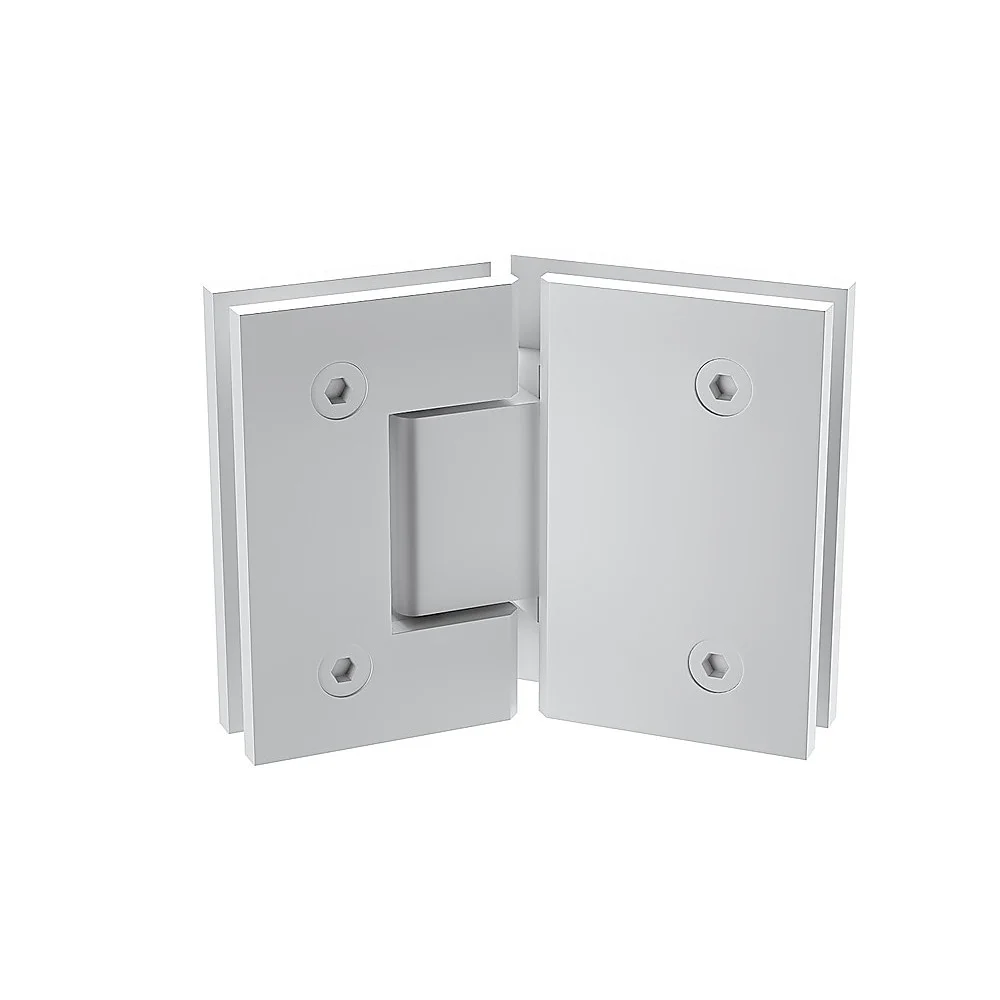

• Hinge: 135-degree glass-to-glass, for 10mm glass, maximum weight 45kg, matte white finish

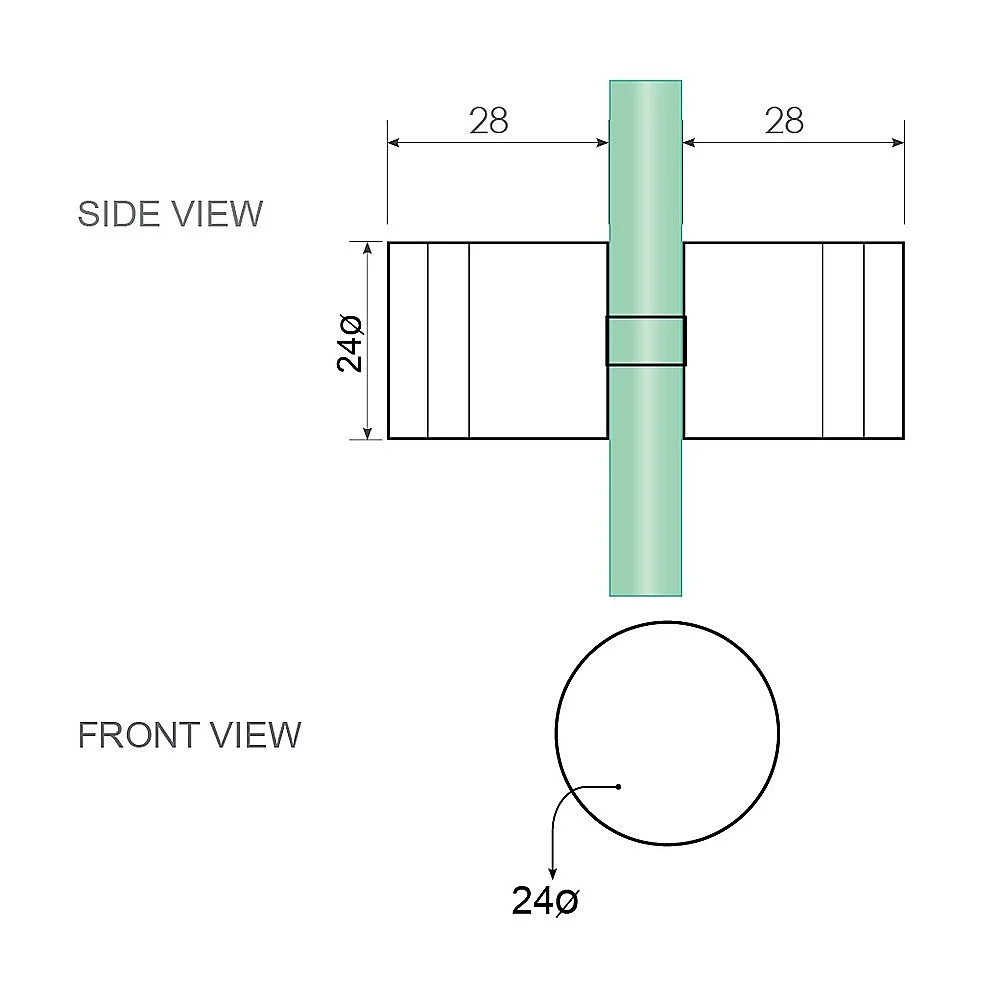

• Handle: slimline 24mm double pull knob, suits 6mm, 8mm, 10mm and 12mm thick glass, brass with matte white finish
• U-bracket: for 10mm glass, solid brass with matte white finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen
• 1 x 135-degree glass-to-glass stainless steel square shower hinge in matte white
• 1 x 24mm brass shower door round handle in matte white
• 4 x 10mm glass-to-wall/floor U-brackets in matte white

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories and are for illustrative purposes only; only the indicated accessories in the specified colour are included.
