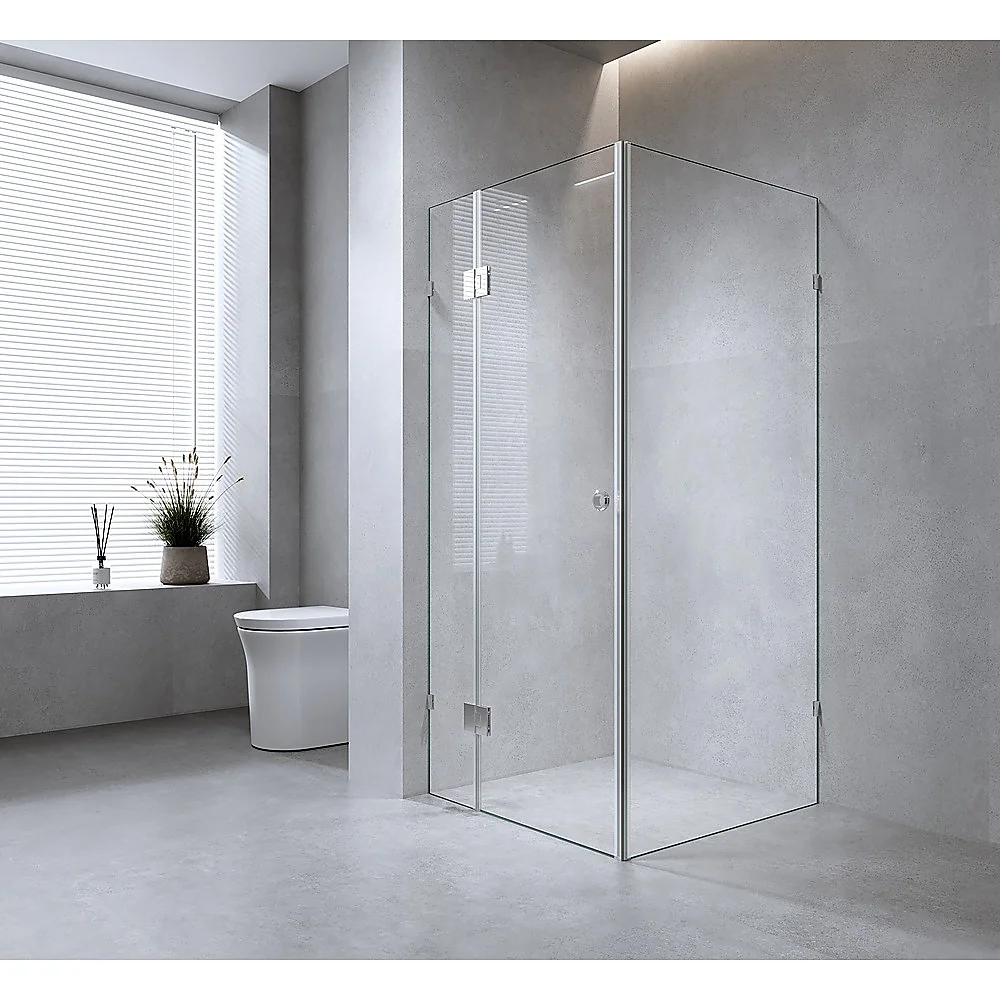

Della Francesca 100cm Frameless Diamond Shower Screen White F-Brackets

Create a striking focal point in your bathroom with the Della Francesca 100cm Frameless Diamond Shower Screen. Its diamond corner configuration opens up usable shower space while the frameless glass and matte white hardware deliver a sleek, modern finish.

Key Features

• Diamond corner configuration adds architectural interest and maximises usable shower space
• Frameless design removes hard-to-clean channels and corners
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual-action swing
• Hinges self-close from the 25-degree position
• Solid brass double pull handle with a smooth, rust- and corrosion-resistant finish
• Offset F-brackets secure the glass without drilling, for flexible installation
• Matte white finish across hinges, handle and brackets for a coordinated look

Specifications

• Size: 100cm
• Colour: White
• Bracket type: F-brackets
• Handle type: Square double pull
• Glass: 10mm AS-NZS2208 standard tempered glass
• Door panel: 615 x 1990mm

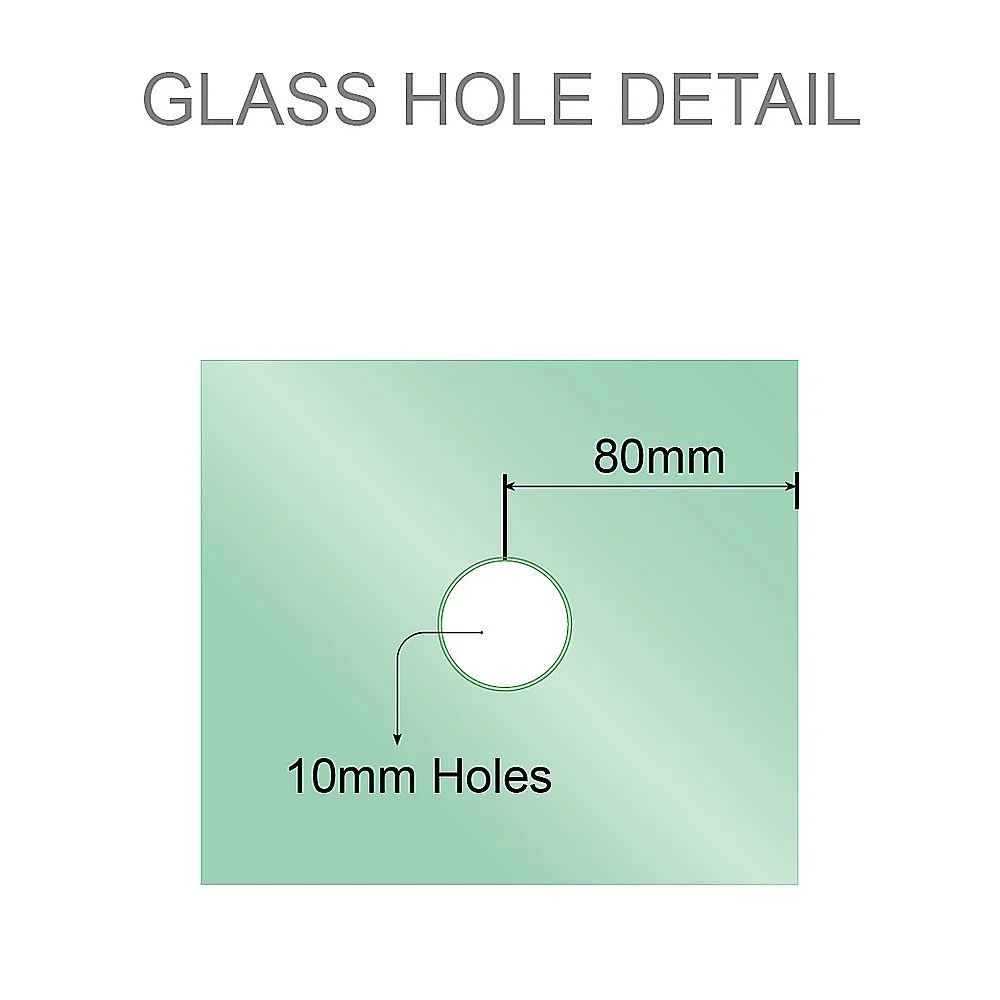

• Door handle hole: 10mm

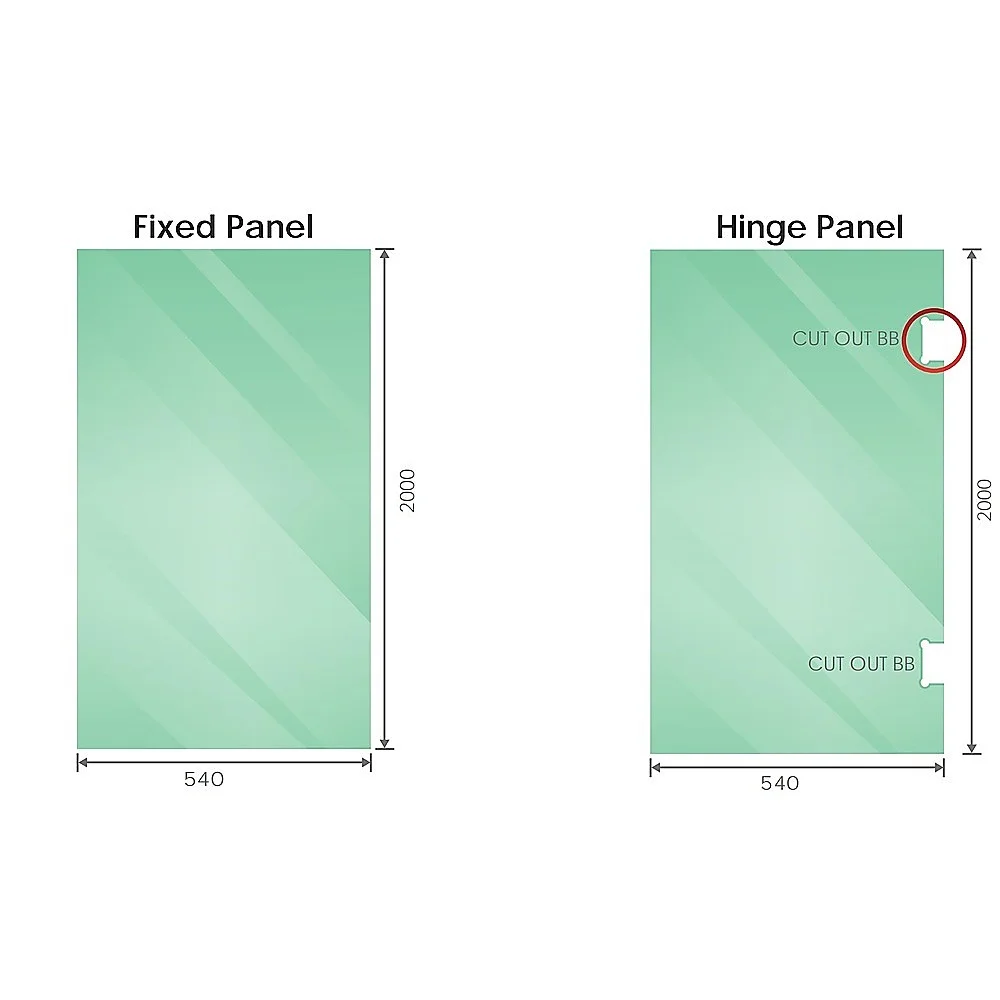

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

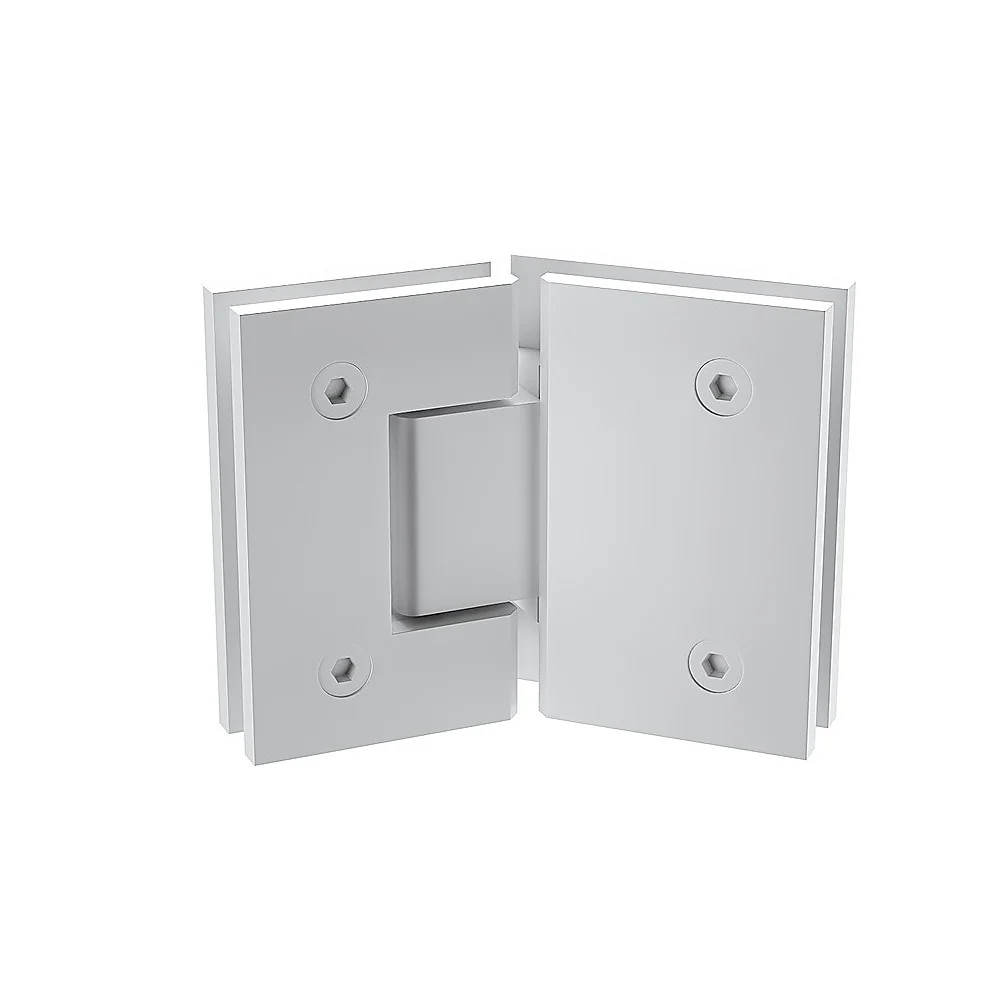

• Hinge: 135-degree glass-to-glass, stainless steel, matte white; suits 10mm glass; swings 67.5 degrees each way and centres within 25 degrees; maximum weight 45kg

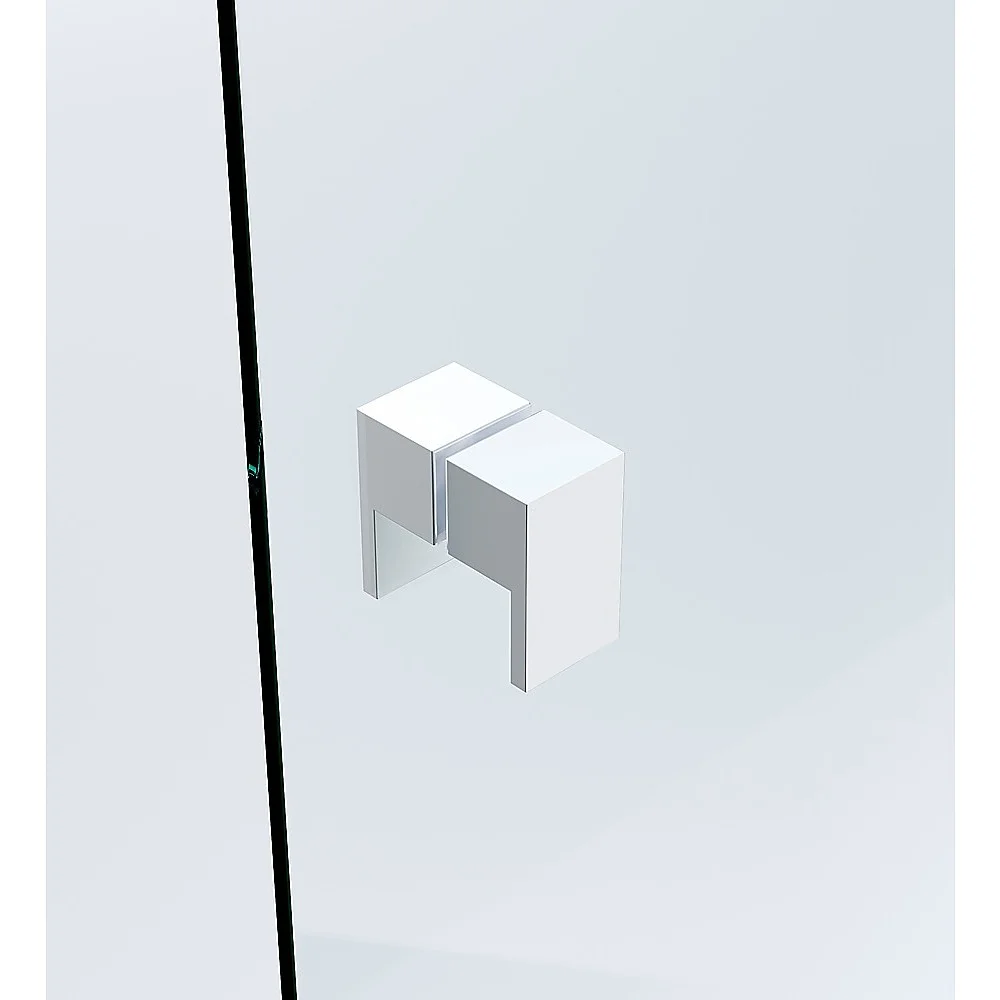

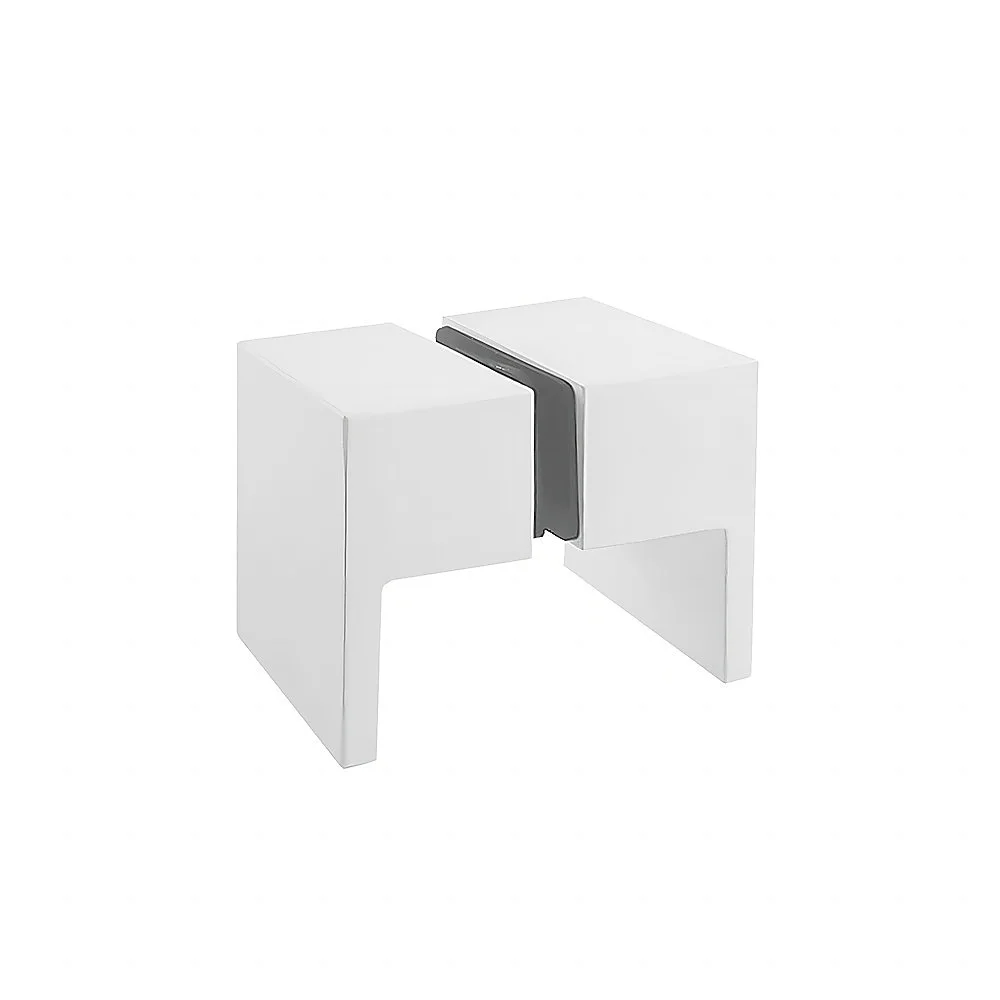

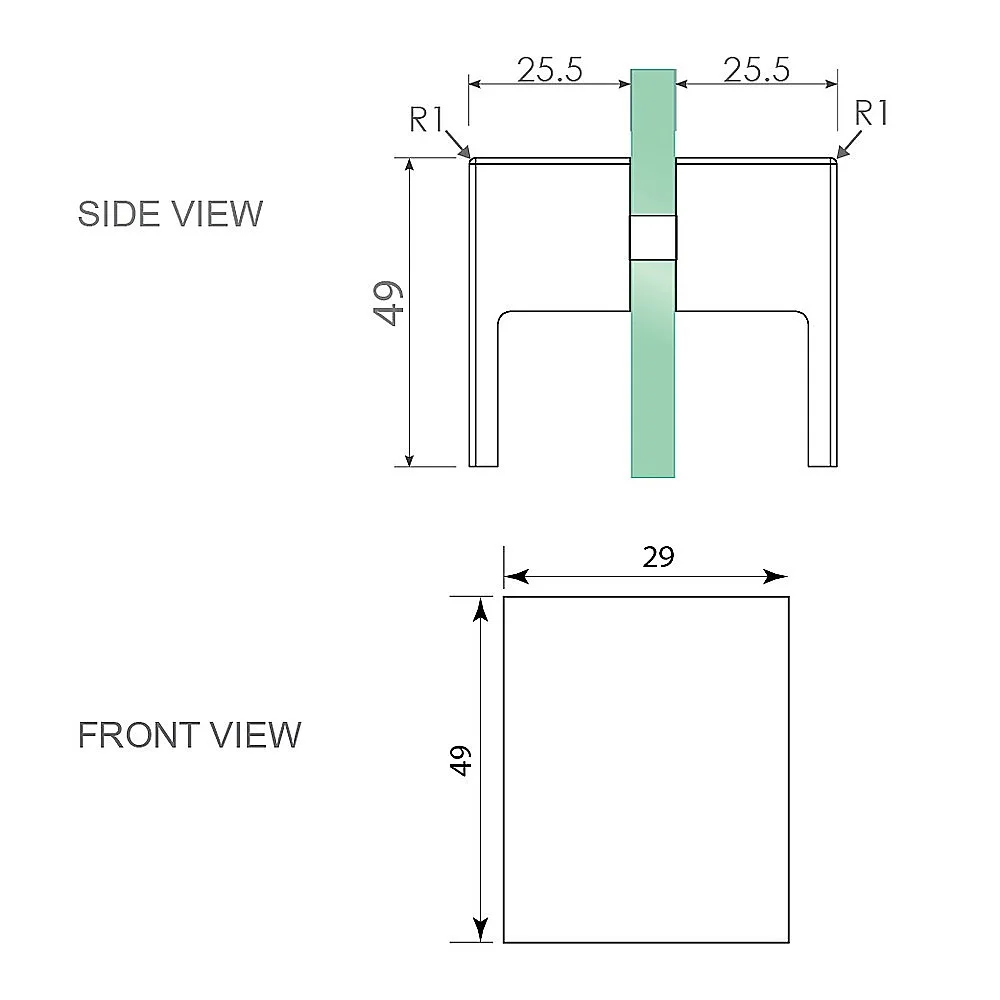

• Handle: 49mm x 25mm double pull knob, solid brass, matte white; suits 6mm, 8mm, 10mm and 12mm glass

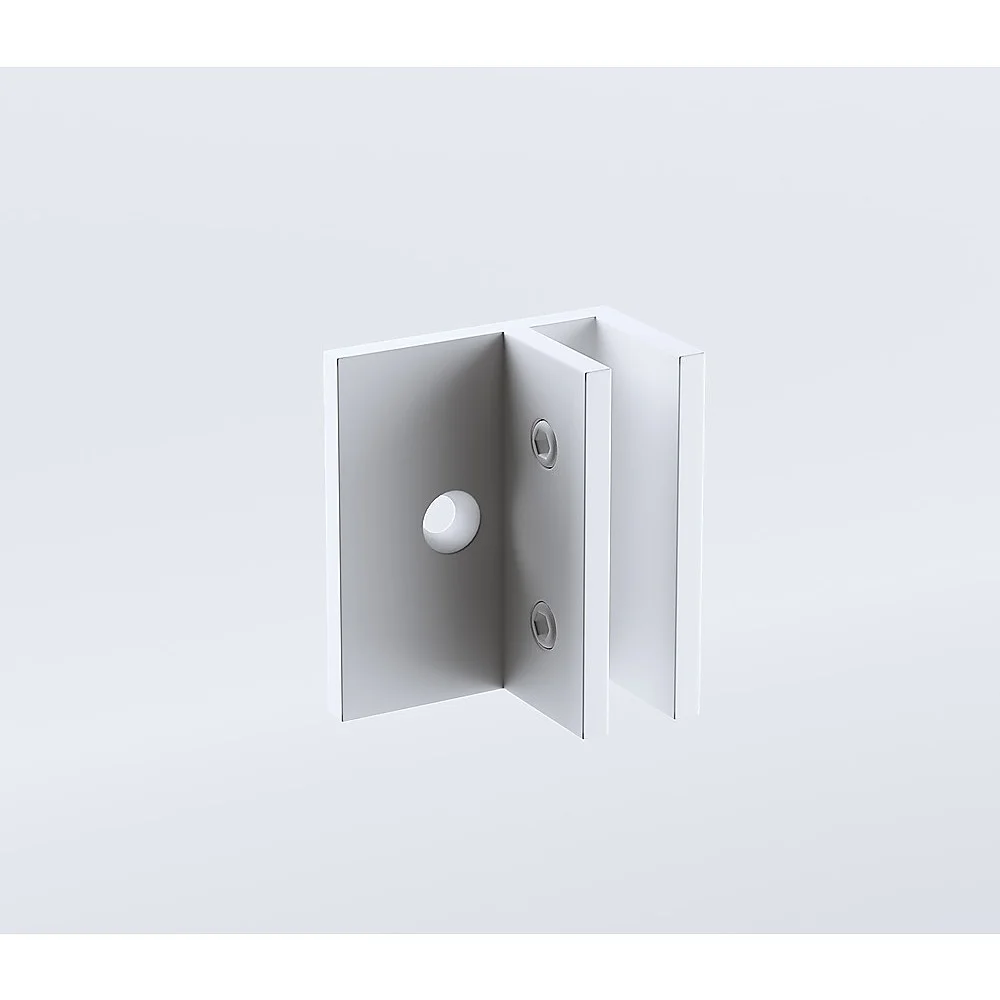

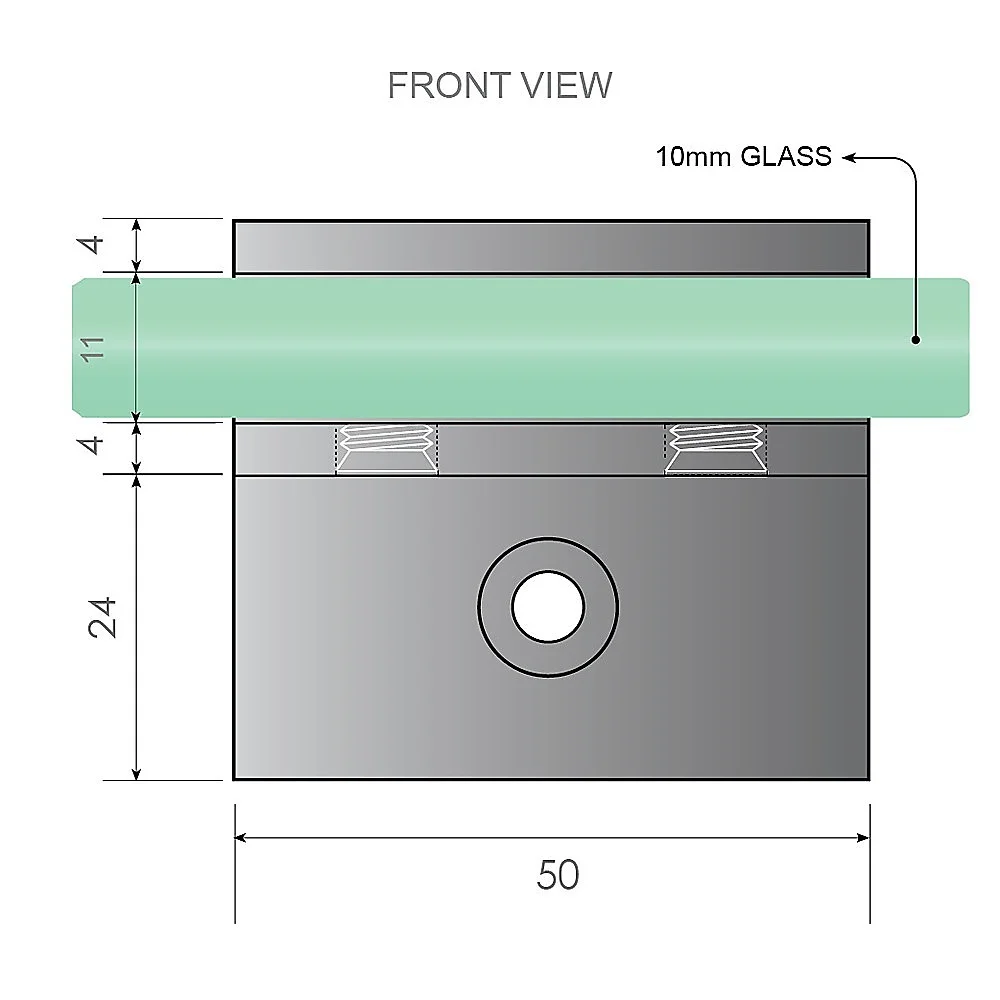

• F-bracket: suits 10mm glass; solid brass, matte white; slimline 2mm rear wall; supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen
• 1 x 135-degree glass-to-glass stainless steel square shower hinge, matte white
• 1 x 25mm brass shower door double pull handle, matte white
• 4 x 10mm glass-to-wall/floor offset F-brackets, matte white

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories and colour specified are supplied.
