Della Francesca 100cm Frameless Diamond Shower Screen Brushed Nickel F-Brackets

The Della Francesca 100cm Frameless Diamond Shower Screen in brushed nickel combines a distinctive diamond configuration with premium stainless steel hinges and brass fittings. Its tempered safety glass and frameless design create a sleek, modern look that enhances any bathroom while maximising usable shower space.

Key Features

• Diamond corner configuration adds architectural interest and optimises space
• Frameless design for a clean, contemporary appearance and easy maintenance
• 10mm AS-NZS2208 standard tempered safety glass
• Stainless steel hinges with squared edges for durability and smooth operation
• Dual-action hinges open inwards and outwards, self-closing from 25° position

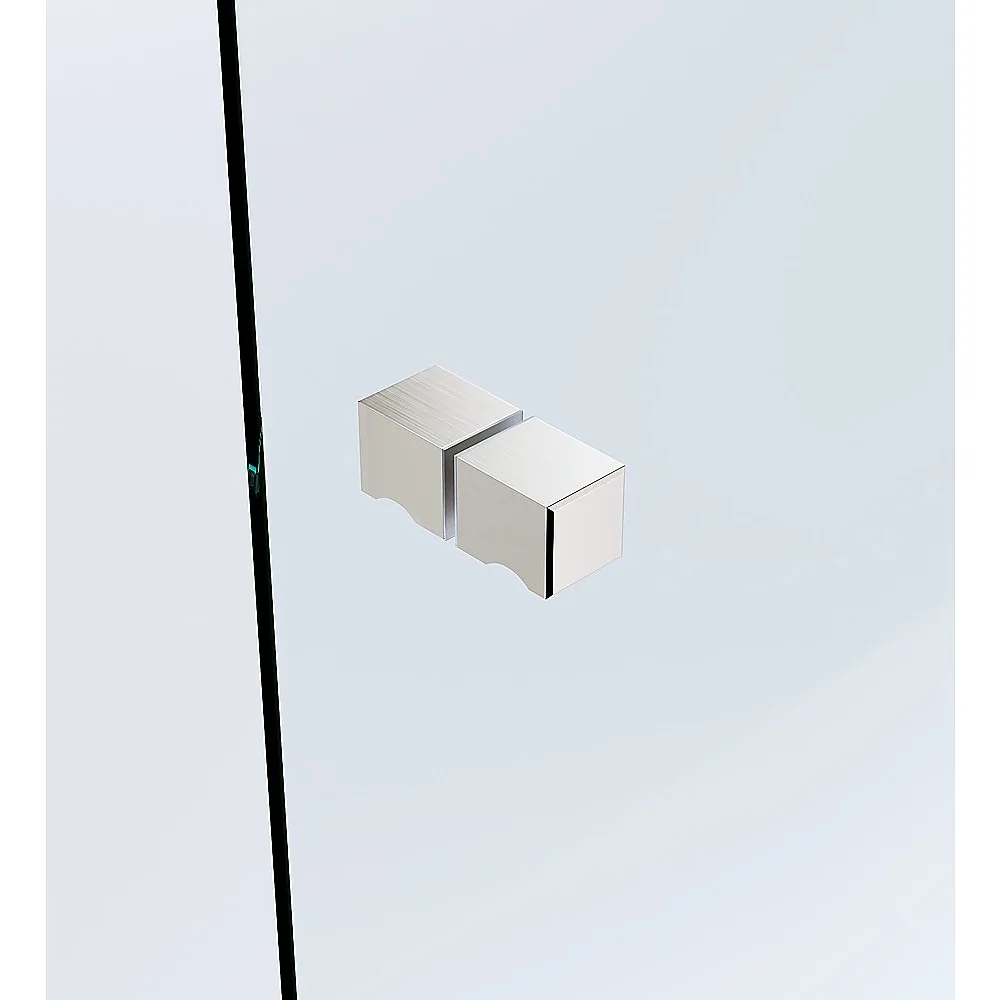

• Solid brass square knob handle with brushed nickel finish, resistant to rust and corrosion
• F-brackets for glass-to-wall/floor installation with no holes required in glass
• Slimline 2mm rear wall reduces silicone gap between wall and glass panel

Specifications

• Size: 100cm
• Colour: Brushed nickel (colour intensity may vary from actual due to different lighting conditions)
• Glass thickness: 10mm
• Door panel: 615 x 1990mm

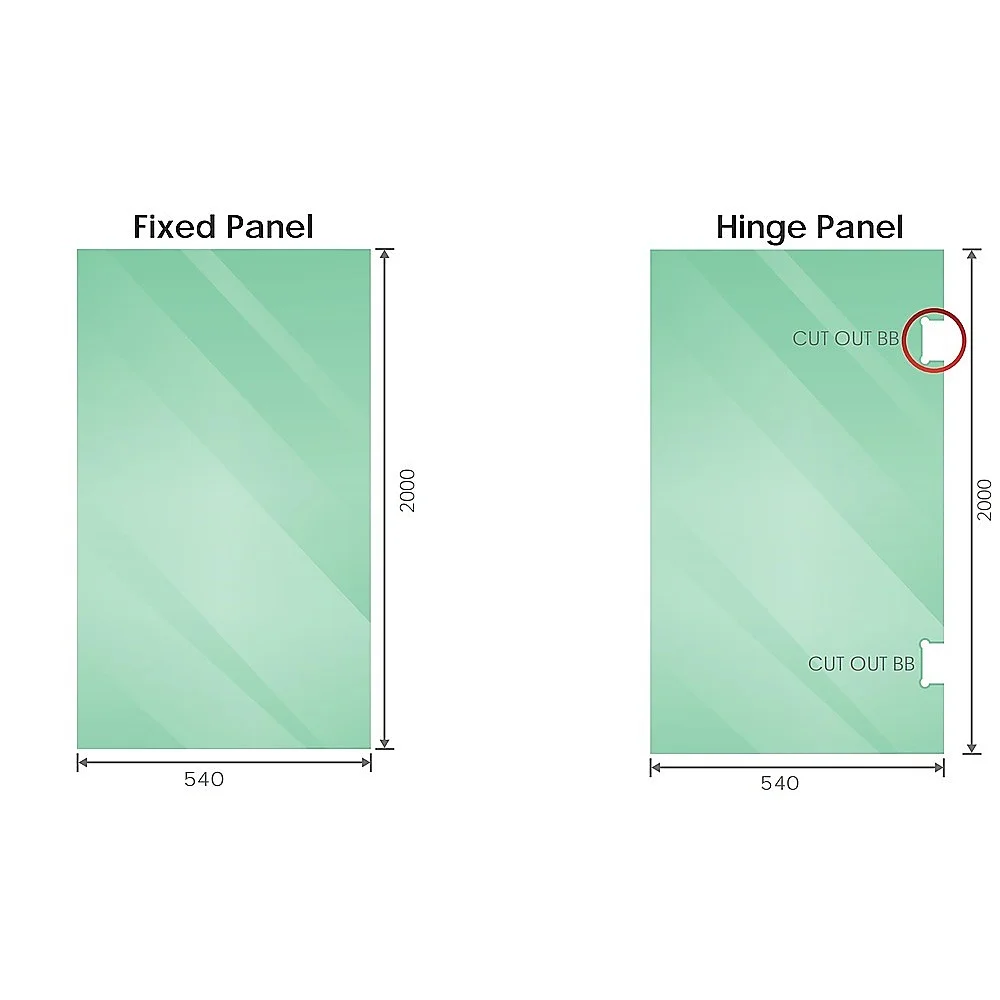

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

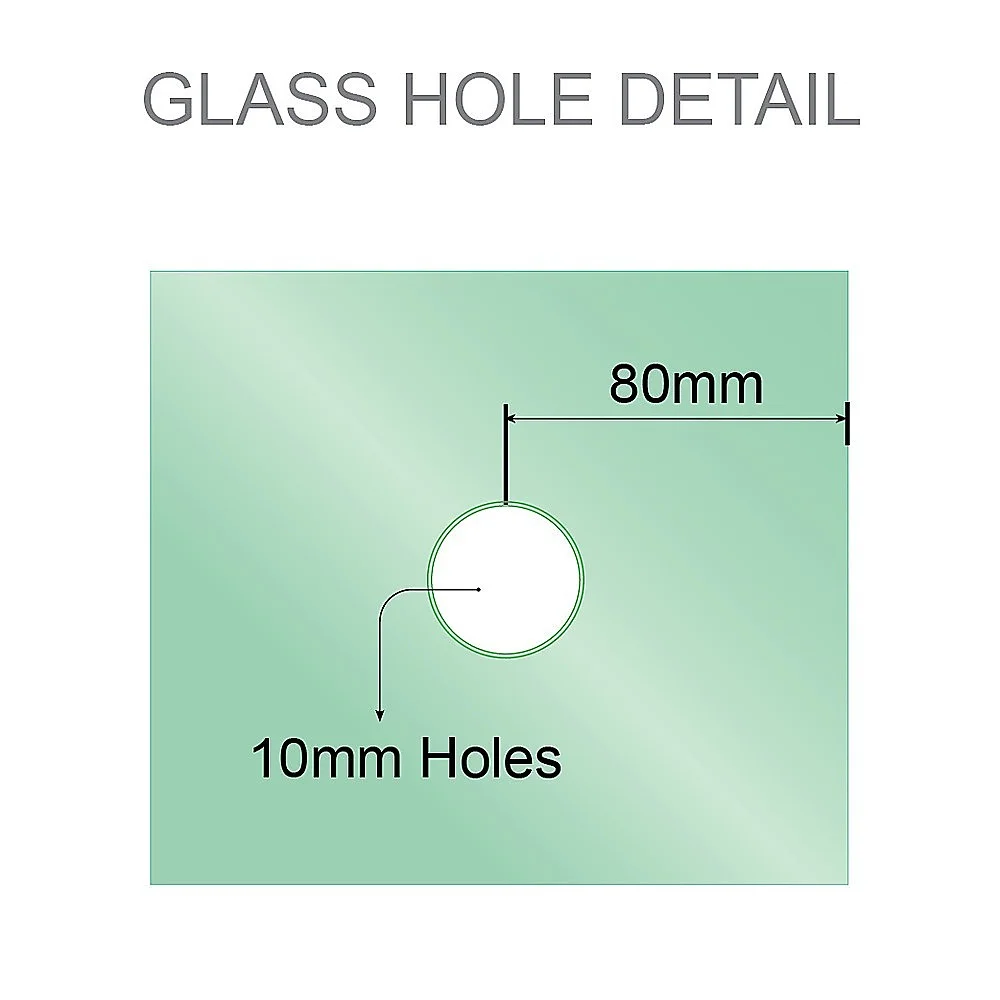

• Door handle hole: 10mm

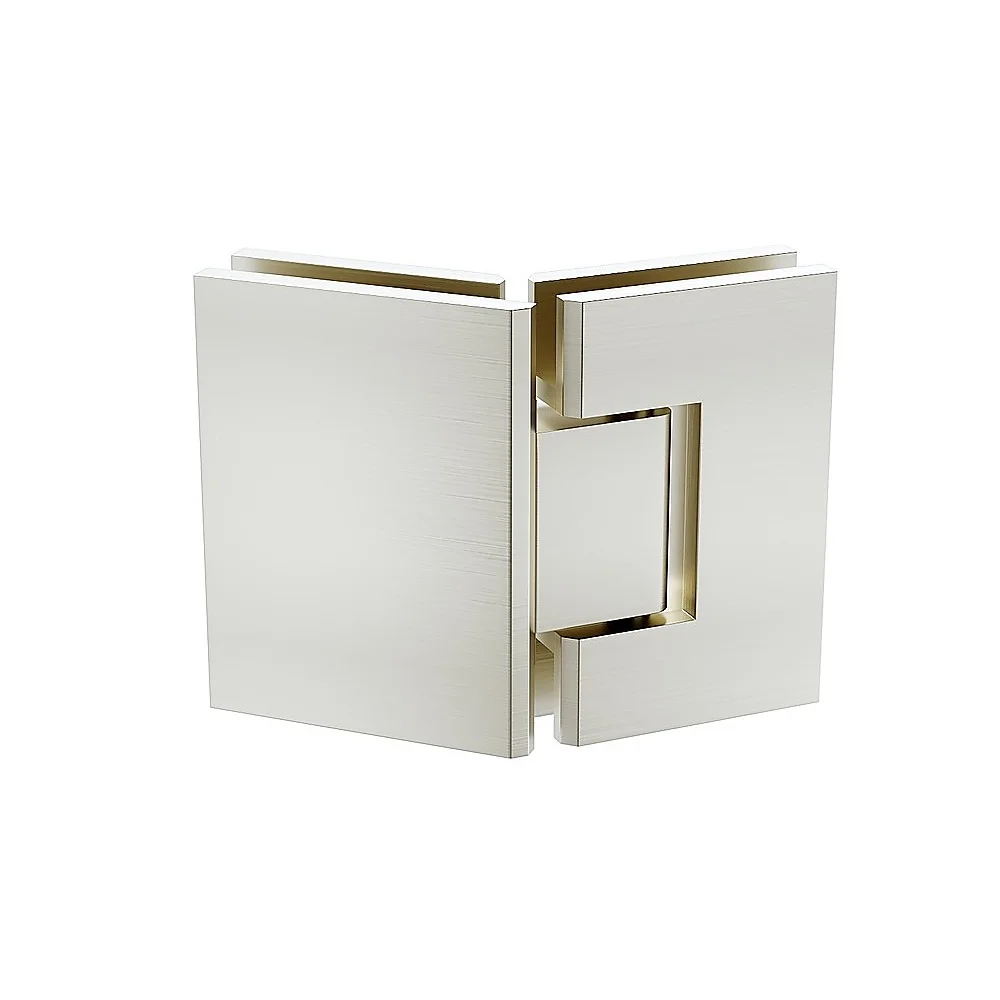

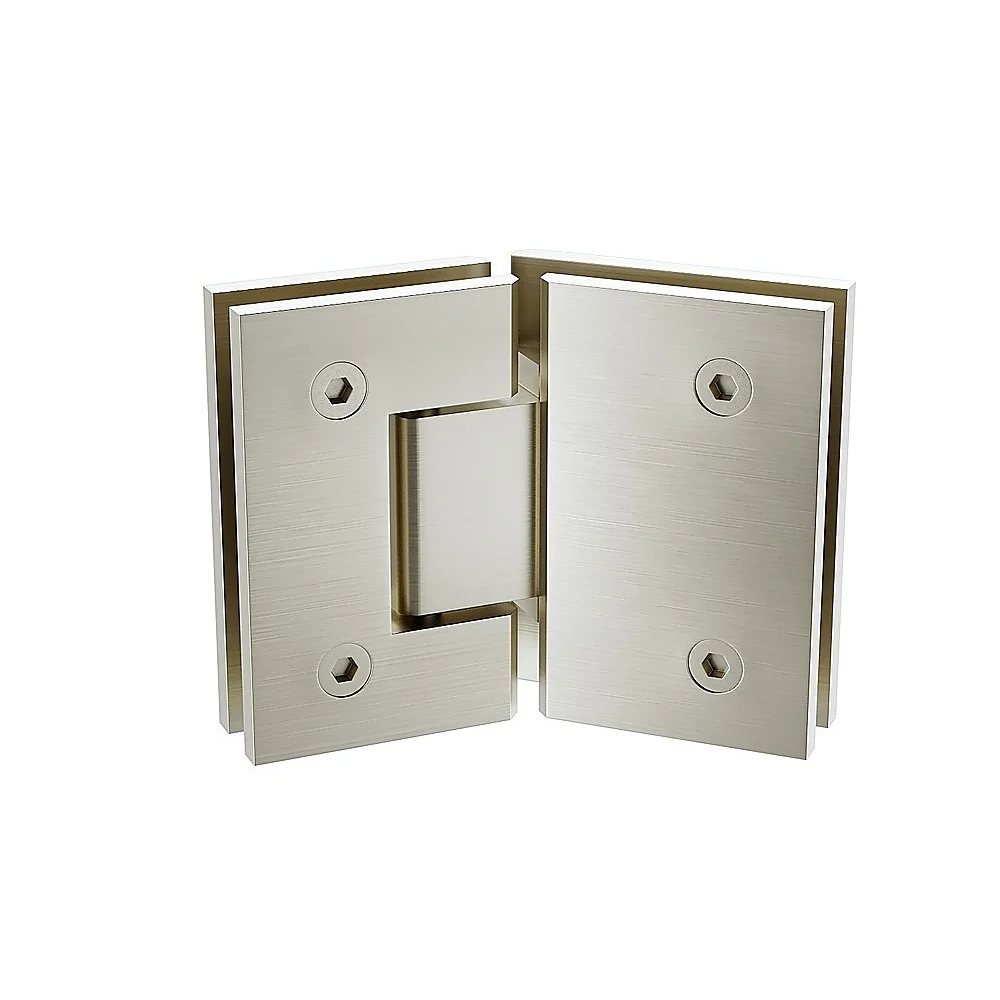

• Hinge: 135° glass-to-glass, stainless steel, self-closing from 25°, maximum weight 45kg

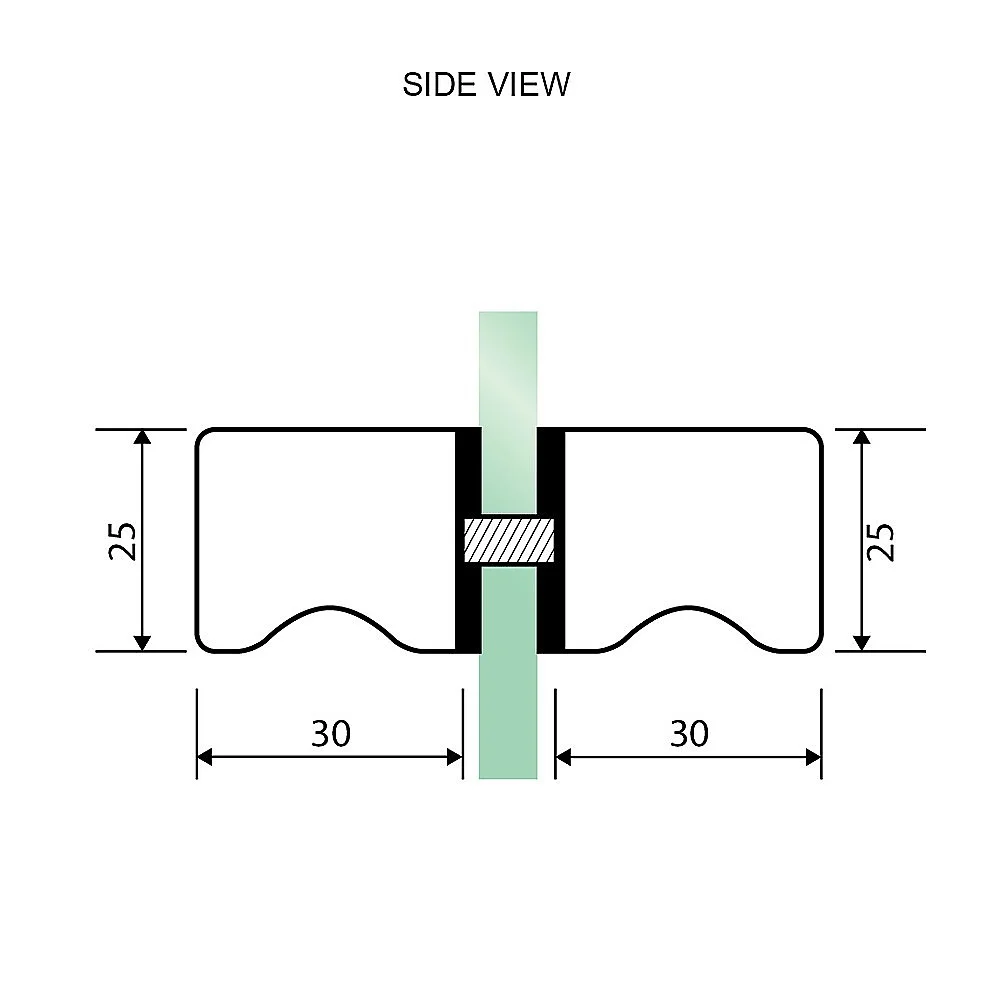

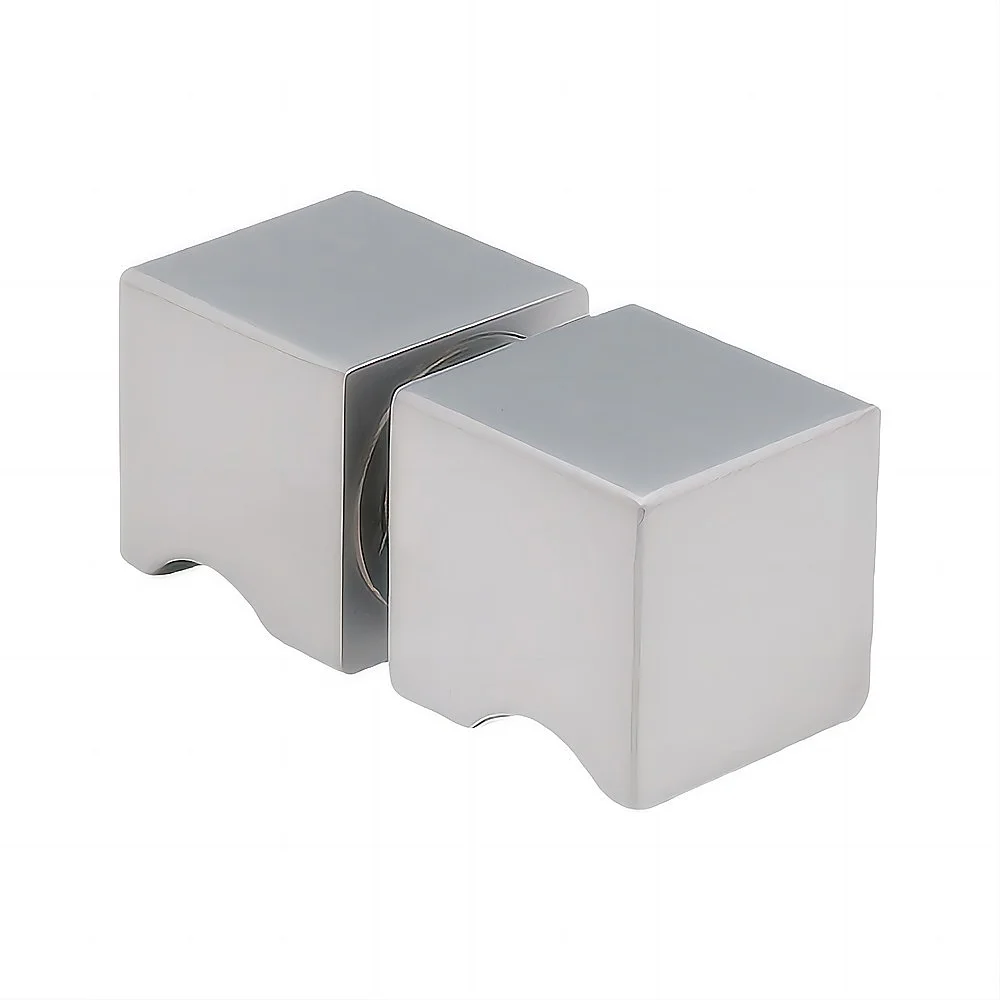

• Handle: 25mm square knob, solid brass, suits 6mm, 8mm, 10mm, and 12mm thick glass

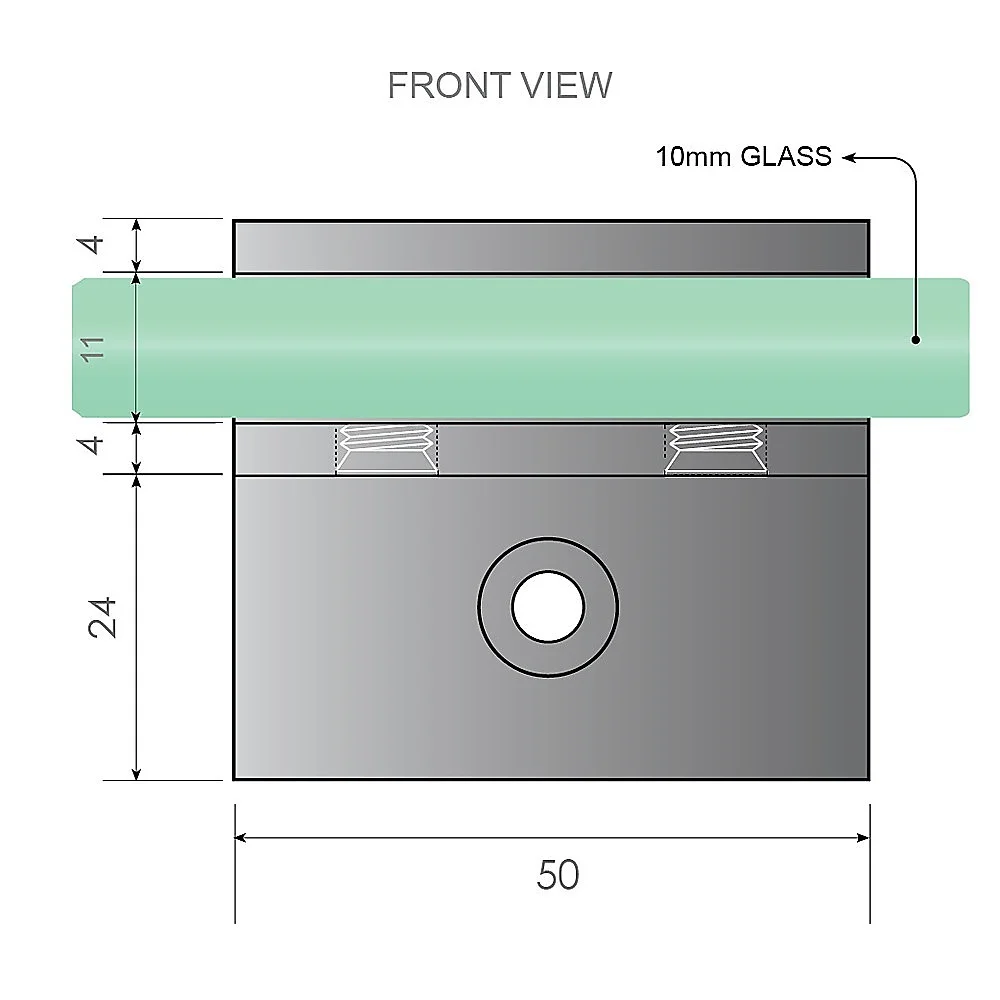

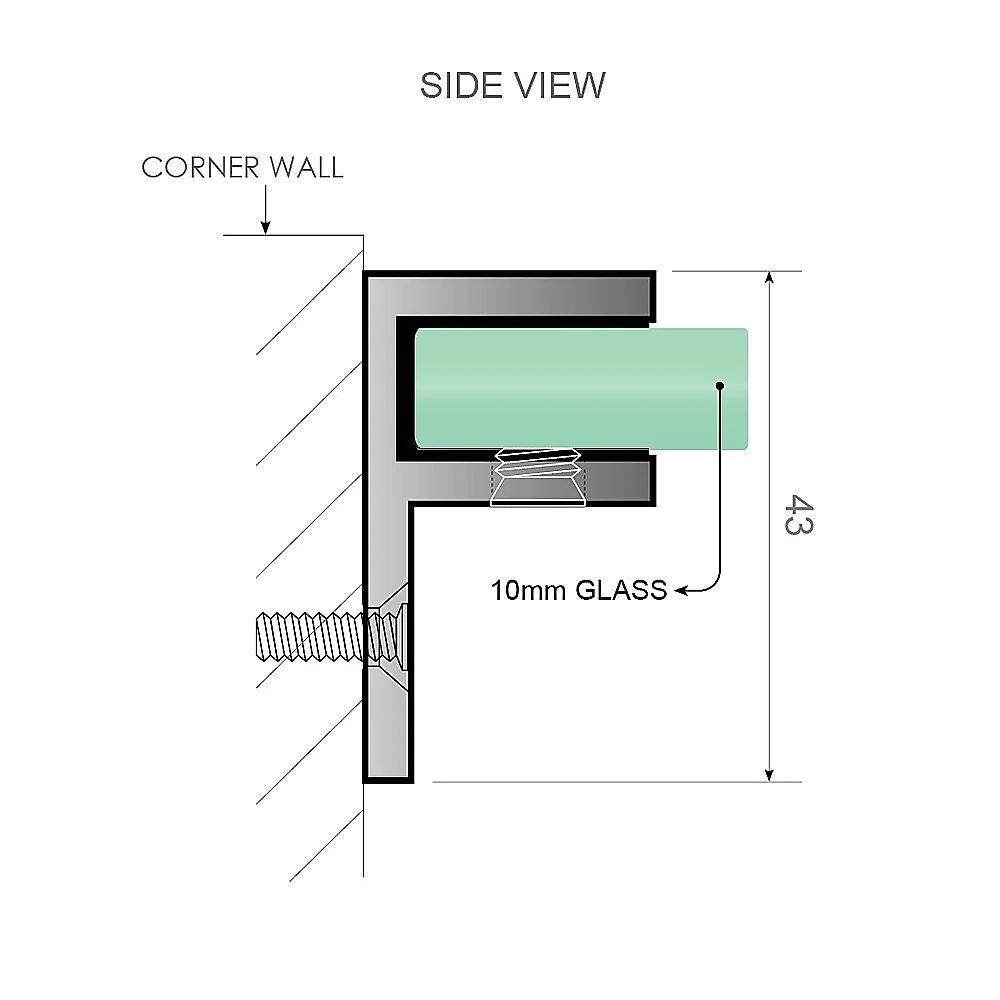

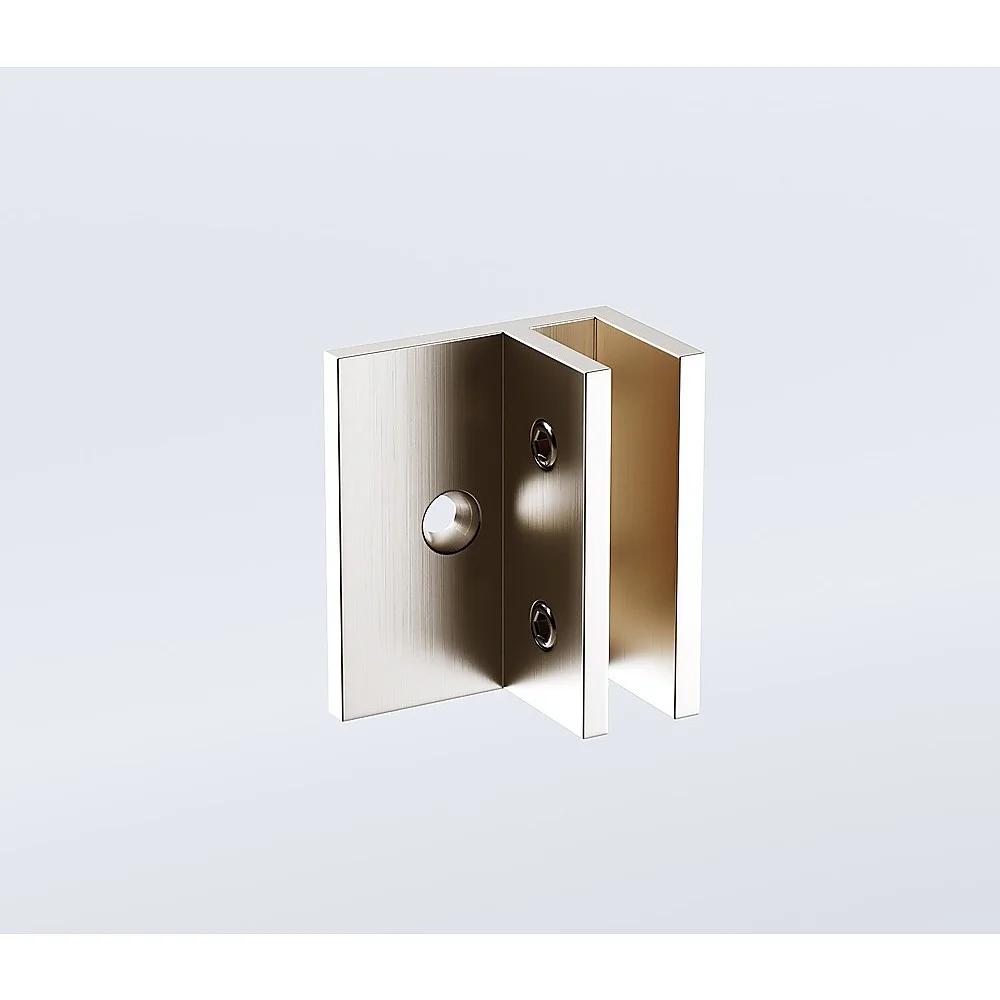

• F-brackets: 4 x glass-to-wall/floor offset brackets, solid brass, suitable for 10mm glass, with compression/friction screws and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed panel (540 x 2000mm)
• 1 x 540mm clear glass hinged panel (540 x 2000mm)
• 1 x 135° glass-to-glass stainless steel square shower hinge in brushed nickel
• 1 x 25mm brass square shower door handle in brushed nickel
• 4 x glass-to-wall/floor offset F-brackets in brushed nickel

Note: Images may show all optional accessories and are for illustrative purposes only. Only the indicated accessories with specified colour will be provided as described.
