Della Francesca 100cm Frameless Diamond Shower Screen Gunmetal F-Brackets

The Della Francesca 100cm Frameless Diamond Shower Screen brings a striking diamond corner configuration to your bathroom, opening up usable shower space while showcasing your tiles through crystal-clear tempered glass. Supplied with brushed gunmetal F-brackets, stainless steel hinges and a solid brass double pull handle, it combines a sleek frameless look with durable hardware.

Key Features

• Diamond corner configuration creates visual interest and maximises usable shower space
• Frameless design removes hard-to-clean channels and corners for easier maintenance
• 10mm tempered safety glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

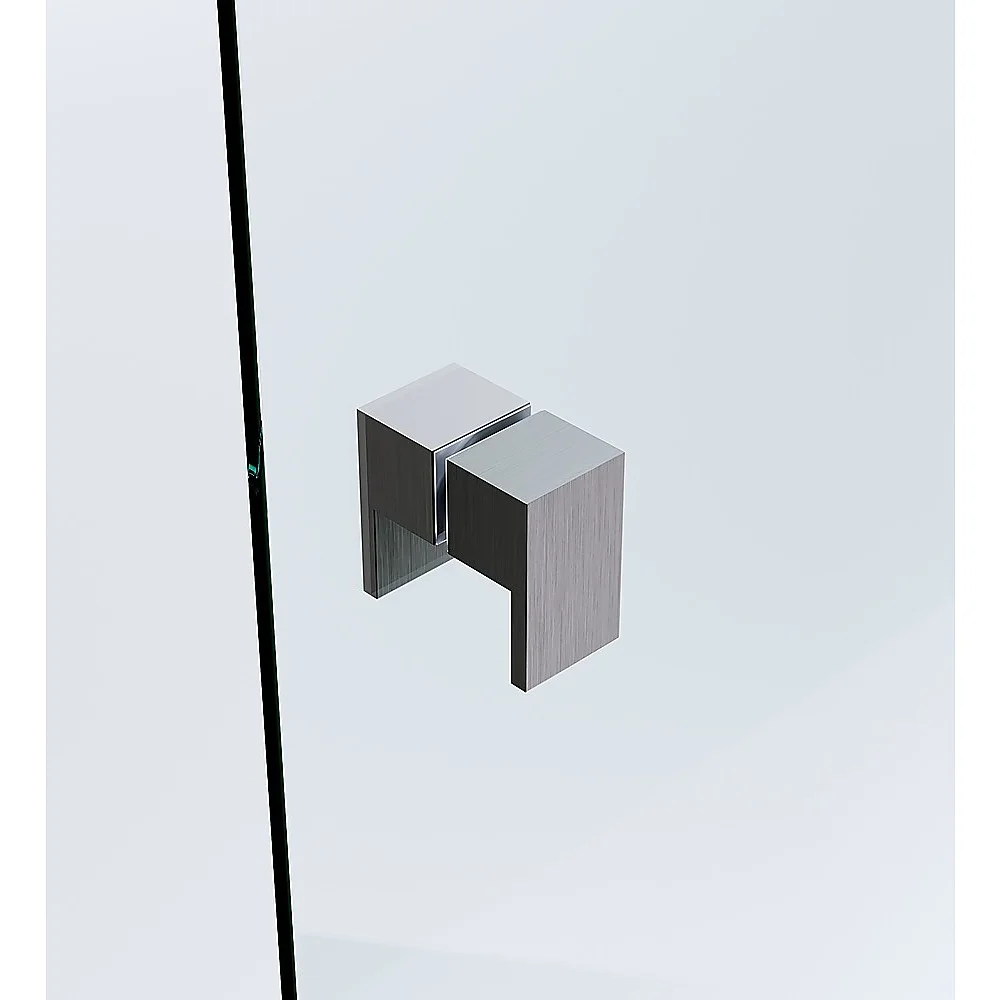

• Solid brass double pull handle with a smooth finish, resistant to rust and corrosion

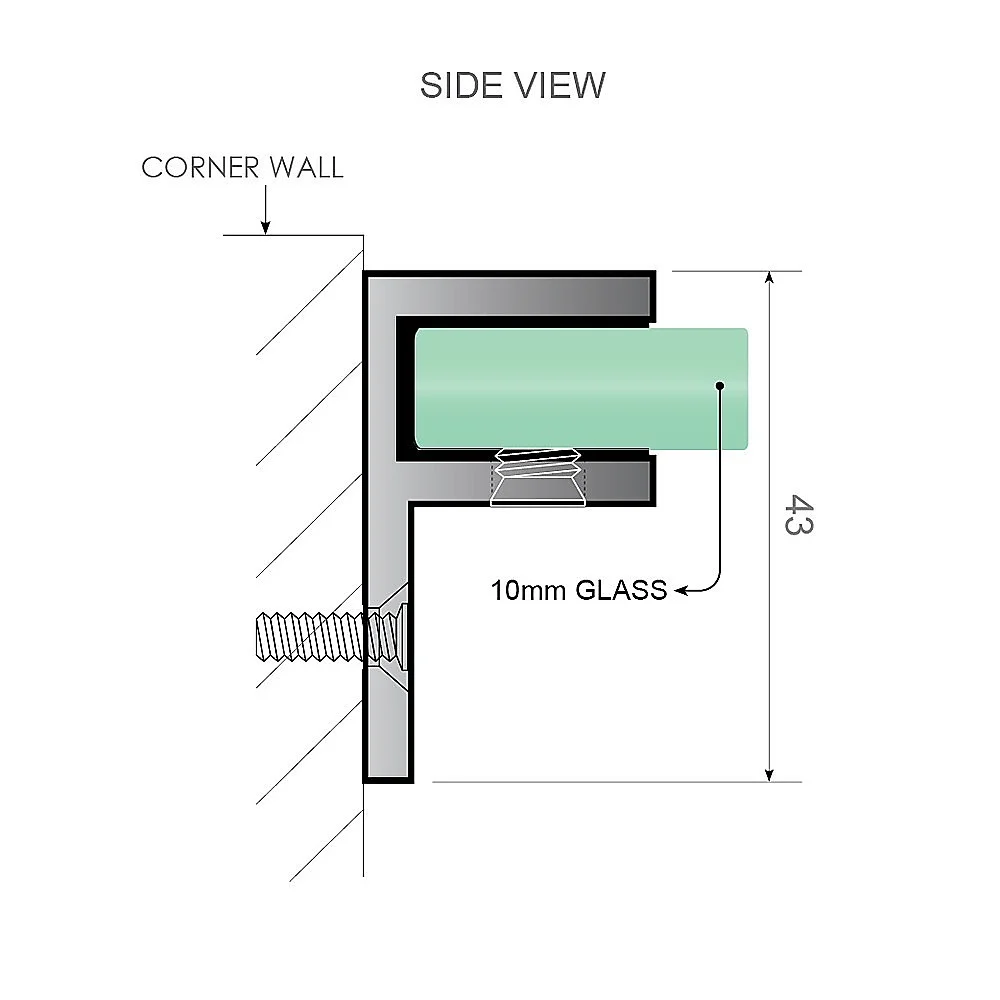

• Offset F-brackets secure the glass without drilling, using two compression/friction screws
• Slimline 2mm rear wall on brackets helps minimise the gap for a neater silicone joint
• Brushed gunmetal finish across brackets, hinges and handle

Specifications

• Size: 100cm
• Colour: Gunmetal
• Bracket type: F-Brackets
• Handle type: Square Double Pull
• Glass thickness: 10mm (AS-NZS2208 standard)
• Door panel: 615 x 1990mm

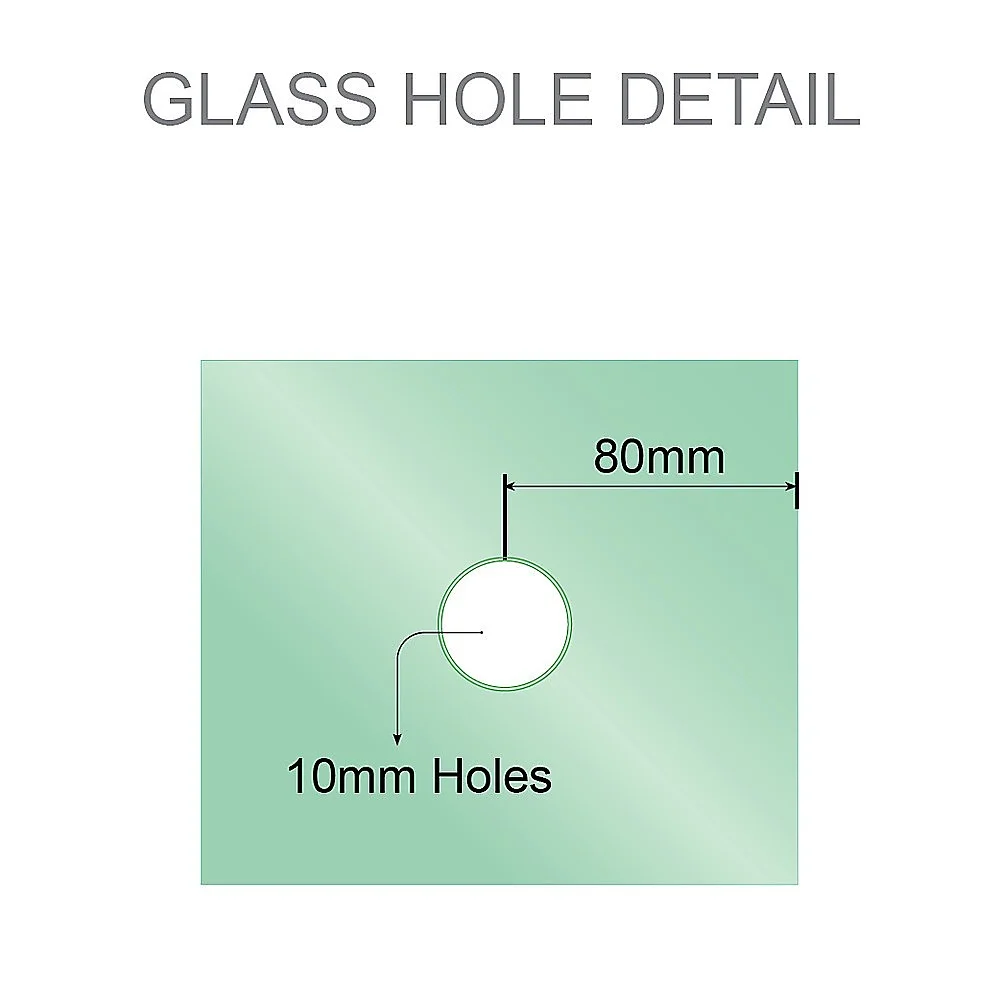

• Door handle hole: 10mm

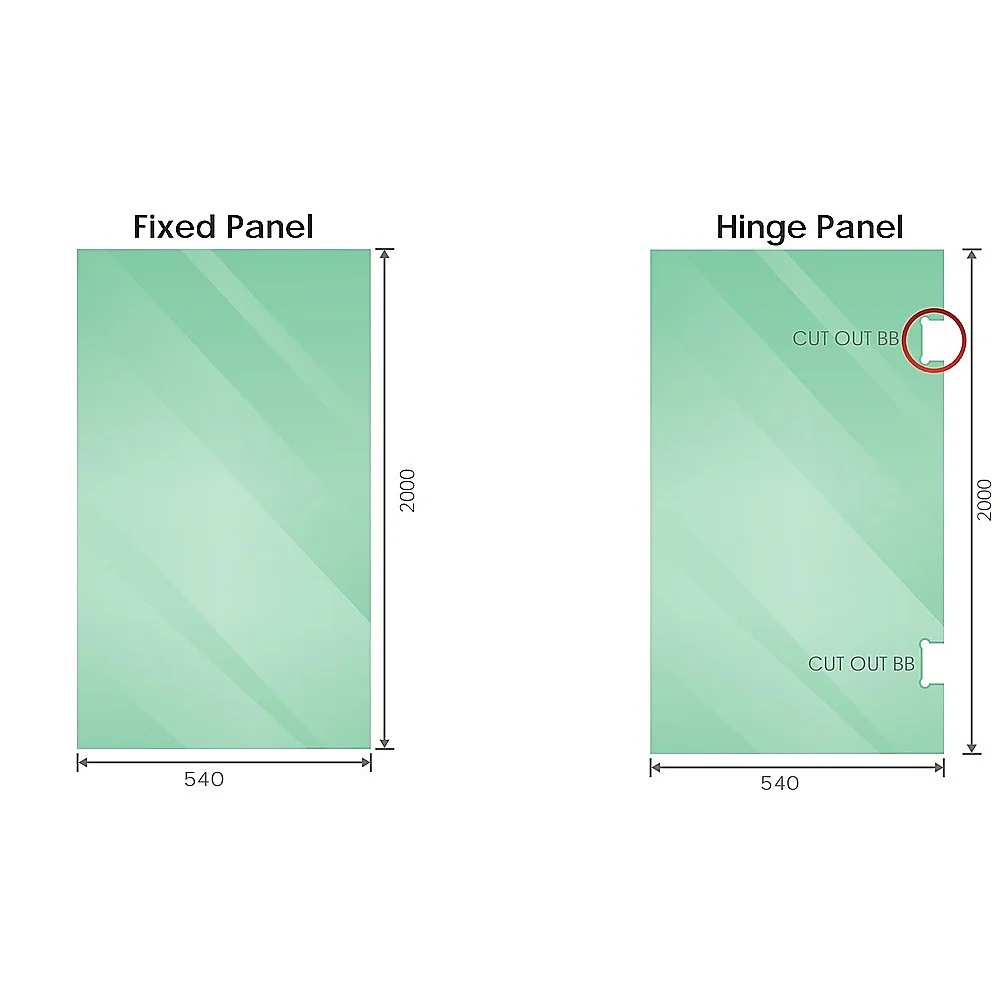

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

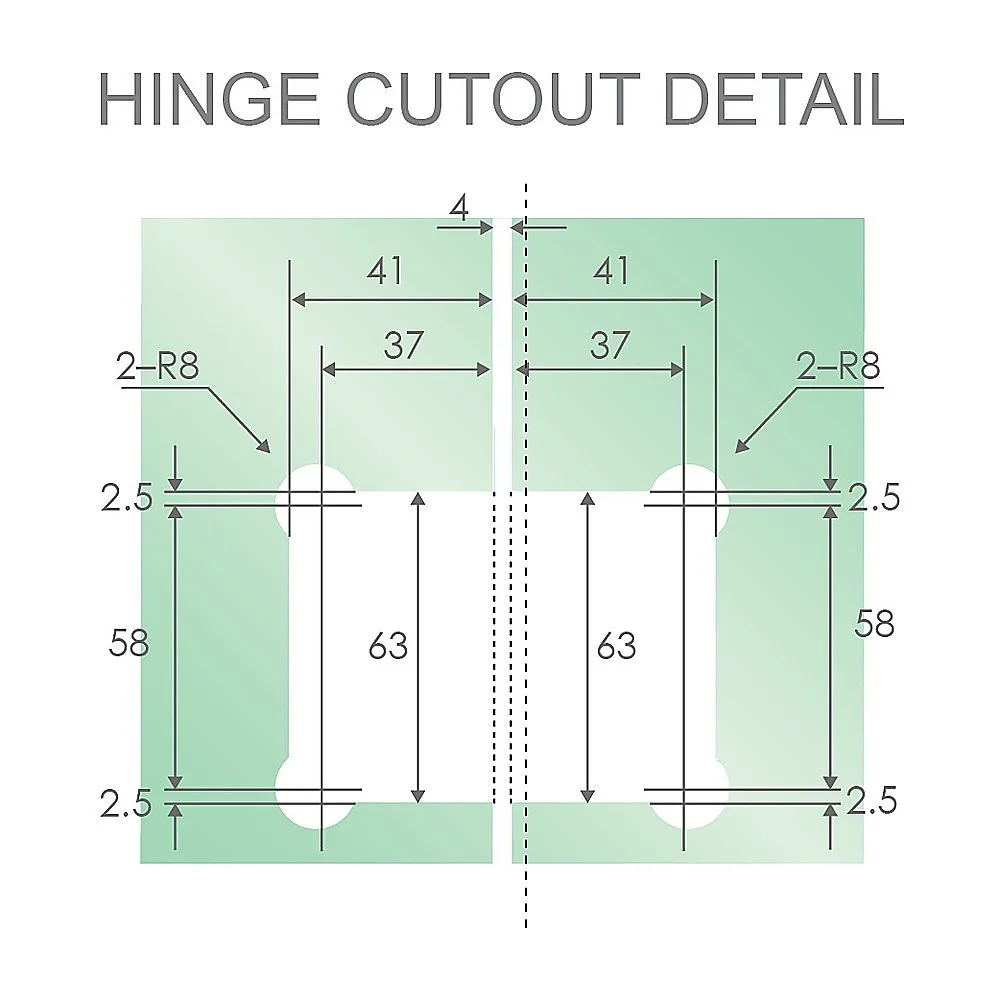

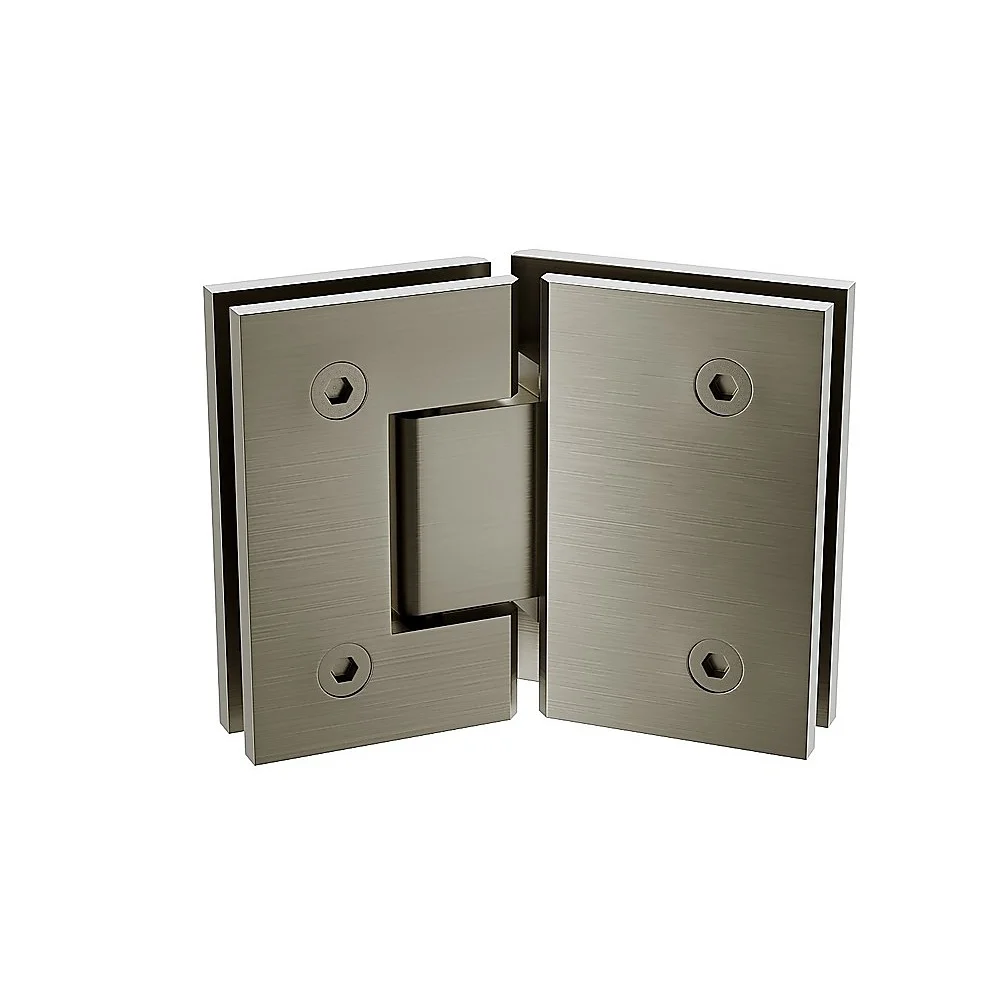

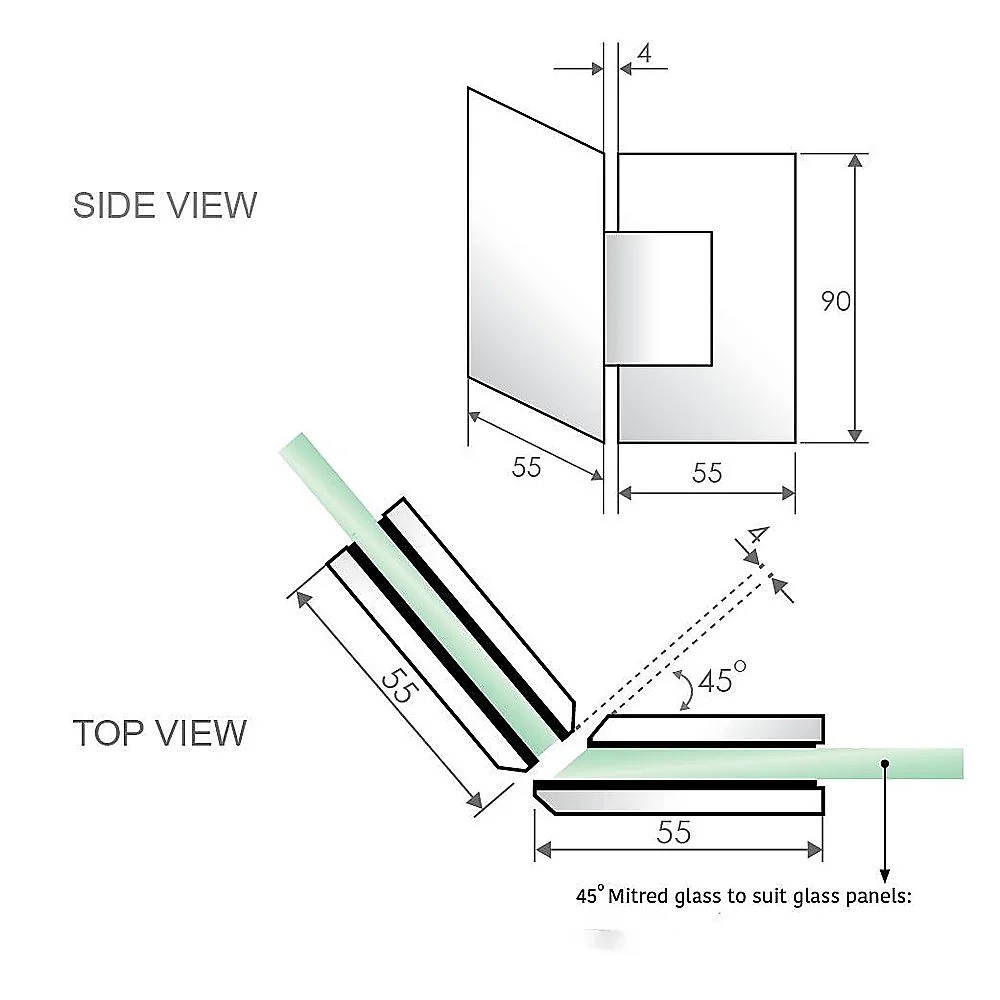

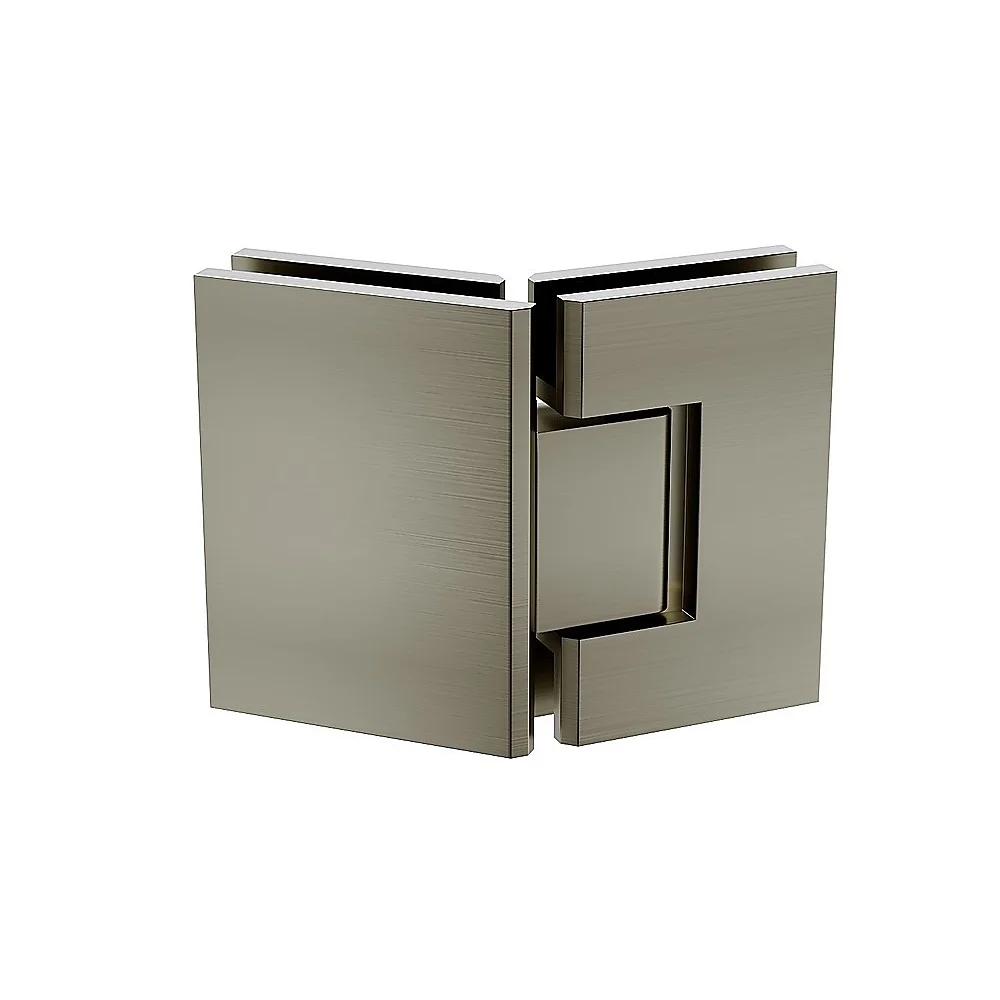

• Hinge: 135-degree glass-to-glass, stainless steel, for 10mm glass, maximum weight 45kg, brushed gunmetal

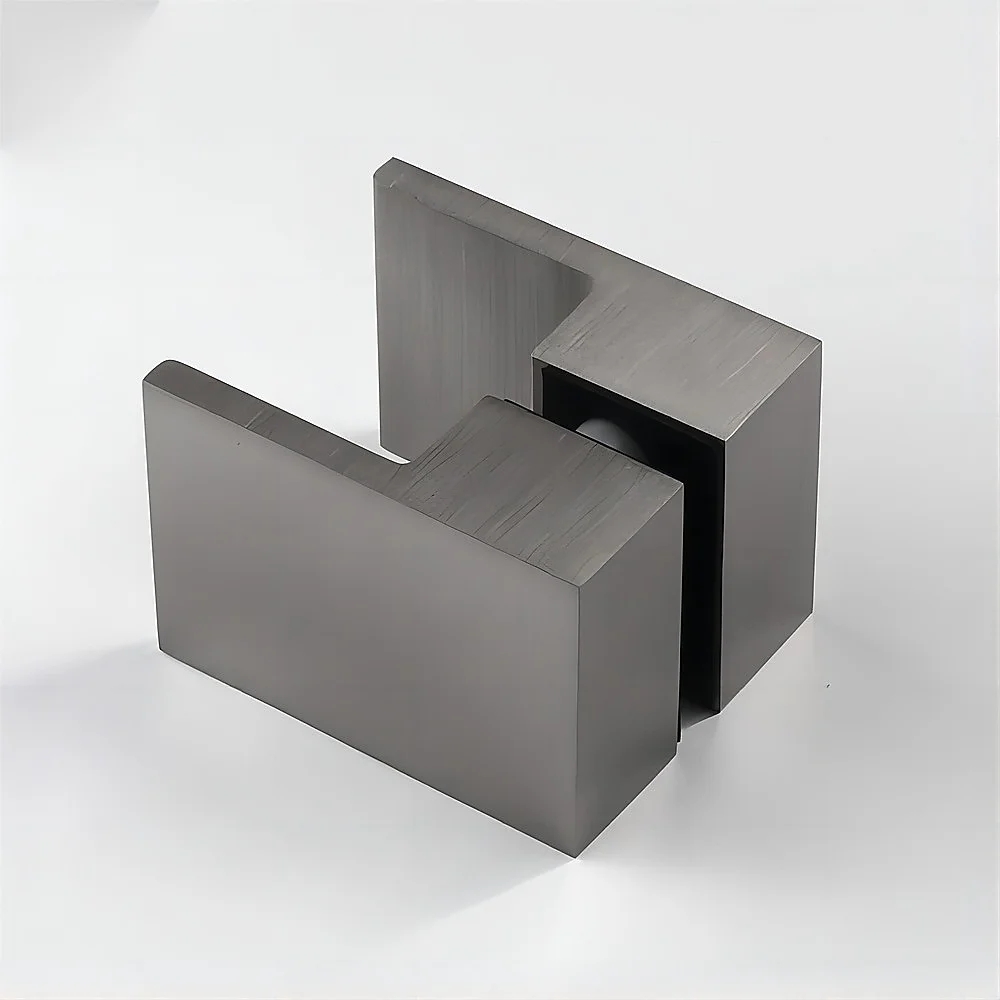

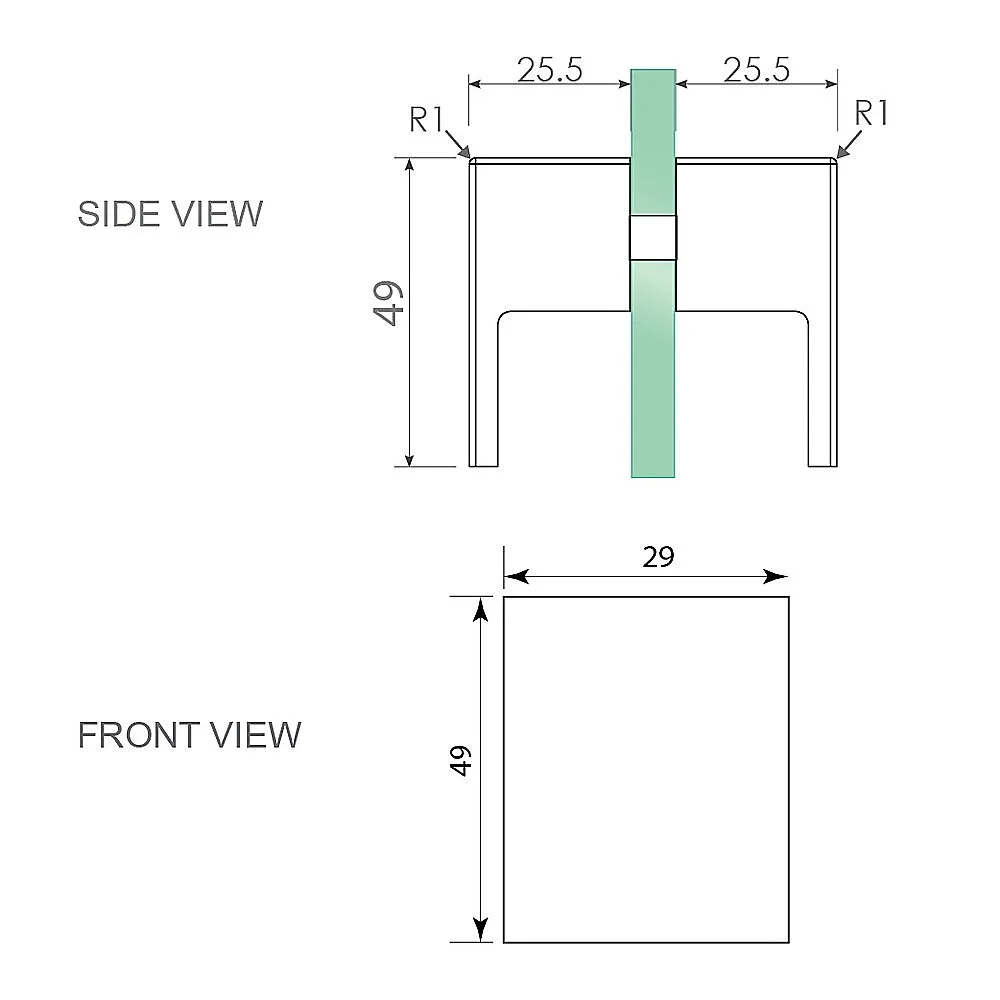

• Handle: 49mm x 25mm double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gunmetal

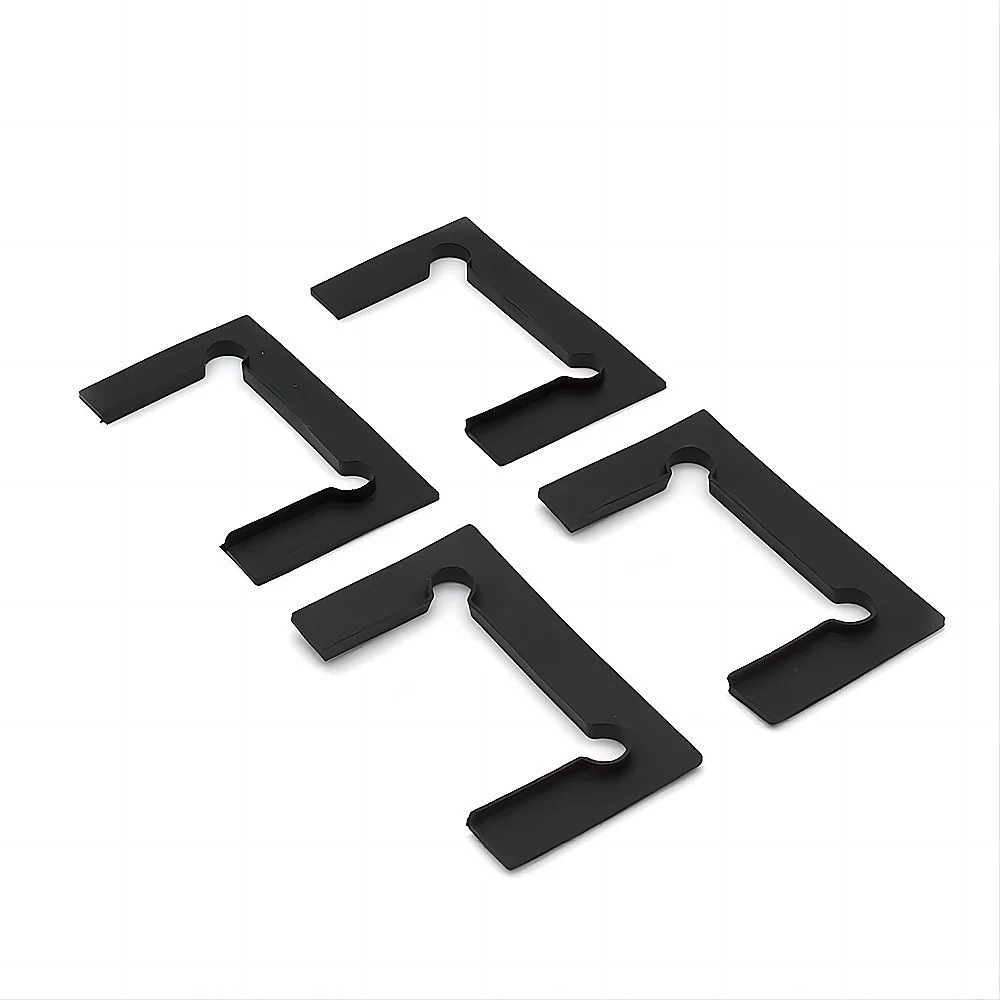

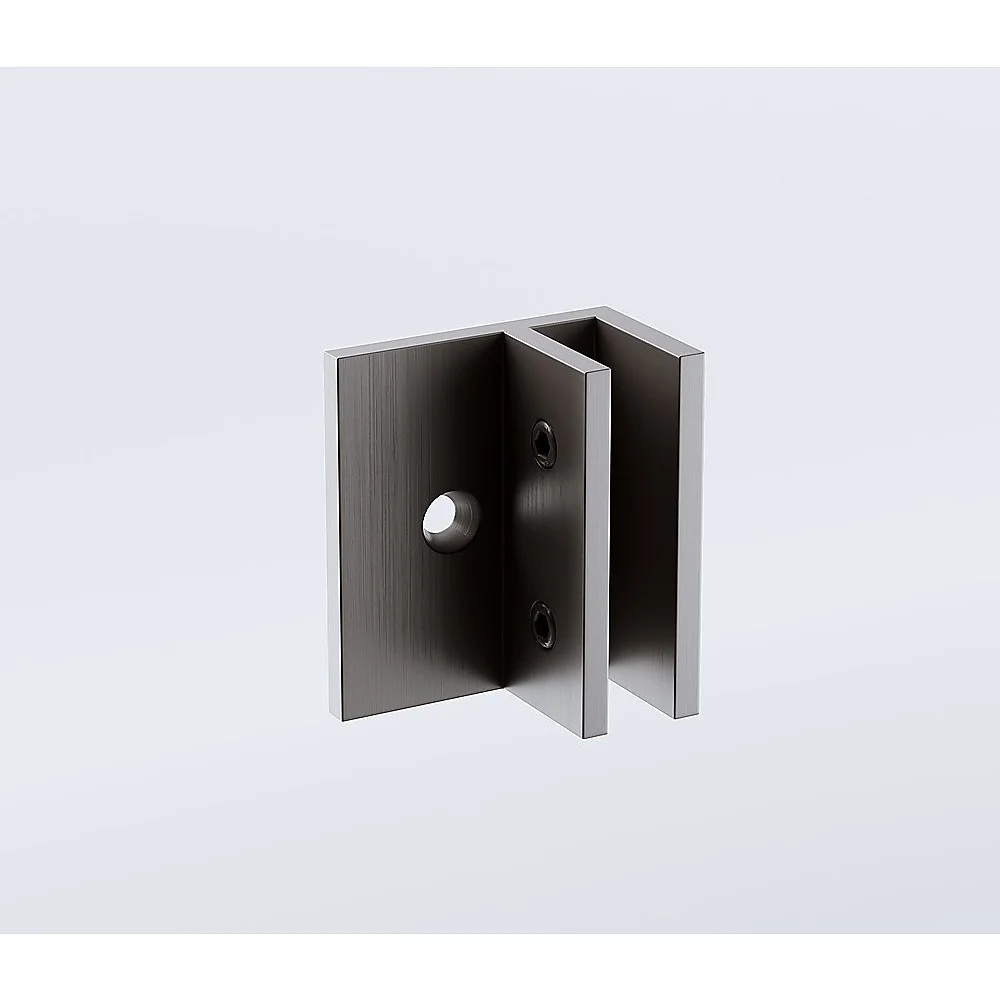

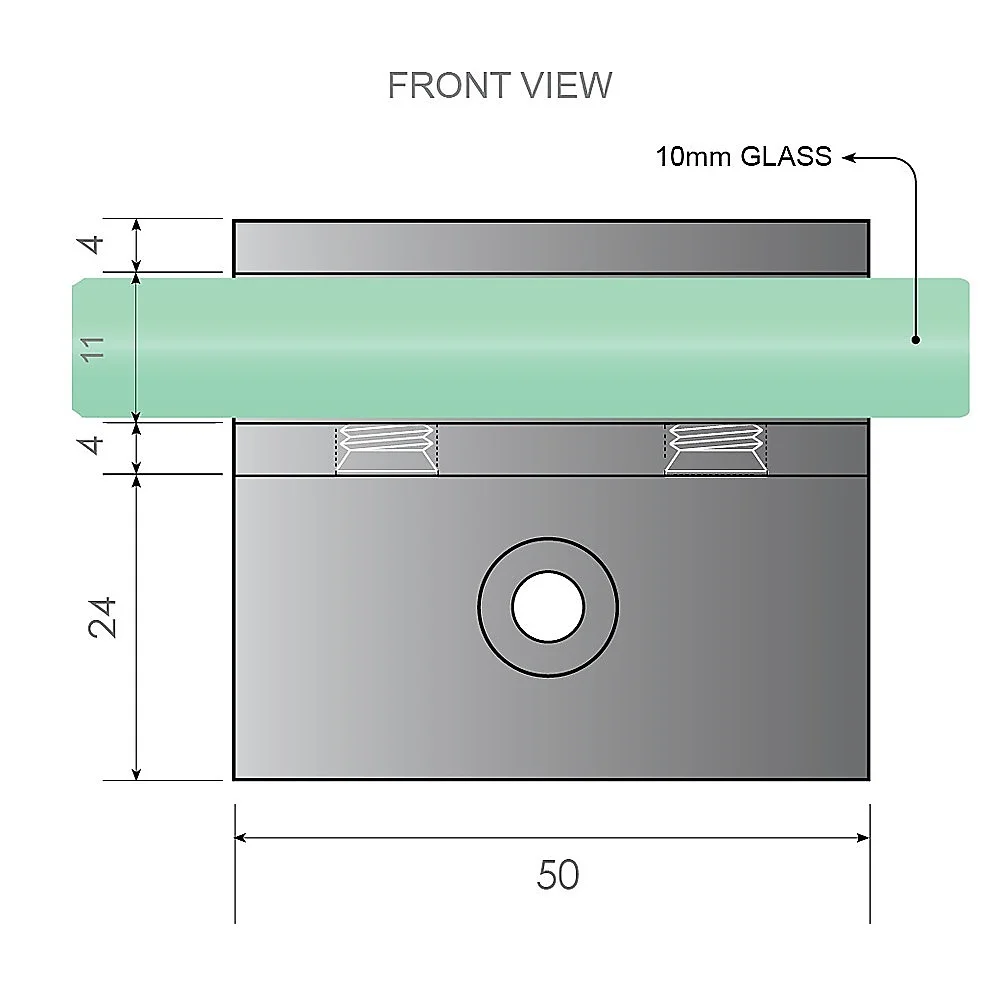

• F-bracket: for 10mm glass, solid brass, brushed gunmetal, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed panel for diamond shower screen
• 1 x 540mm clear glass hinged panel for diamond shower screen
• 1 x 135-degree glass-to-glass stainless steel square shower hinge in brushed gunmetal
• 1 x 25mm brass shower door double pull handle in brushed gunmetal
• 4 x 10mm glass-to-wall/floor offset F-brackets in brushed gunmetal

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories and are for illustrative purposes only; only the accessories and colours specified above are included.
