Della Francesca 100cm Frameless Diamond Shower Screen with Brass Hinges, Chrome

The Della Francesca 100cm frameless diamond shower screen brings a sleek, open look to your bathroom while keeping water contained. Built from 10mm toughened safety glass with solid brass hinges and anodised aluminium wall channels in a chrome finish, it pairs a minimal frameless design with durable hardware.

Key Features

• Frameless diamond corner design creates an open, spacious feel
• 10mm toughened safety glass to AS-NZS2208 standard
• Solid brass hinges with squared edges and dual-action opening inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

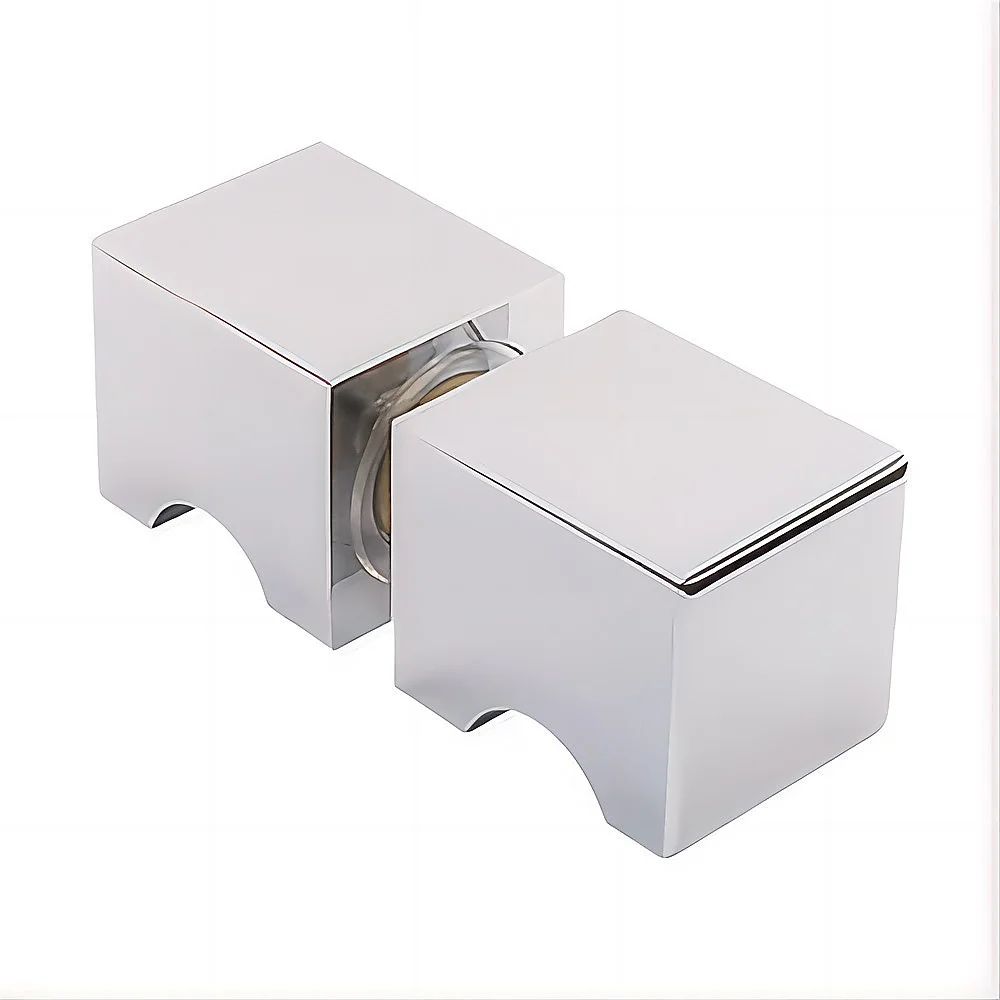

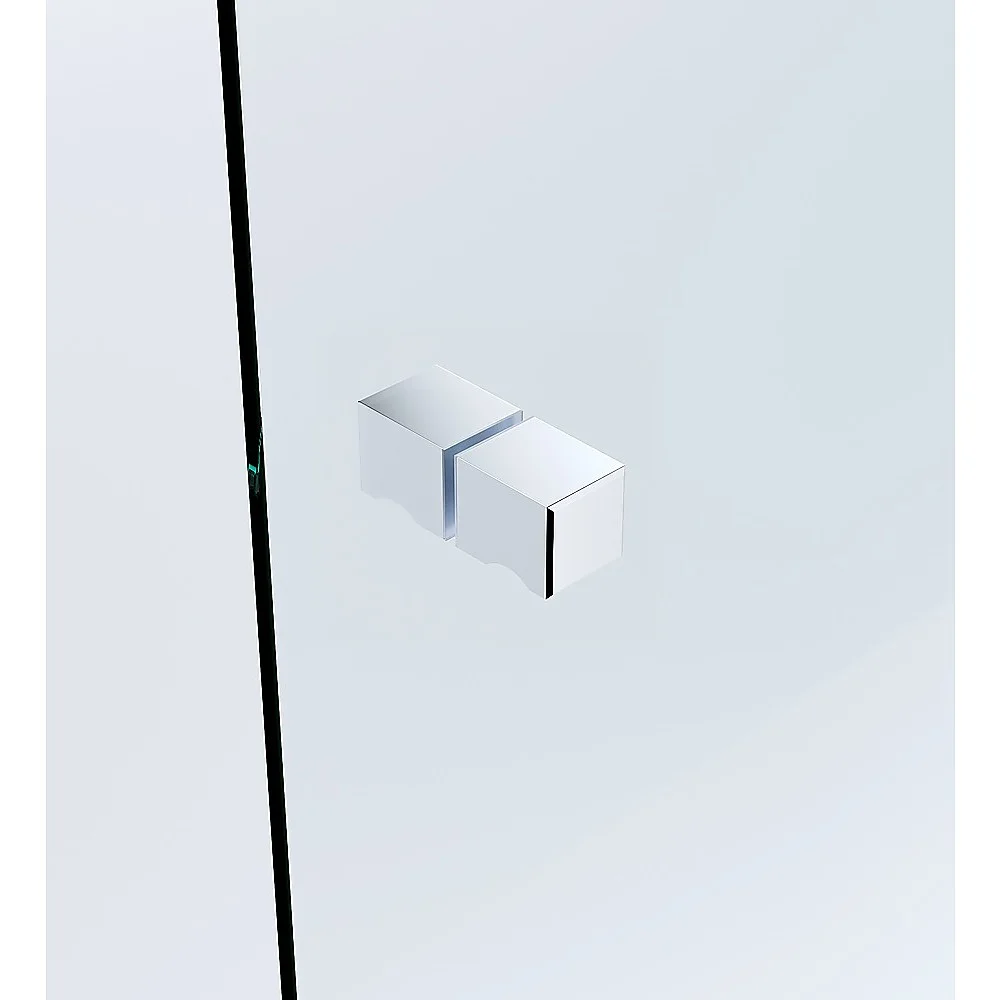

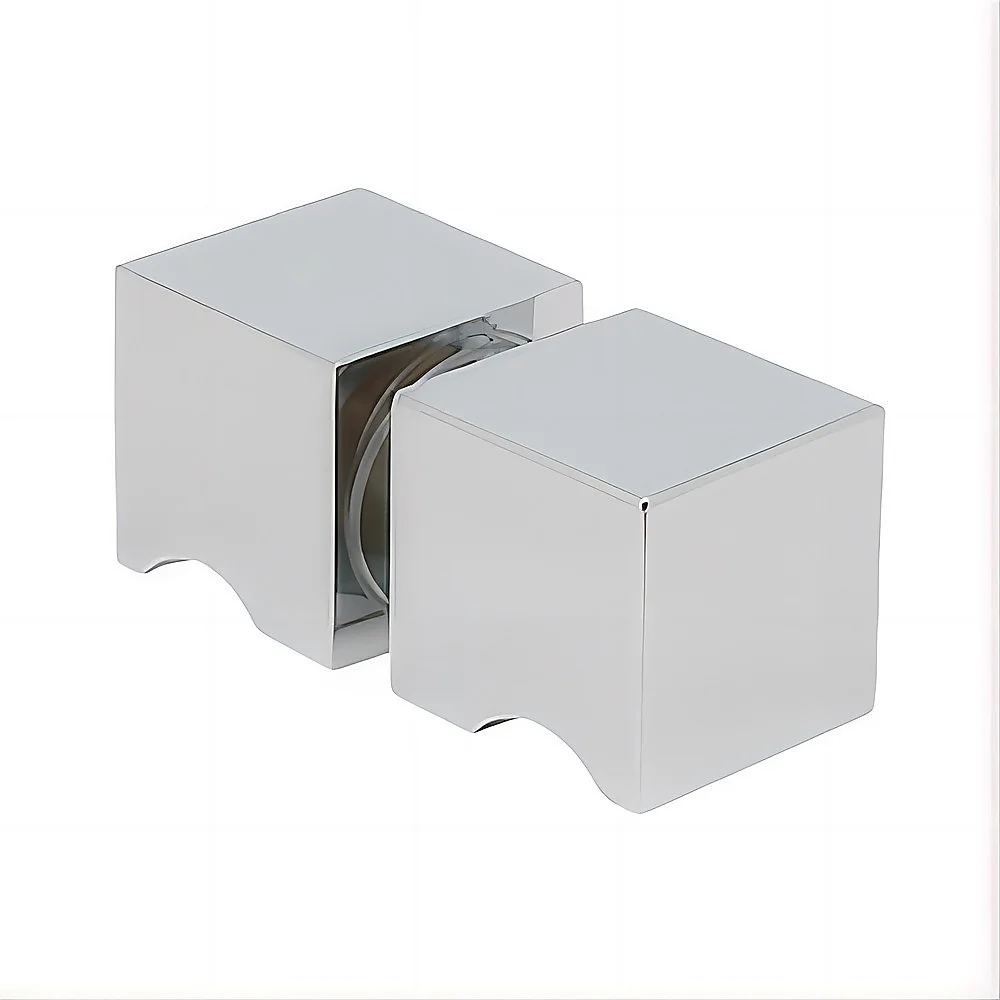

• Square knob handle in solid brass with a chrome finish
• Anodised aluminium wall channels for stability
• Handle includes plastic gaskets to protect the glass

Specifications

• Size: 100cm
• Colour: Chrome
• Handle type: Square knob
• Glass thickness: 10mm (AS-NZS2208 standard)
• Door panel: 615 x 1990mm

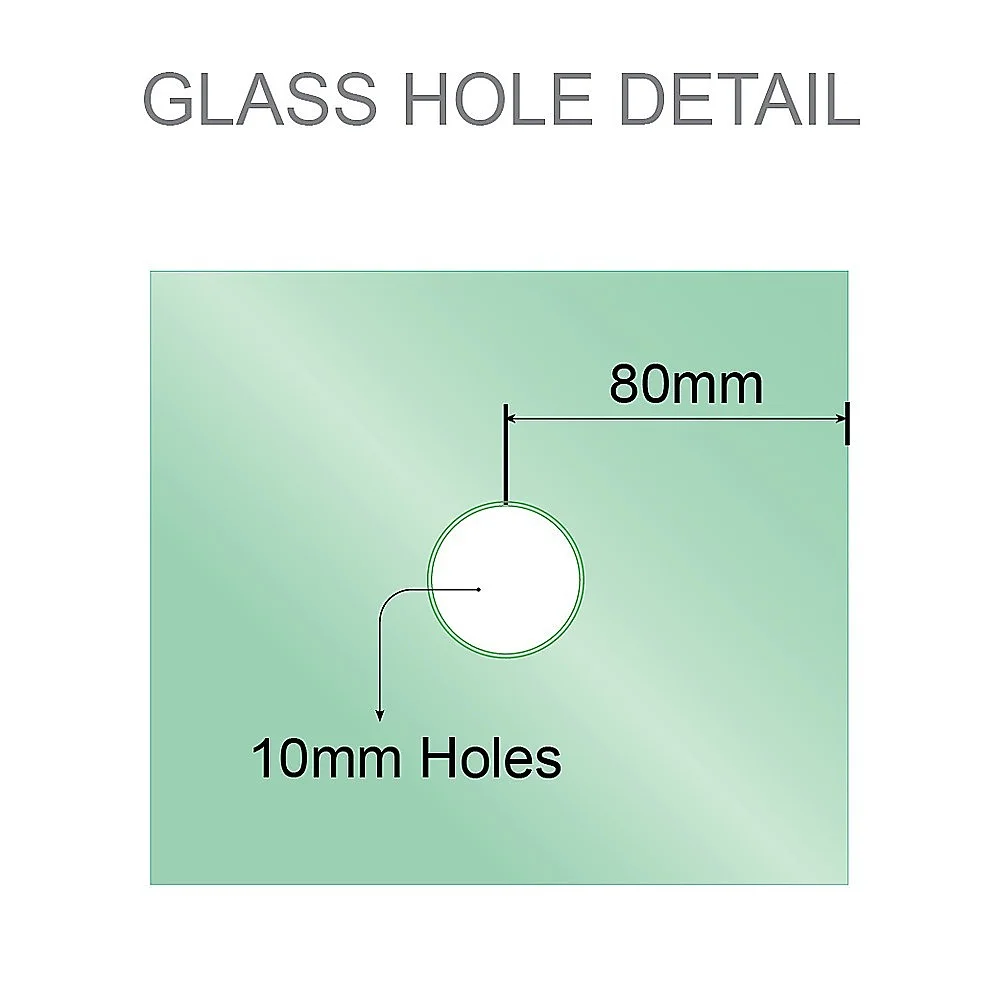

• Door handle hole: 10mm

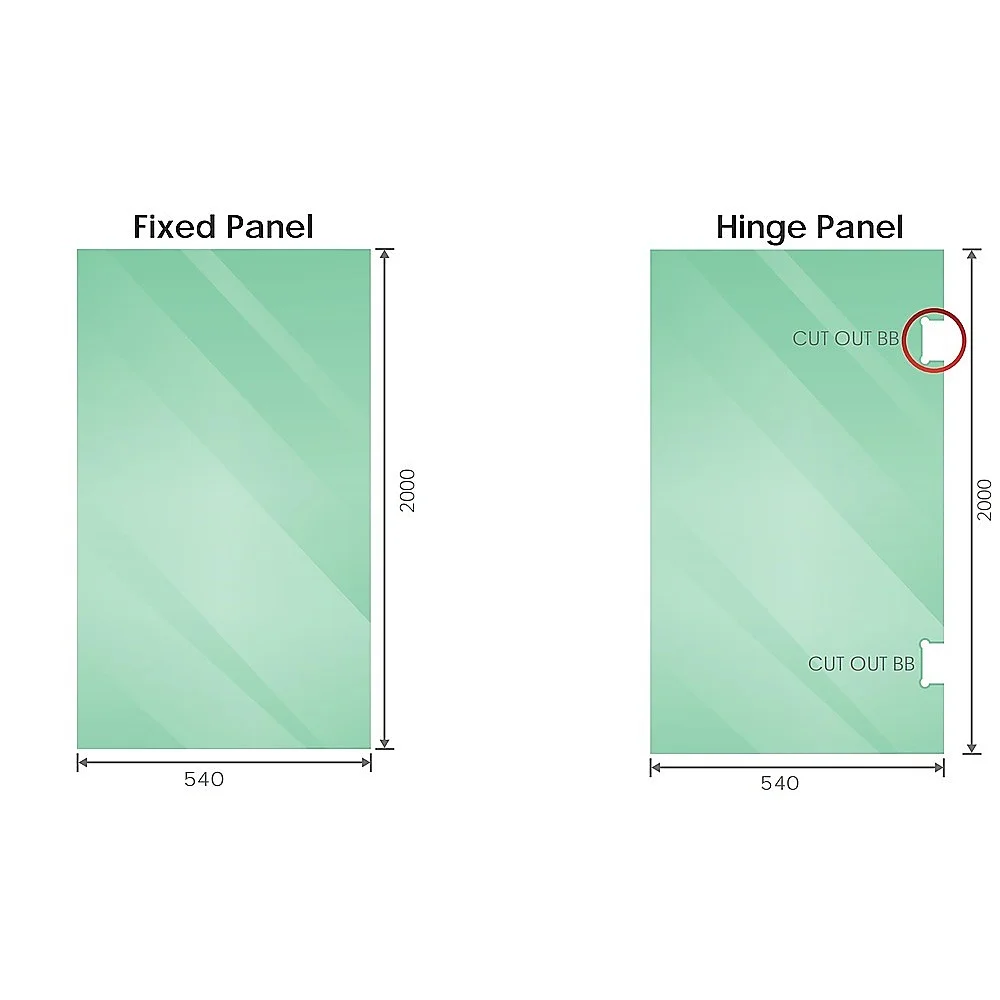

• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm

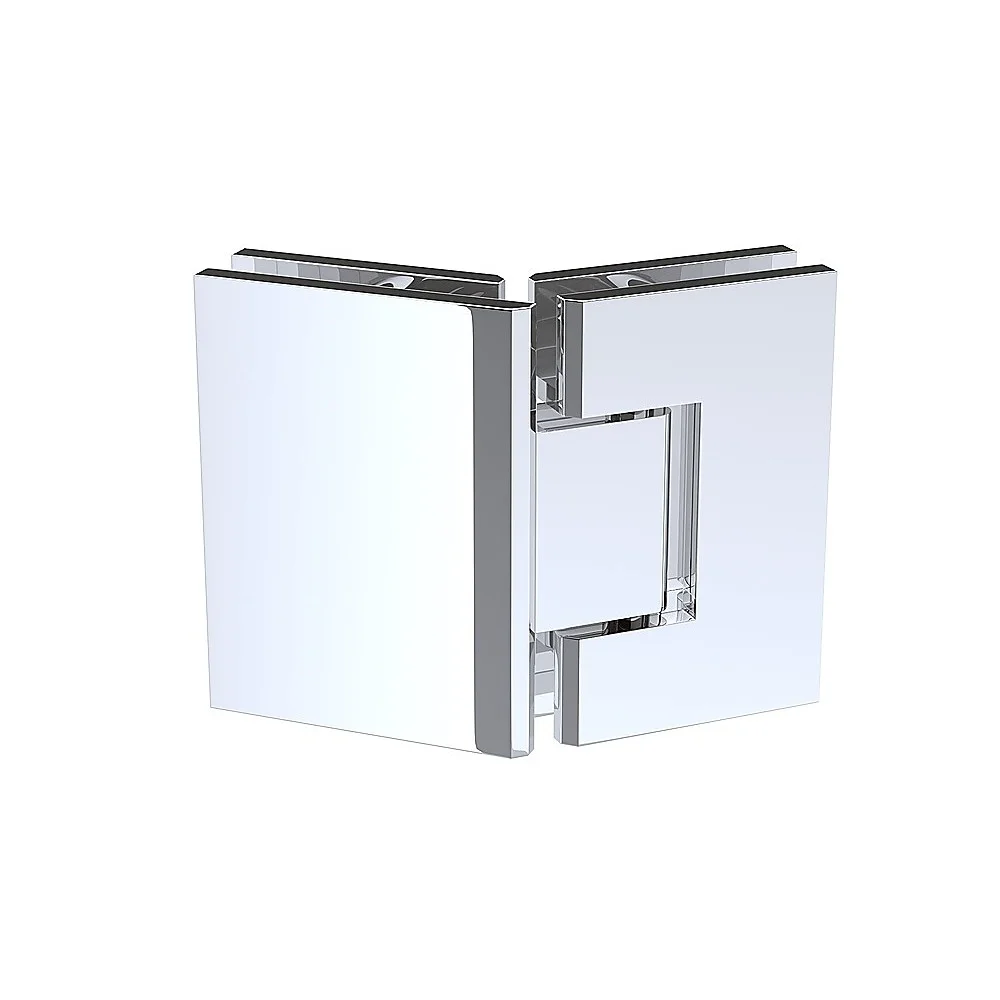

• Hinge: 135-degree glass-to-glass, suits 10mm glass, maximum weight 45kg, dual action, self-closes from 25 degrees

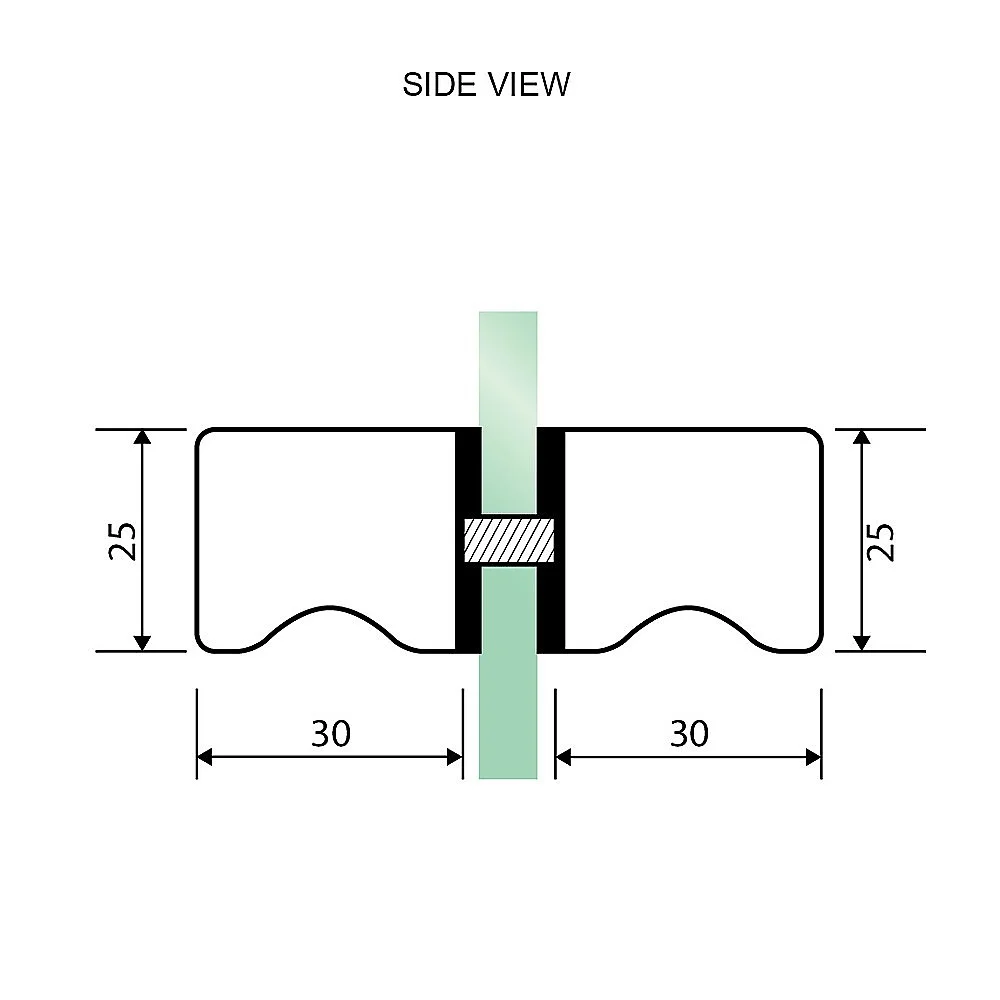

• Handle: 25mm square knob, suits 6mm, 8mm, 10mm and 12mm thick glass, solid brass, chrome finish

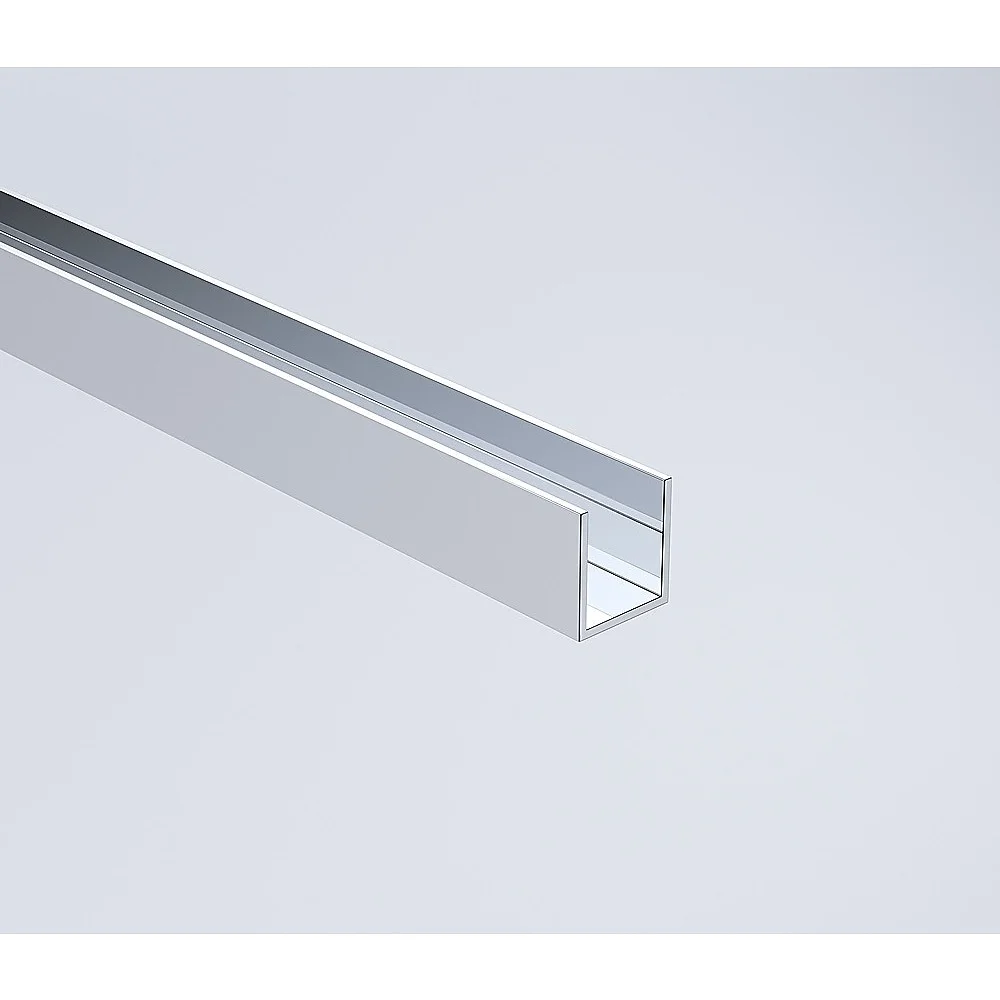

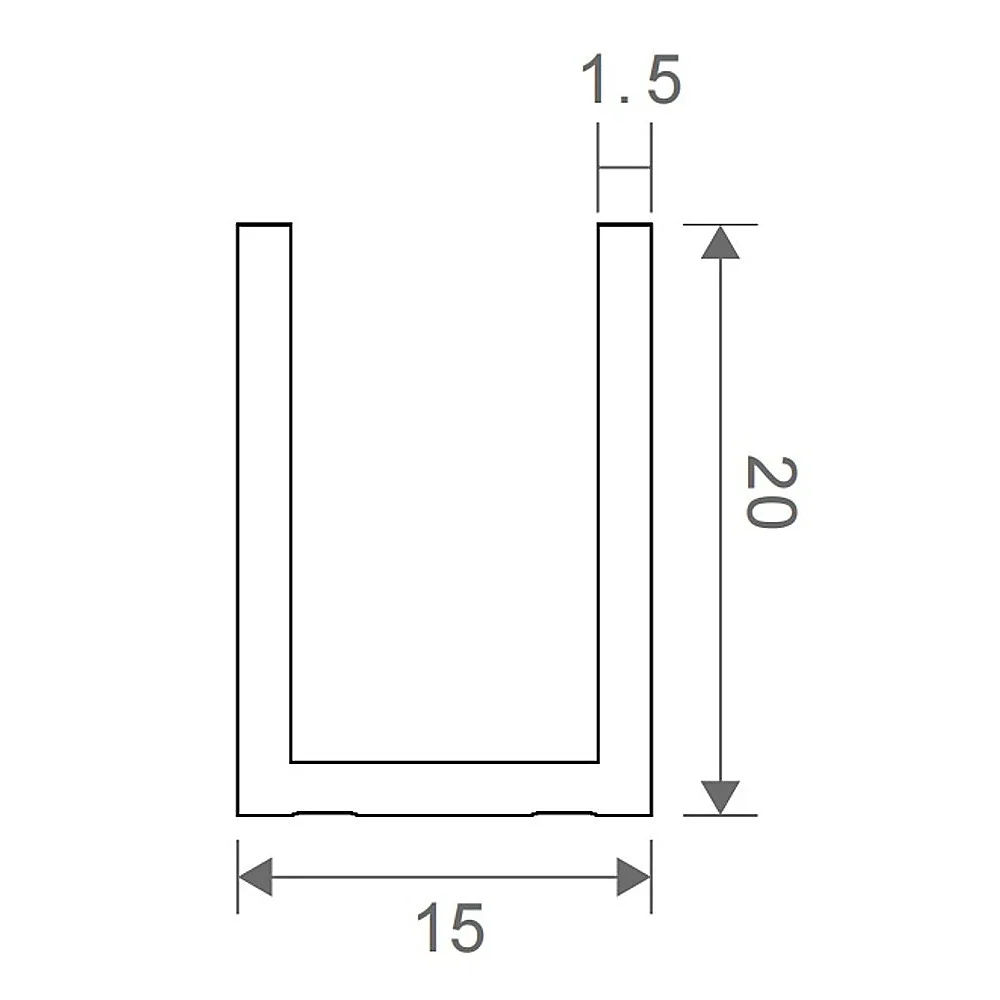

• Wall channel: 2100mm length (cut to size on installation where applicable), anodised aluminium, chrome colour, 21.5mm height, 15mm width, 1.5mm thickness, suits 10mm glass

What's in the Box

• 1 x Frameless door panel, 615 x 1990mm
• 1 x Hinged panel, 540 x 2000mm
• 1 x Fixed panel, 540 x 2000mm
• 1 x 135-degree glass-to-glass brass square shower hinge, chrome
• 1 x 25mm brass square knob handle, chrome
• 2 x Wall channels, chrome

Note: Images may show optional accessories for illustrative purposes only. Only the accessories and colour specified above are included. Colour intensity may vary from actual due to different lighting conditions.
