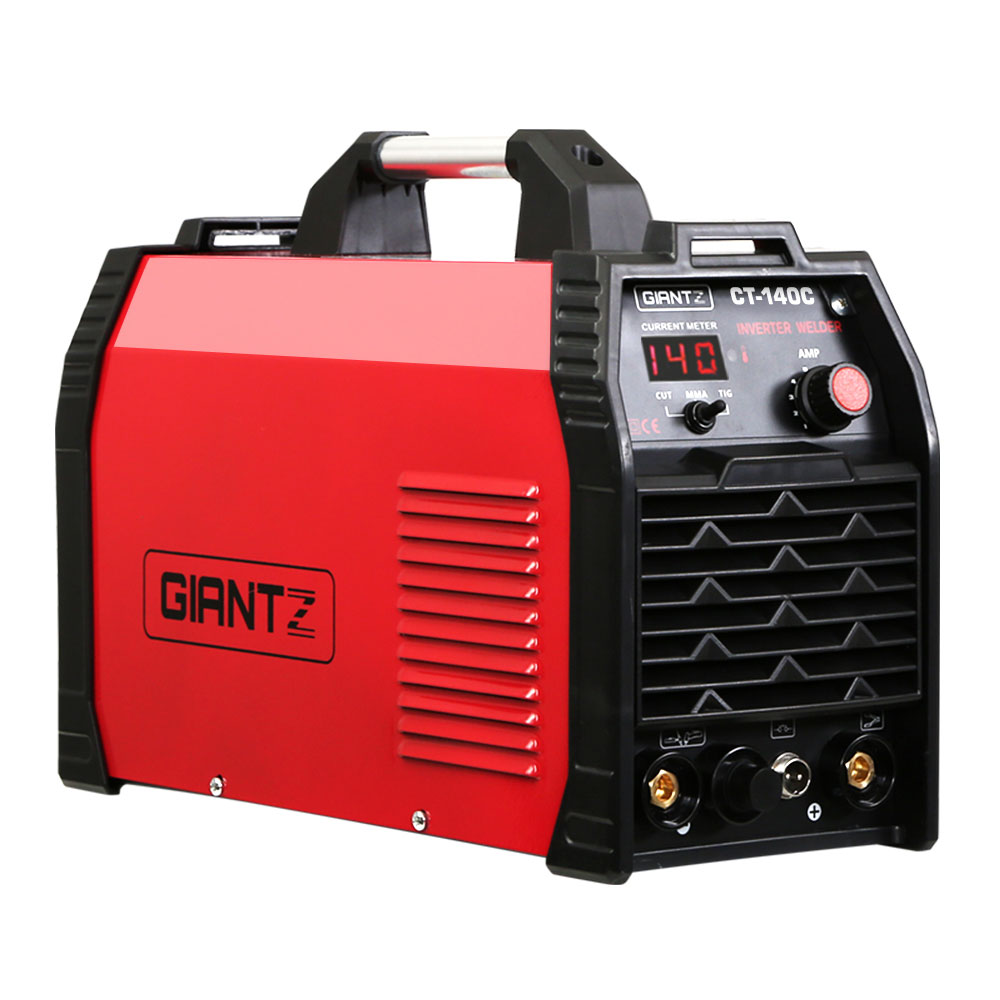

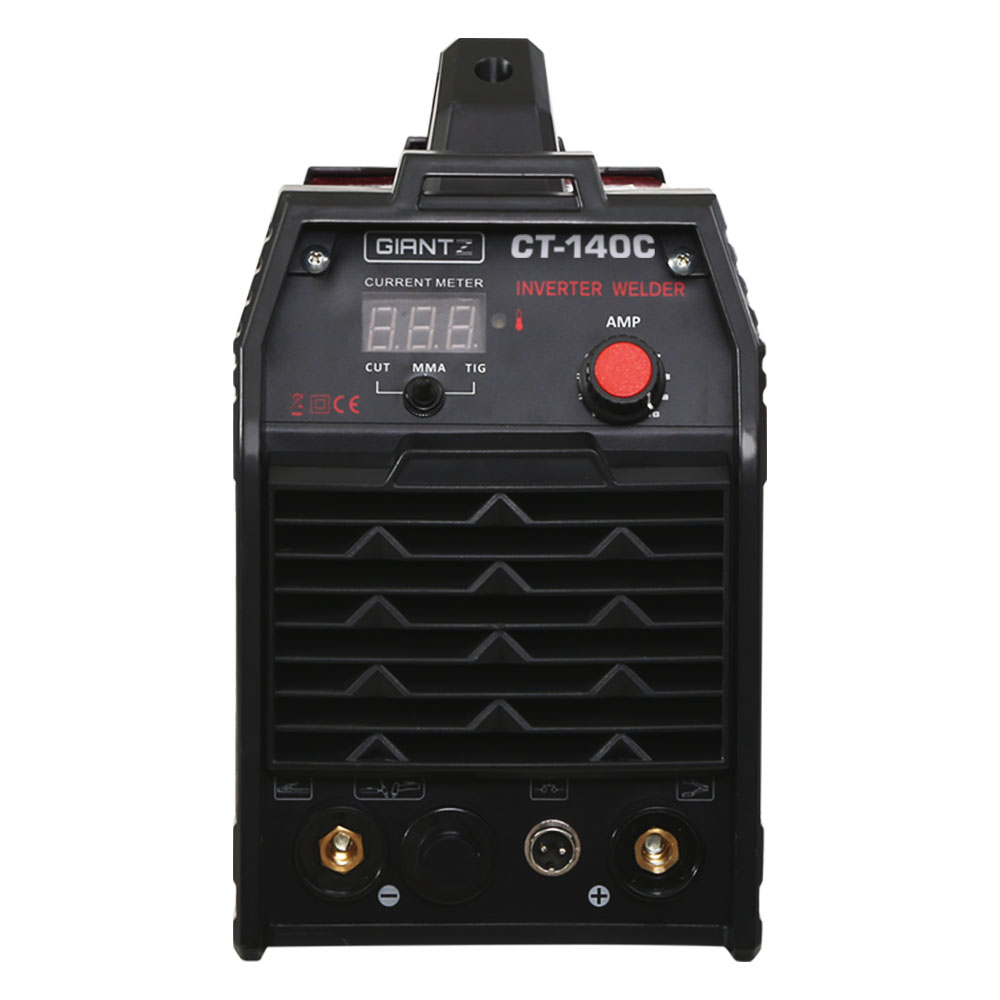

The Giantz 3-in-1 Pro-series Welder offers professional quality TIG/MMA/CUT welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 30A and 140A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The plasma cutting feature also allows for cuts of up to 12mm plate and employs HF start that allows the torch tip to be placed directly onto the work piece for a cleaner starting cut as well as more accurate cutting. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.

NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.

Features:
Multifunction CUT/TIG/MMA Welder
HF contact start technology
7kg weight
Outstanding duty cycle
Super stable arc force
IGBT inverter technology
Super stable DC inverter technology
Current stablisation and auto increase
Industry-standard DIN sockets
Adjustable output current range 30A to 140A
Outstanding 30,000 MTPF hours cooling
Overheating, over current, and over/under voltage protection
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified

Specifications:
Power Voltage: Single Phase 220-240V ±15%, 50Hz
Power Plug: 15A AU Standard
TIG (Amps/Duty Cycle): 123A @ 100%, 140A @ 60%
MMA (Amps/Duty Cycle): 123A @ 100%, 140A @60%
CUT: 20-40 Amps @ 60% Duty Cycle
Input Air Pressure: 0.4Mpa
No load power: 40W
Efficiency: 85%
Insulation Class: F
Cut Thickness: 1-6mm
Shell Protection Grade: IP21
Pilot Arc Mode: HF
Welding Electrodes: Up to 4.0mm
Plasma Torch Length: 4m
MMA Electrode Cable Length: 1.8m
Earth Clamp Cable Length: 1.2m
TIG torch Cable Length: 4m
Power Cord Length: 1.8m
Generator Recommended: 8kVA
Dimensions: 42cm x 16.5cm x 27cm
Product Weight: 7kg

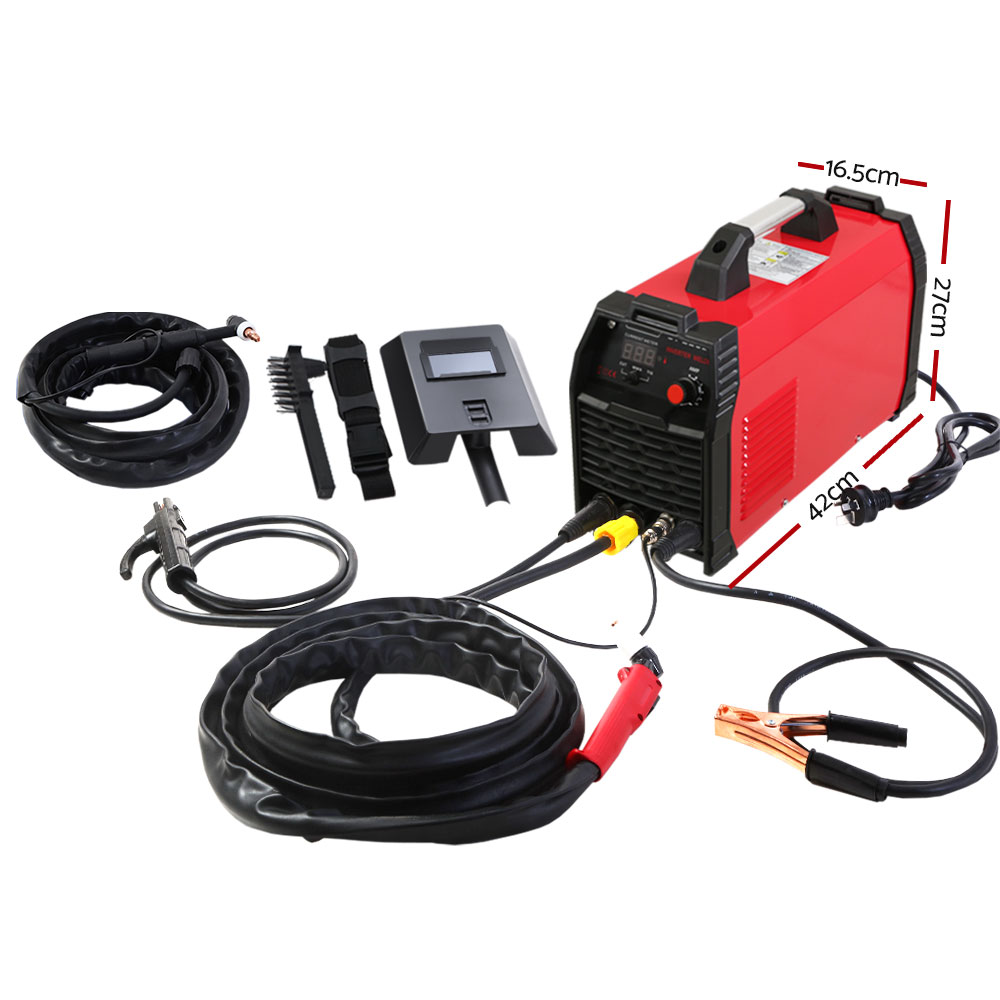

Product Contents:
1 x GIANTZ Inverter Welder
1 x Plasma torch with accessories
1 x TIG torch Lead
1 x Electrode Holder Lead
1 x Earth Clamp Lead
1 x Welding Mask
1 x Packing Bag for Touch Lead
1 x Regulator
1 x Wire Brush
1 x User Manual
