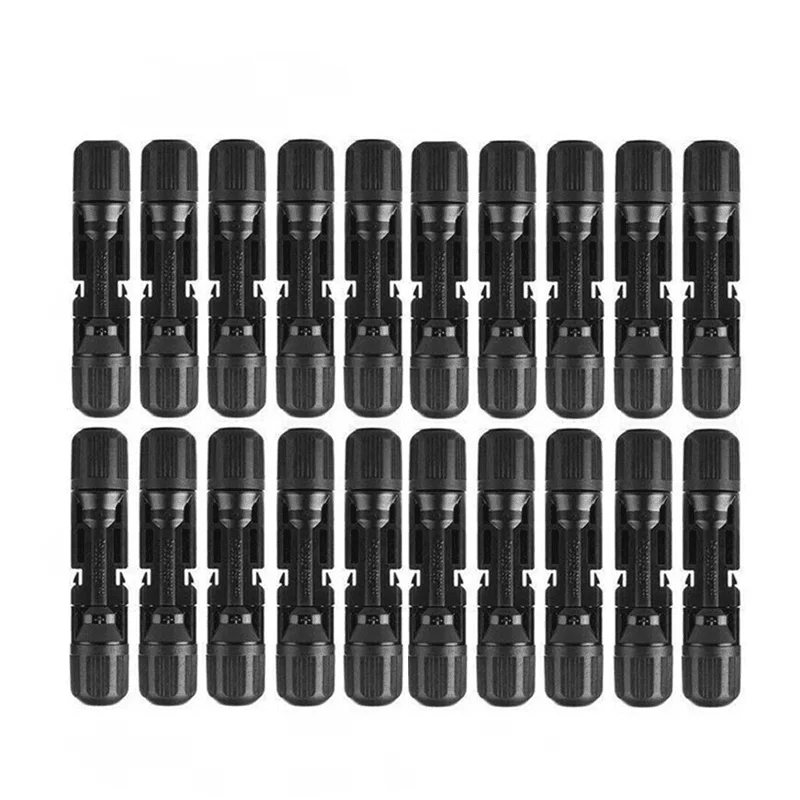

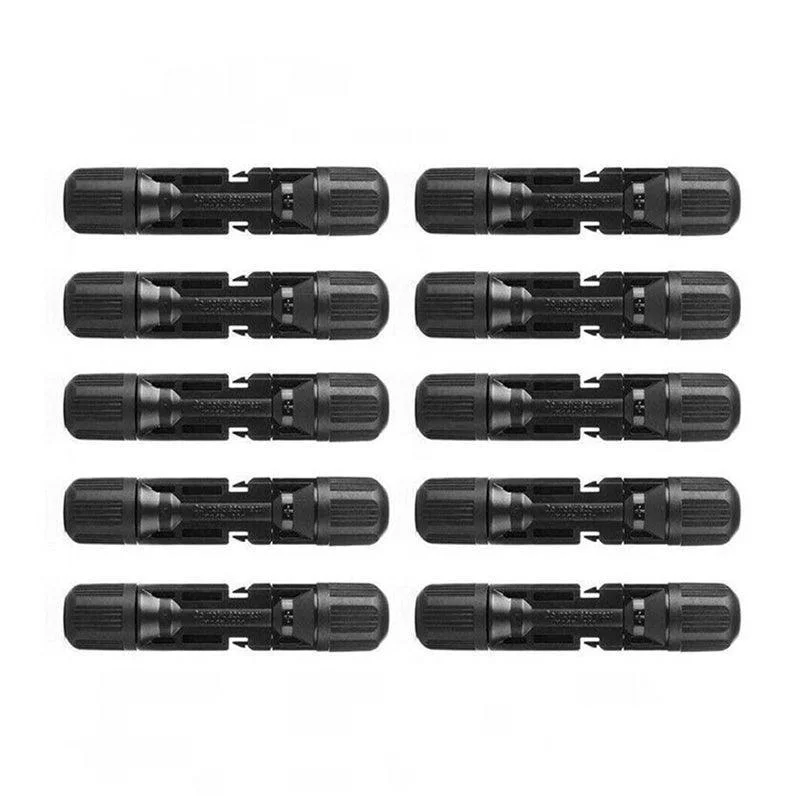

5-20 Pairs For Solar Panel Connectors Ip67 30A Line Plug Socket Male & Female Au - 20Pairs

Experience seamless and efficient energy transmission with our Solar Panel Cable Connectors. Specifically designed for high-performance solar installations, these connectors are made with precision, ensuring a tight, secure connection. Made with premium quality materials, they ensure your solar panels deliver uninterrupted power to your devices, irrespective of the climatic conditions.

Features:

• High Performance: Designed for up to 1000V voltage and 30A current.
• Durable Materials: Insulated with PPO and contacts made of silver-plated copper.
• Weatherproof: With an IP67 rating, these connectors are resistant to dust and water.
• Safety and Quality: Achieves UL94-V0 flame class and ensures minimal contact resistance.
• Temperature Resilient: Performs optimally between -40°C to +90°C.
• Versatile Use: Suitable for cables of 2.5mm2/4mm2/6mm2 sizes (AWG14/12/10).

Specifications:

• Voltage Rating: 1000V
• Current Rating: 30A (for 4mm2,6mm2 cables)
• Insulation Material: PPO

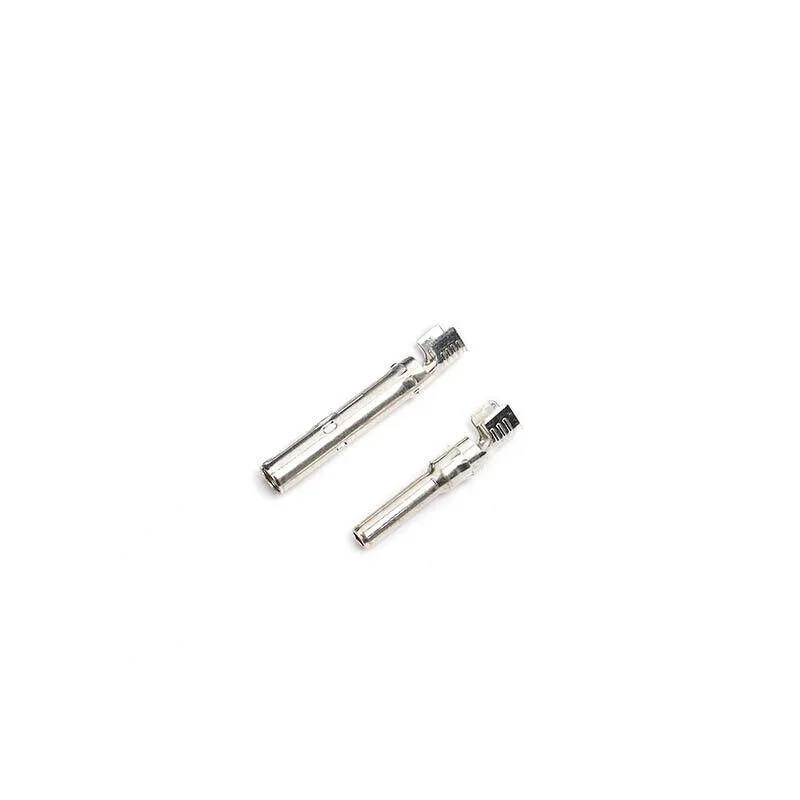

• Contact Material: Copper, silver plated
• Temperature Range: -40°C~+90°C
• Protection Degree: IP67

Package:

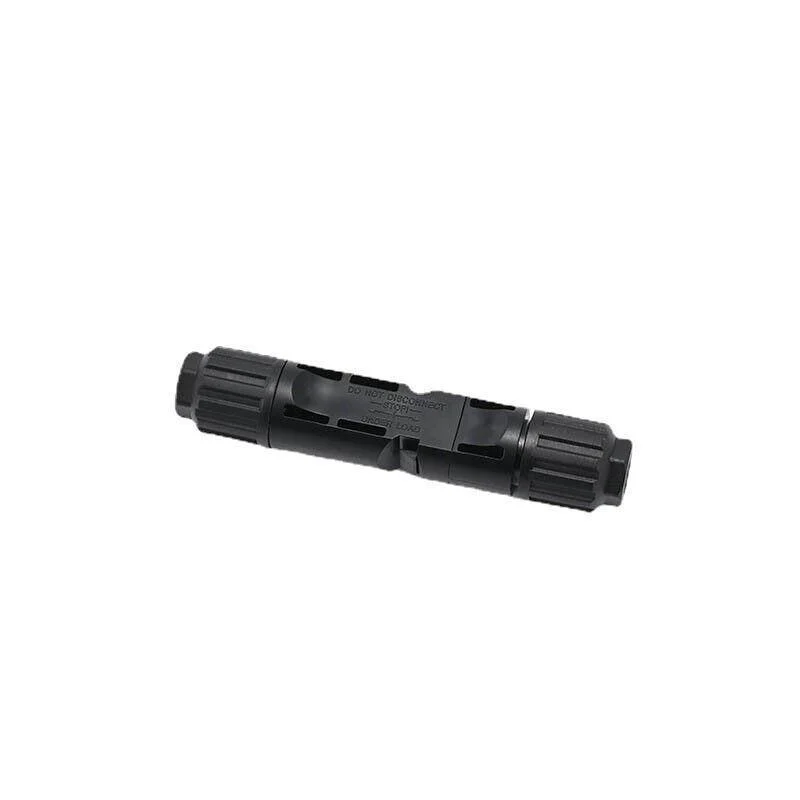

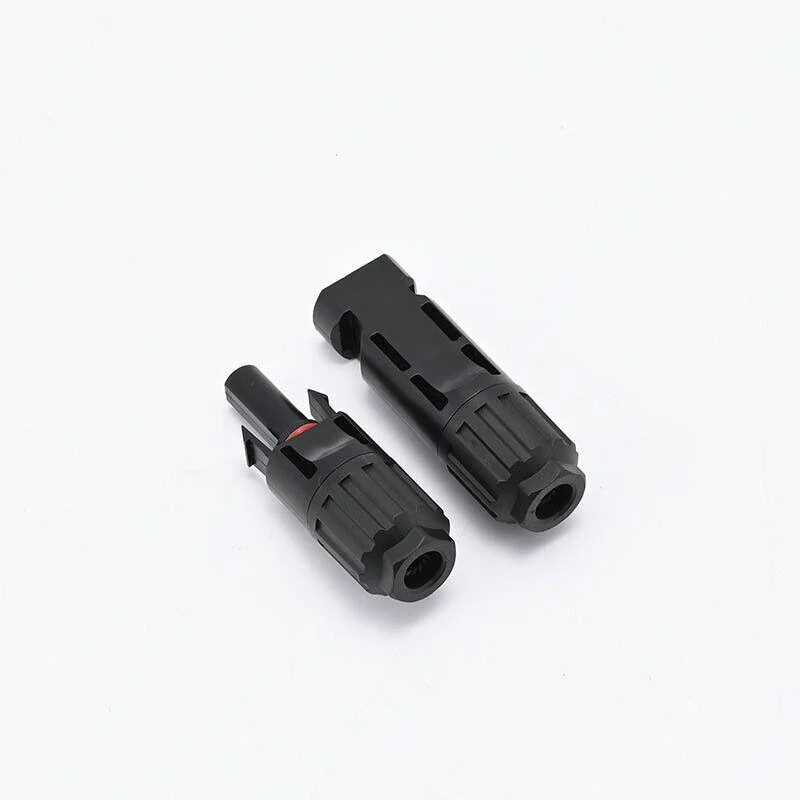

• Includes: One male and one female solar panel cable connector.

Notes:

1. Dimensions may vary slightly due to manual measurements.
2. Minor colour variations might occur depending on the lighting and screen.
